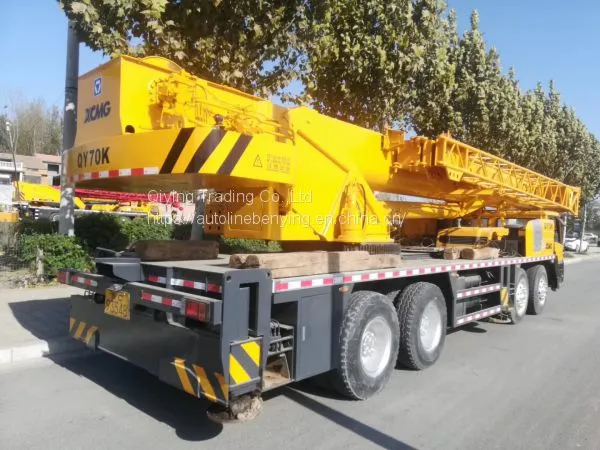

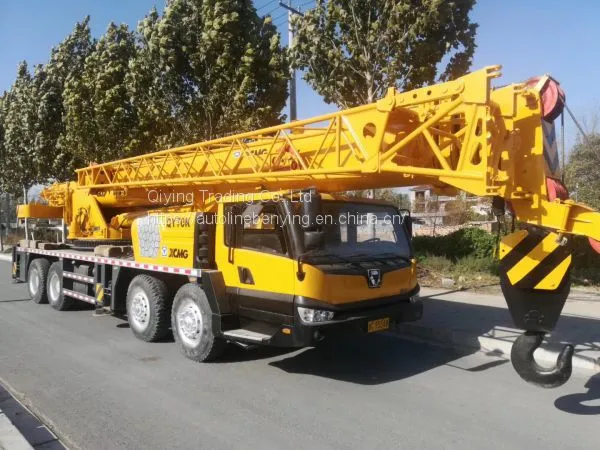

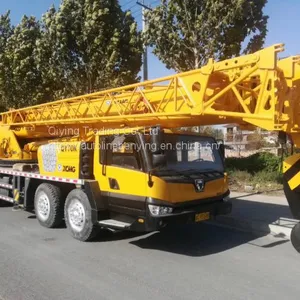

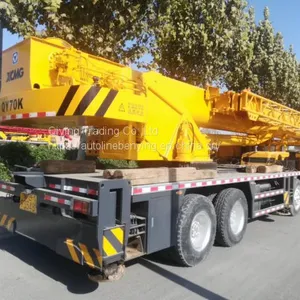

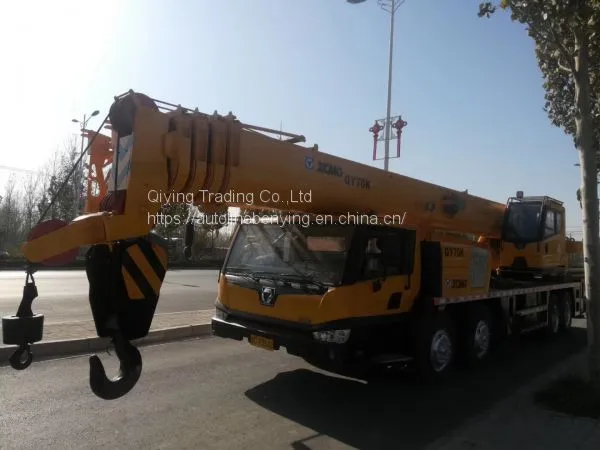

Name: Good Quality XCMG 70ton Truck Crane
Brand: XCMG
SKU: 162470105
Availability: InStock

ALL CATEGORIES

Good Quality XCMG 70ton Truck Crane

Send Inquiry to This Supplier

Mrs. Mia

salesman

Qiying Trading Co.,Ltd

Shanghai, China

* Message

0/5000

* Email

Get quotes from multiple Verified Suppliers simultaneously.

Dimension	Unit
Overall length	mm	13930
Overall width	mm	2800
Overall height	mm	3575
Weight
Total weight in travel	kg	43000(without 1t vice counterweight）
Front axle load	kg	17000
Rear axle load	kg	26000
Power
Engine model		WD615.338(domestic III)
Engine rated power	kW/(r/min)	276/2200
Engine rated torque	N.m/(r/min)	1500/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	327
Approach angle	°	19
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	70
Min. rated working radius	m	3000
Turning radius at turntable tail	m	3.55
Max. lifting torque	kN.m	2303
Base boom	m	11.6
Fully extended boom	m	44.5
Fully extended boom+ jib	m	59.5
Longitudinal outrigger span	m	6.1
Lateral outrigger span	m	7.3
Working speed
Boom luffing time	s	60
Boom full extension time	s	≤150
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope) (no load)	m/min	≥130
Max. speed of aux. winch (single rope) (no load)	m/min	≥108

Good Quality XCMG 70ton Truck Crane
