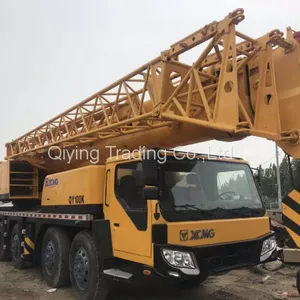

| XCMG QY100K 100TON | ||
| Dimension | Unit | |
| Overall length, width, height | mm | 15600×3000×3850 |
| Wheel base | mm | 1420+2420+1800+1420+1505 |
| Weight | ||
| Total weight in travel | kg | 54900 58000 |
| Axle load | ||
| Axle 1 | kg | 7500 7500 |
| Axle 2 | kg | 7500 7500 |
| Axle 3 | kg | 8300 10000 |
| Axle 4 | kg | 12000 12500 |
| Axle 5 | kg | 12000 12500 |
| Axle 6 | kg | 7600 8000 |
| Power | ||
| Engine rated power | kW/(r/min) | 360/1800 (306/1900) |
| Engine rated torque | N.m/(r/min) | 2200/1300 (2010/1200) |
| Engine rated speed | r/min | 1800 (1900) |
| Min. ground clearance | mm | 310 |
| Travel | ||
| Approach angle | ° | 20 |
| Departure angle | ° | 14 |
| Braking distance (at 30km/h) | m | ≤10 |
| Max. grade ability | % | 40 |
| Min. turning diameter | m | 24 |
| Fuel consumption for 100km | L | 70 |
| Main performance | ||
| Max. rated total lifting capacity | m | 100 |
| Min. rated working radius | 3 | |
| Turning radius at turntable tail | ||
| Counterweight | mm | 4200 |
| Aux. winch | mm | 4590 |
| Max. lifting torque | 3450 | |
| Base boom | kN.m | 3450(4m×88t) |
| Fully extended boom | kN.m | 1950(24m×7.1t) |
| Fully extended boom+ jib | kN.m | 1230(19.2m×6t) |
| Outrigger span (full extension) | ||
| Longitudinal | m | 7.56 |
| Lateral | m | 7.6 |
| Lifting height | ||
| Base boom | m | 13.5 |
| Fully extended boom | m | 50.9 |
| Fully extended boom+ jib | m | 70.4 |
| Boom length | m | 13.5 |
| Fully extended boom | m | 51 |
| Fully extended boom+ jib | m | 51+18.1+4 |
| Working speed | ||
| Jib setting angle | ° | 0,15,30 |
| Boom luffing time | s | 75 |
| Boom | ||
| Boom telescoping time | ||
| Full extension | s | 160 |
| Max. swing speed | r/min | 2 |
| Outrigger extension/retraction time | ||
| Outrigger beam in extension/retraction | s | 25/15 |
| Outrigger jack in extension/retraction | s | 45/25 |
| Lifting speed (single rope, layer 4) | ||
| Main winch | m/min | 105 |
| Aux. winch | m/min | 104 |

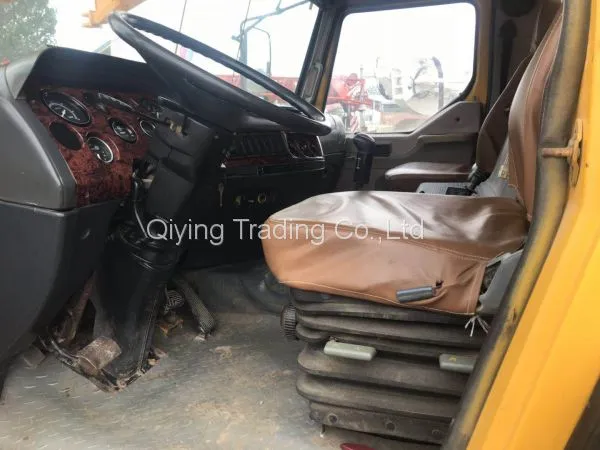

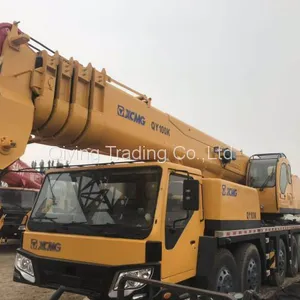

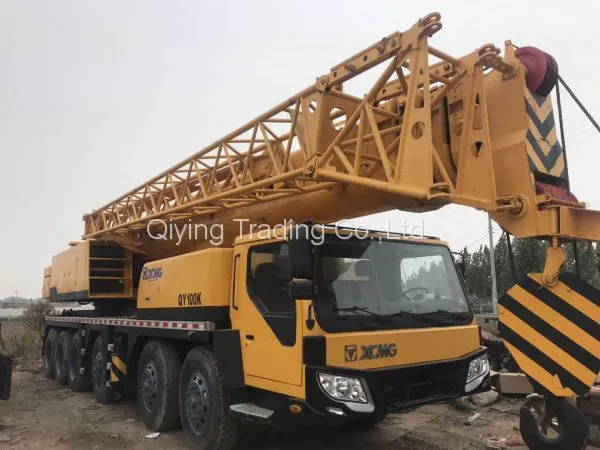

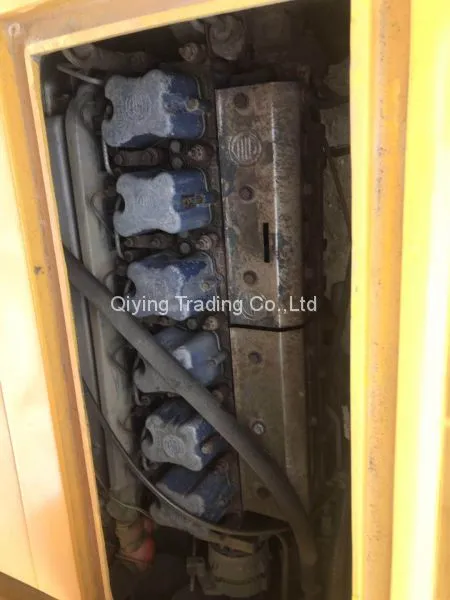

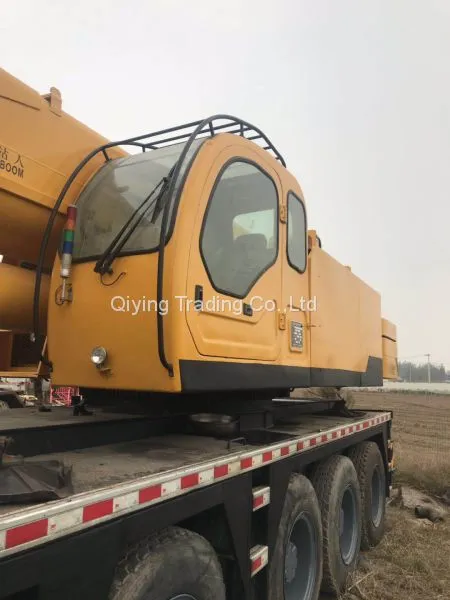

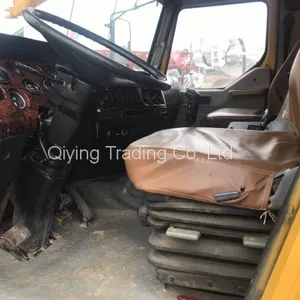

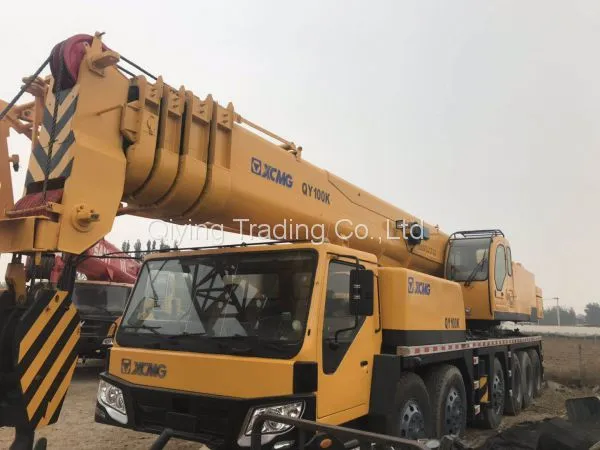

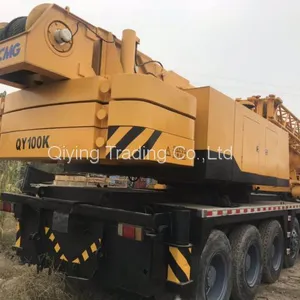

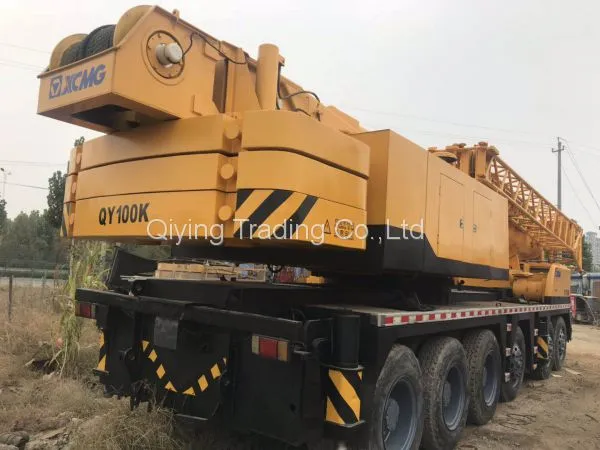

Detailed pictures
Company Introduction
We are the largest company specializing in the export of used equipment in Shanghai China. We provide crane, excavator, grader, loader, dozer, roller, dump truck, tractor, forklift..... ALL BRAND & ALL SIZE equipment. We really want to do business with customer from all over the world. If you are interested in any types of our machine, don't hesitate to contact us !
TRUCK CRANE
Japanese brand : TADANO /KATO /LIBHERR /KOBELCO /GROVE.....
Capacity : From 5T up to 300T
Chinese brand :XCMG/SANY /CHANGJIANG /ZOOMLION......
Capacity : From 20T up to 200T
Chinese brand :XCMG/SANY /CHANGJIANG /ZOOMLION......
Capacity : From 20T up to 200T
CRAWLER CRANE
Japanese brand : KOBELCO /SUMITOMO /HITACHI /IHI /LINK-BELT ......
Capacity : From 30T up to 300T
Chinese brand : XCMG /FUWA/ZOOMLION/SANY......
Capacity : From 30T up to 300T
Capacity : From 30T up to 300T
Chinese brand : XCMG /FUWA/ZOOMLION/SANY......
Capacity : From 30T up to 300T
EXCAVATOR
Chinese brand : XCMG /ZOOMLION /SANY /SDLG......
Capacity : From 3T up to 50T
Other brand : CATERPILLAR /KOMATSU /HITACHI /DOOSAN /SUMITOMO /JCB.....
Capacity : From 3T up to 50T
Capacity : From 3T up to 50T
Other brand : CATERPILLAR /KOMATSU /HITACHI /DOOSAN /SUMITOMO /JCB.....
Capacity : From 3T up to 50T
WHEEL LOADER
Chinese brand : XCMG /ZOOMLION /SANY /SDLG/ LIUGONG......
Popular model : LG956L LG936L LG953N......
Other brand : CATERPILLAR /KOMATSU....
Popular model : 950G 950H 966G 966H .....
Popular model : LG956L LG936L LG953N......
Other brand : CATERPILLAR /KOMATSU....
Popular model : 950G 950H 966G 966H .....
NEW & USED PARTS
CRANE EXCAVATOR
Brand : JAPANESE/ CHINESE &
CATERPILLAR/ KOMATSU/ KATO/ TADANO/ XCMG/ SANY.....
Parts : COMPUTER BOARD/ LIMITER SWITCH/ HYDRAULIC PUMP/ MITSUBISHI ENGINE/ SWING BEARING/ SWING MOTOR....

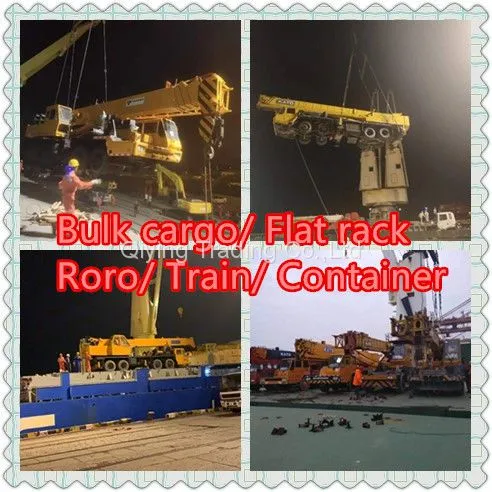

Packing & Delivery
