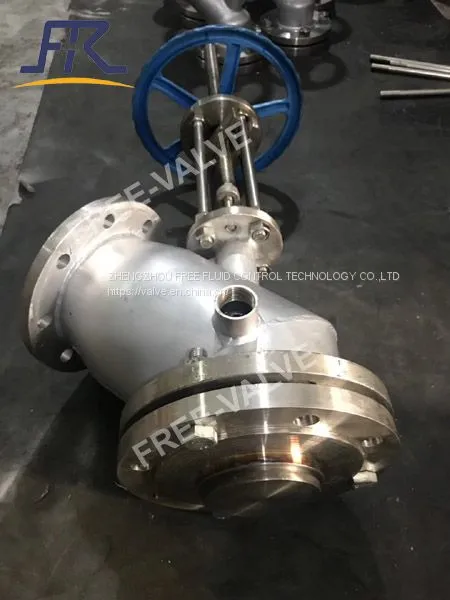

Help CenterManule Opertion Insulation Type Tank Bottom Valve Globe Valve NPS3 150Lb
Related Products
-
ANSI Industrial Pneumatic Handwheel Flat Bottom Dicharge Valve Opening Into the Tank NPS3 150Lbs CF8 BodyUS$ 600 - 10000MOQ: 2 Sets -
ANSI Industrial Pneumatic Handwheel Flat Bottom Dicharge Valve With Break Opening Into the Tank NPS3 150Lbs CF8 BodyUS$ 600 - 10000MOQ: 2 Sets
-
RF Flanged End Forged Steel Globe Valve FRZ41H PN16 A105 BodyUS$ 100 - 1500MOQ: 1 Set
-
RF Flanged End Forged Steel A105 Body Globe Valve FRZ41H PN16US$ 100 - 1500MOQ: 1 Set
-
API602 Manual Flanged Integrated Forged Steel Pressure Seal A105 F304 F316 F316L Globe Valve FRZ41H PN16US$ 100 - 1500MOQ: 1 Set
FREE-VALVE’s insulation type tank bottom angle valves adopts jacket insulation design, and it are designed for the convenient and fast discharging the material or samples from the bottom of the reactor,drain or feed vessel .The valve can be welded or installed on the vessel through the flange at the bottom of the valve , tank bottom angle valves are most commonly installed on feeding of vessels or dead space free draining and pipelines.
Features
1.This Range of manual control tank bottom angle valve is manufactured in integrated structure.
2. Structures with disc opening into the tank and disc opening into the valve.
3. Available with 45°,50°,90° degree outlet angle in the body.
4. A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.
5.The protection plate makes for the outstanding erosion resistance and corrosion resistance of the valve body.
6.The sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide. The auxiliary line sealing guarantee the reliability of the sealing performance.
7.Easy to realize the remote control or the local control with solenoid valve.
8. Insulation type tank bottom angle valve adopts integral jacket structure design, more effective insulation or cold.
9.The jacket is made of carbon steel or stainless steel which is more resistant to pressure and stronger than casting.
Technical Parameters
1. Flange connection:ASME B16.5,GB/T9113
2. Design standard:ASME B16.34
3. Pressure Range:Class150~Class300
4. Size Range:DN50~DN 350, NPS2 ~NPS14
5. Material:carbon steel, stainless steel
6. Connection type:Flange
7. Working Temperature:≤425℃
8. Operating Type:Pneumatic, manual, electric
9. Sealing surface material:Alloy
10. Pressure test:GB/T13927, API598
Applications
FREE-VALVE’s insulation type tank bottom angle valves have good thermal insulation characteristics, and can effectively reduce the heat loss of medium in the pipeline.So set a jacket connection on the side and bottom of the check valve, Connections are used for steam in and out, thus keeping the tank bottom valve warm and ensuring proper circulation of the viscous media. So the valves are mainly used in chemical, petroleum, pharmaceutical and other industries in the system pipeline, the main role is to transport the medium which will be solidify and be easy to crystallize at room temperature.
Model:FRBFb645Y
Origin:China
Price terms:FOB,CIF,FCA,CFR
Price:600-15000USD/set
Wechat ID:FreeValve
Email:sales@free-valve.com
