Cleaning machine /NTC Diesel Fuel Tank Cleaning Tester

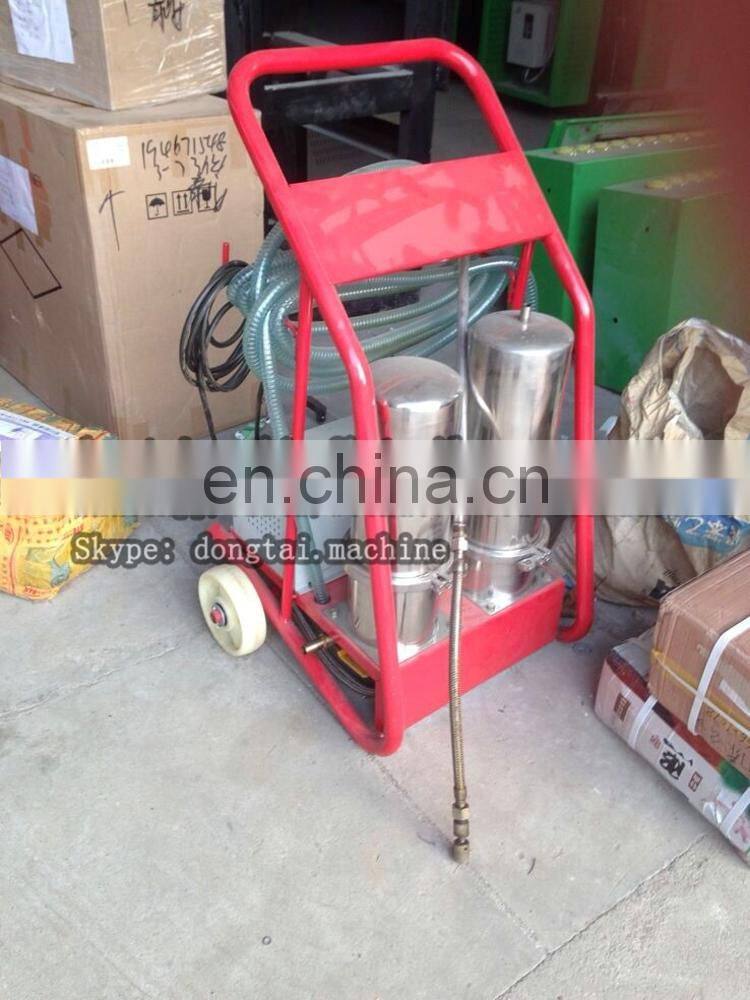

NTC diesel fuel tank cleaning tester

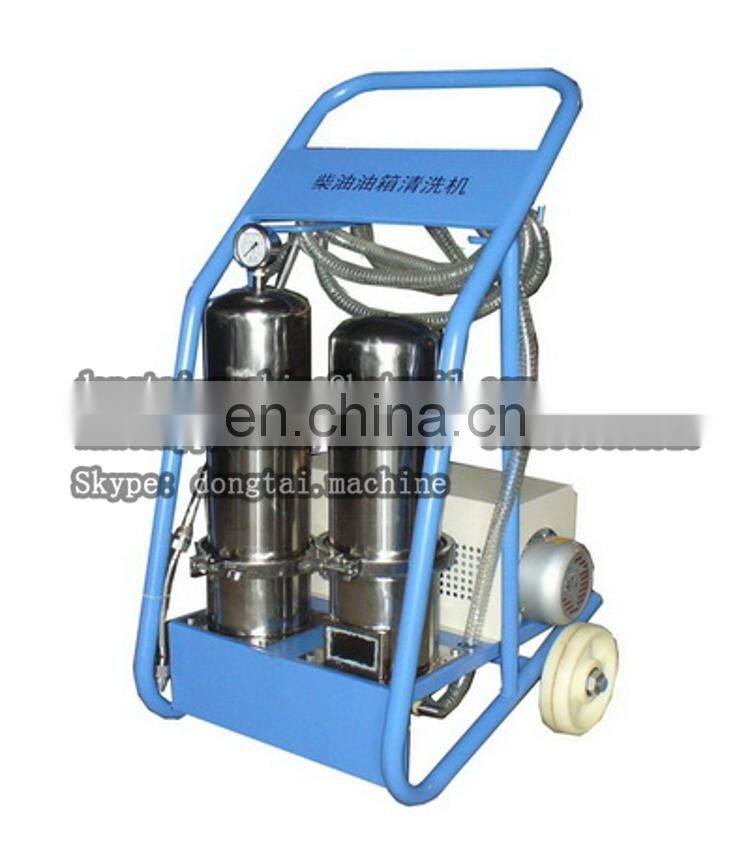

NTC diesel fuel tank cleaning tester  is suitable for cleaning various models of diesel fuel tank. This product design is unique, leading technology, simple operation, and can effectively remove impurities and water.

NTC cleaner is suitable for all models of diesel tank.
When washing machine tank, do not need to be demolished the fuel tanks and pipes , which working principle is to control oil pipe extract diesel from tank,

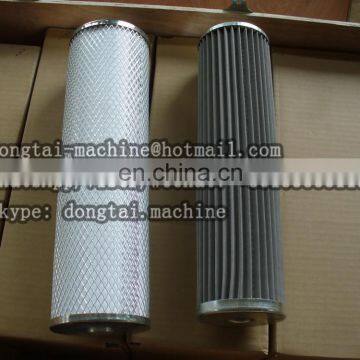

Coarse filter into the tank to the primary filter, large particles will filter out the impurities and water, then pressurized by a gear pump into the fine filter can be small
Particles through the deep filter filter out impurities. Filtered through two clean diesel to 1.5 kg of pressure from the high-pressure nozzles spurt
Tank side chamber and dead ends, will the tank with the magazine and muddy to 30 liters per minute of traffic circulation and filtering. End of oil
Boxes and clean up the diesel tank.

Method 1; direct circulation cleaning method
1. The nozzle bent right angle, through the diaphragm into the side hole on the cavity
2. The pumping tubing inserted in the tank and cleaning the lowest point or angle of the side chamber holes
3. Switch on the power, the switch to clockwise, that is, normal cleaning washing machine direction
4. Handheld spray bar, with a focus on spray nozzle wall and the dead tank
Method 2: emptying cycle of cleaning
1. To clean the container into the fuel tank below to open the mailbox at the bottom of oil discharge screw, diesel full release
2. Will take the oil pipeline into the container, the injection tube into the mailbox
3. Switch on the power, the switch to clockwise
4. Back and forth moving fuel injection dry, dry the bottom of the fuel injection nozzle is fully clean every corner of the tank, focusing on the inner wall of the tank cleaning
And dead ends.
