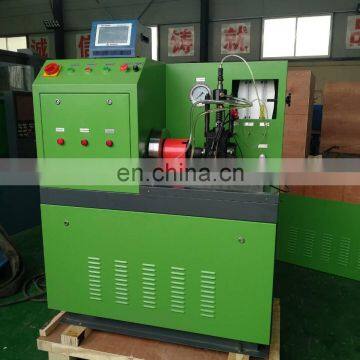

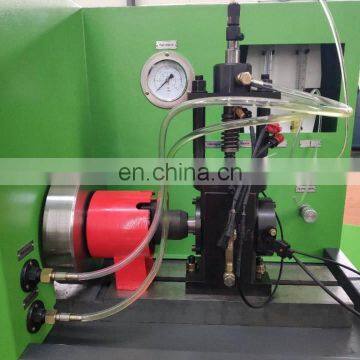

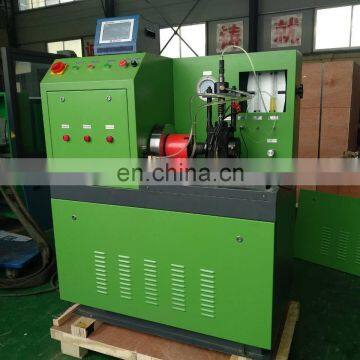

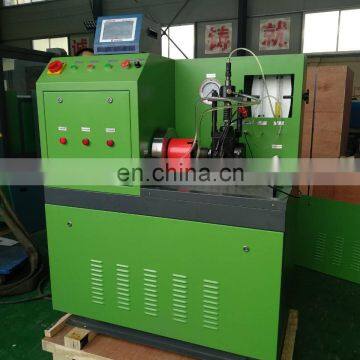

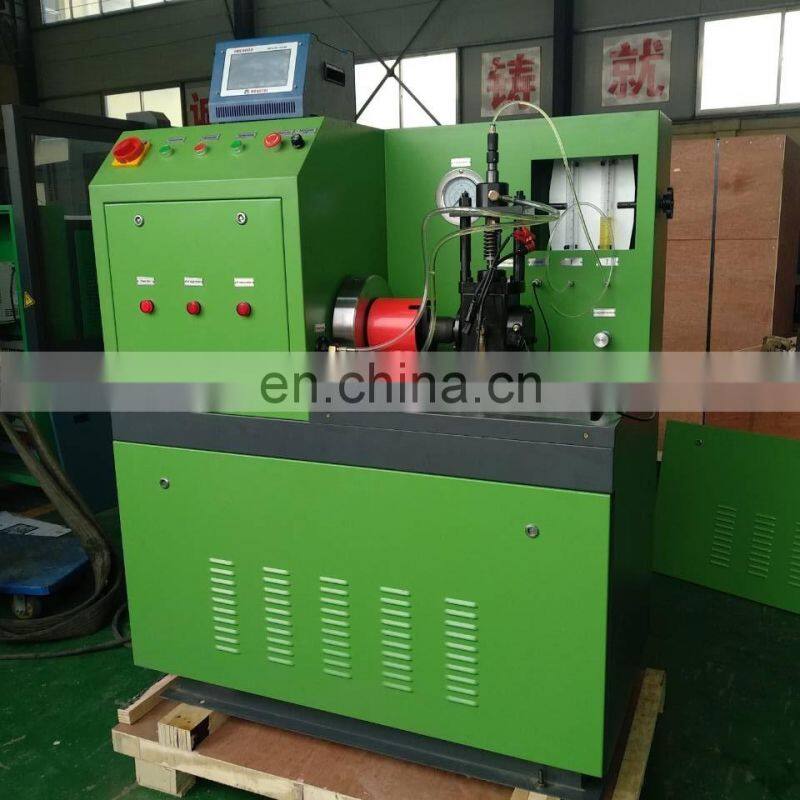

EUS1000L EUI EUP common rail diesel fuel injector pump test
1.Product description
Diesel fuel injection pump test bench is a kind of fuel injection pump test bench adopt industrial pc with color CRT, It's the newly researched production for the direction of high power and safety to the environment. It has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates ,it's really human-machine dialog. This series test bench adopt high quality frequency conversing device and cast iron base supper size bed, and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, It is advanced products.
2.Technical characteristic
| adjustable rotation speed range |
0~4000rpm | Rack travel range | 0~25mm |
| Double series of graduates | 45/150CC | 3-phase power supply | 380V/50Hz or on request |
| Volume of oil tank | 100L | Flywheel inertia’s moment | 0.8kg·m2 |
| Temperature stabilization | 40±2℃ | Center height | 125mm |
| Test oil filtering unit | 5μ | Output power | 7.5kw~15kw |
| DC. Supply | 12/24V | Overall dimensions | 200X90*170CM |
| Feed pressure | 0~0.4MPa (low), 0~4MPa | Net weight (kg) | 1000 |
| Air pressure (MPa) | 0.03~0.3 | Average trouble-tree working time of test stand | ≥2500h3.Details |
3.Details
