Common Rail Test System CRS300
CRS300 is used to test common rail pump and injector.
It can be mounted on the convential test bench.
It adopts Bosch original common rail pump to provide 0~2000bar of rail pressure.
It can test common rail pump and injector of Bosch, Siemens,Delphi,Denso.
If you have a traditional test bench like 12PSB series and want to test common rail pump and injector, you can select our CRS300 Common Rail test System.
Characteriestic
1. Drive signal can be controlled.
2 Protection of short-circuit.
3 Rail pressure can be tested in real time, it contains high-pressure protection function.
4 Pulse and Frequency of the injector drive signal can be adjusted.
5 Injection time can be settled.
6 Computer dispaly.
Common Rail Pump | |
1. Test brands:BOSCH,SIEMENS,DELPHI,DENSO. | 1. Test brands:BOSCH,SIEMENS,DELPHI,DENSO. |
2. Test six pieces of injectors at a time. (optional) | 2. Test the double plunger HP0 pump of DENSON. |
3. Test the pre-injection of high-pressure common rail injector. | 3. Test the sealing of common rail pump.
|
4. Test the max. oil quantity of high-pressure common rail injector. | 4. Test the internal pressure of common rail pump. |
5. Test the cranking oil quantity of high-pressure common rail injector. | 5. Test the proportional electromagnetic valve of common rail pump. |
6. Test the backflow oil quantity of high-pressure common rail injector. | 6. Test the input pressure of common rail pump. |
7. Test the average oil quantity of high-pressure common rail injector. | 7. Test the flux of common rail pump. |
8. Set the high-pressure common rail injector's injection state and oil quantity measurement. | 8.Measure the rail pressure in real time. |
Product Functions
The function of the tester for CR high pressure pumps is to provide the desired signal to drive the solenoid
in the pump being tested. CR3000 common rail Tester can used for testing following pumps:
BOSCH CP1-H, BOSCH CP1-K,BOSCH CP3,DELPHI, SIEMENS, DENSO HP2 AND HP3.
It has the functions to test the Electromagnetic and Piezoelectric injectors.
It also can test 6 common rail injectors in one time.
Can change to this controller:
Design Features
1, Modulated driving signal to ensure the safety of the solenoid of the CR pump |
2, Adjustable duty cycle for the driving signal |
3, Short circuit protection for the output circuitry of the solenoid driving signal |
4, Measure and LCD display rail pressure |

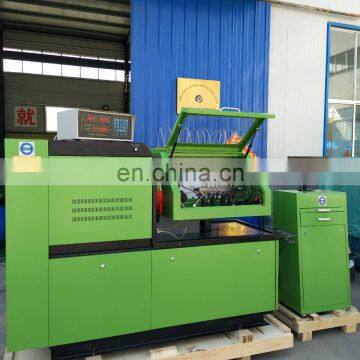

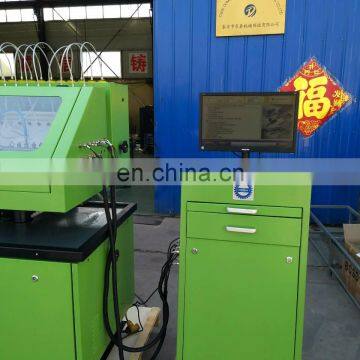

Details Pictures
