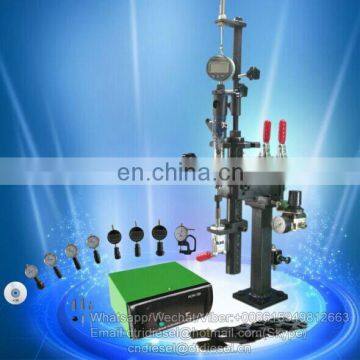

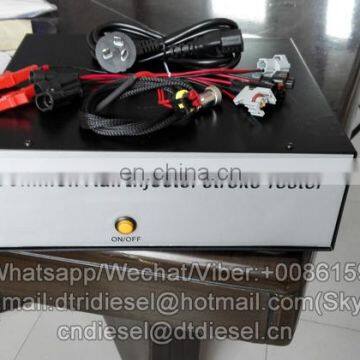

Three Stage Bosch Common Rail Injector Tester and Repair Tools

three stage bosch common rail injector tester and repair tools

Common Rail Injector stroke measuring system, which includes almost all common rail injectors stroke measuring standard data inside. Suitable for BOSCH, CAT, DENSO, DELPHI, SIEMENS injectors and so on .

It can test:

1. Adjust Needle Lift
2. Adjust Needle Opening Pressure
3. Adjust Total Lift of Armature Assembly
4. Adjust Actual Lift of Armature Assembly
5. Adjust Solenoid Air Gap
6. Adjust Solenoid Spring Compression
7. Driving Armature

Common Rail Injector Repair Stage 3 Rebuild Injector after Component Being Replaced:

Injector Critical dimensions are accurately controlled by using the calibration shims or spacers of exact thicknesses in the injector during injector rebuild to meet Bosch spec tolerance of 1um.

1:Intuitive, step-by-step instruction to direct user to rebuild injector

Measure thickness of calibration shims

Measure dimension of injector components

Provide the required thickness of calibration shims

2:Complete database to cover Bosch common rail injectors

CRI 1, CRI 2, CRI 3 for Automotive engine

CRIN 1, CRIN 2 for Commercial vehicle engine

 >>> Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories)

2,  Injection pump test bench

3,auto tools

4  Auto parts

5, special vehicles

6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold  more than 100 countries and regions of all world .
