Common Rail Injector and Pump Test Bench the Cheapest Model

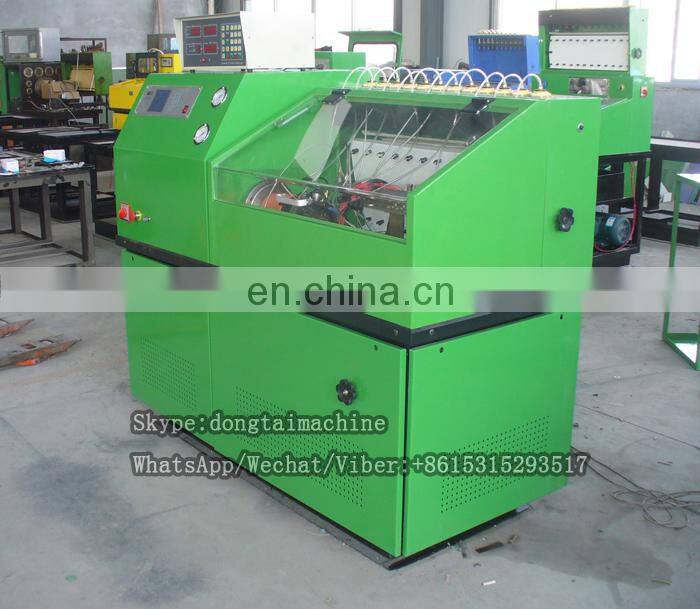

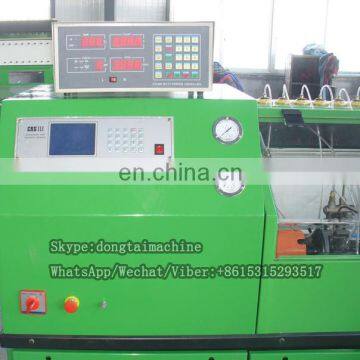

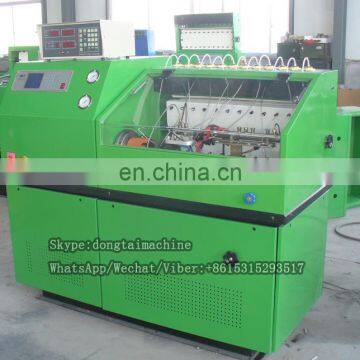

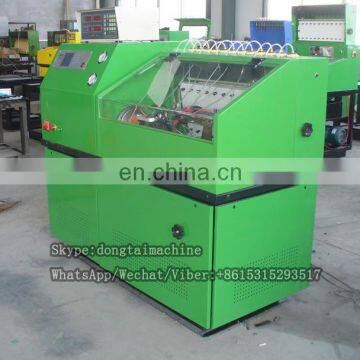

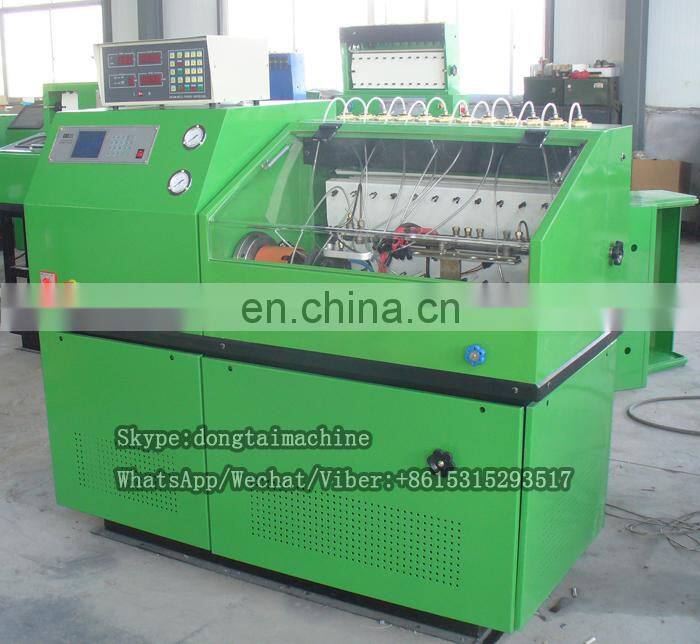

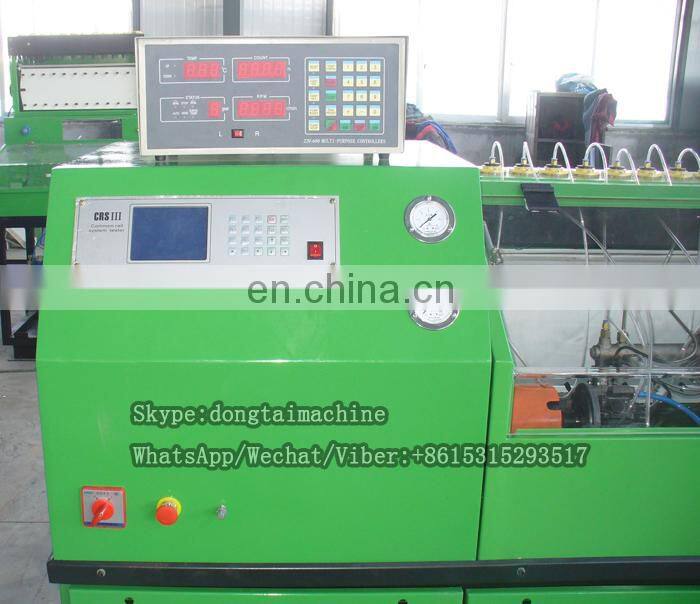

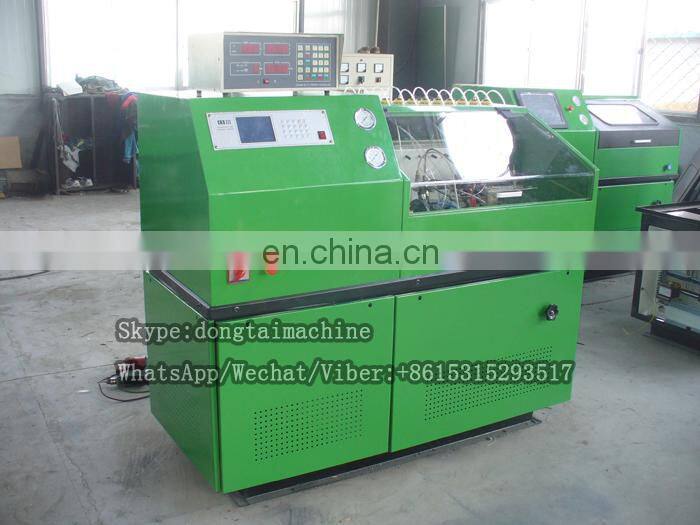

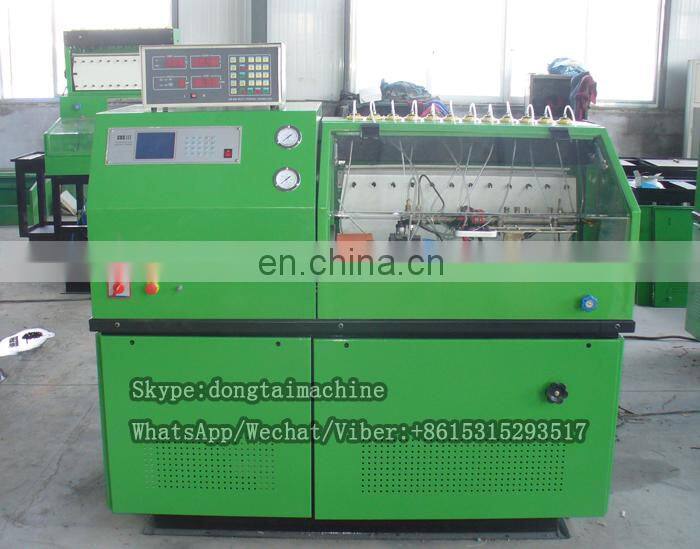

CR3000 COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.

1. 1.        System Application:

the system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type

1. 2.        Technical parameters

1, Main motor speed: 0-4000 r / min can be adjustable.
2, Motor power: 7.5KW, 11KW, 15KW, 18.5KW optional.
3, Fuel Injector open voltage
Control range: 12V, 80V, 150V
Control accuracy: phase adjustment
4, Injector opening frequency
Control: 0-1000HZ
Control accuracy: 1HZ
5, Fuel Injector Hold Time
   Control: 0-65535us
6 Delivery Oil Count

Control: 0-1000 times
Control accuracy: 1 times
7, Fuel pressure control
Control: 0-2000bar
Control accuracy: 1bar
8, Electronic power: 3 PHASE 380V or 3 PHASE 220V optional

Main products include:
     1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2,  Injection pump test bench 3,auto tools 4  Auto parts 5, special vehicles 6 , Turbocharger.......
     Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold  more than 100 countries and regions of all world .
