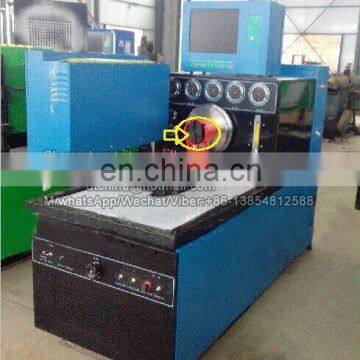

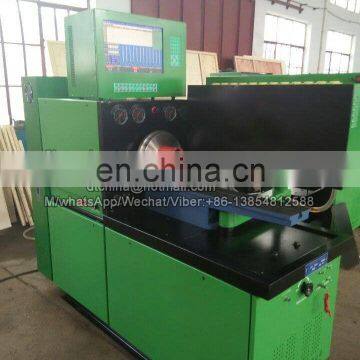

Help CenterDiesel Injection Pump Test Bench DTS815/EPS815
Related Products
-
PQ1000 Common Rail Injectors TesterUS$ 1,000 - 1,100MOQ: 1 Piece -
Diesel Injection Pump Test Bench The Cheapest Model 12psbUS$ 2,700 - 4,500MOQ: 1 Piece
-
HIgh Quality Bosch 12PSB Diesel Fuel Injection Pump Test Bench/test MachineUS$ 2,700 - 4,500MOQ: 1 Piece
-
Diesel Injection Pump Test Bench DTS619 COMPUTER MODELUS$ 3,900 - 5,600MOQ: 1 Piece
-
Fuel Injection Pump Test Bench the Best Quality Model 12PSB, 12PSDWUS$ 2,700 - 5,600MOQ: 1 Piece

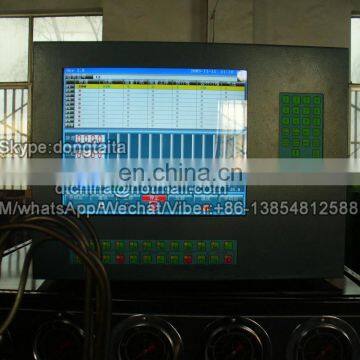

DTS815-- continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems.
the electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured valuse.
>>> Main function:
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke(on request)
13.oil lubricate (on request)
14. Foced cooler (on request)
>>> Technical characteristic:
| Adjustable cylinders numbers | Out power(Kw) | RPM | Rpm pre-set | Temperature control system | Positive pressure system | Positive pressure system |
| 12 | 7.5 11 | 0-4000 | √ | √ | √ | √ |
| Air supply | DC power supply | internal pressure of VE pump | Oil return of VE pump | travel of tooth bar | Advanced angle | Capability with pump type |
| √ | √ | √ | √ | √ (On request) | √ (On request) | All in- line and rotary pump |
Packaging Details: Wooden case
Delivery Detail: 3-5 days after payment
Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2, Injection pump test bench 3,auto tools 4 Auto parts 5, special vehicles 6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world.
