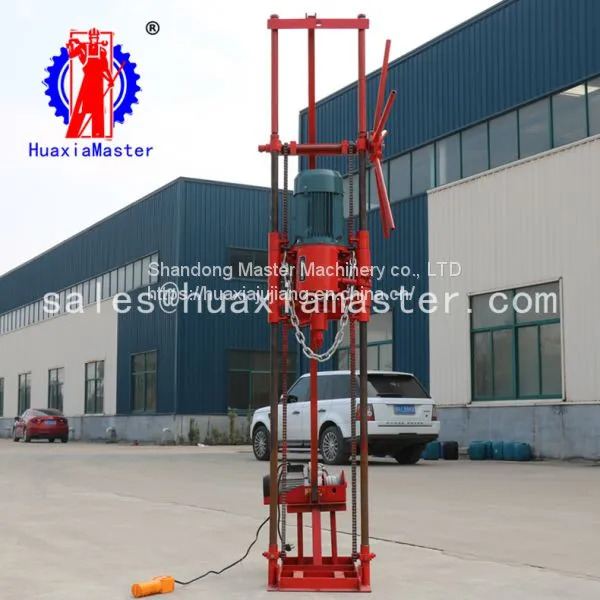

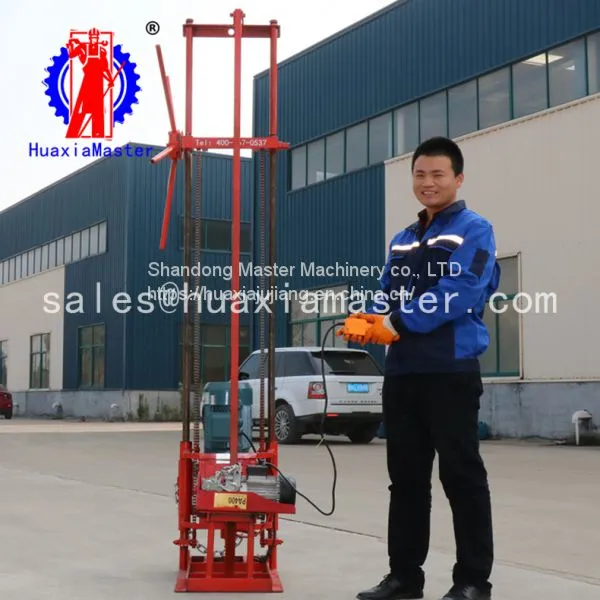

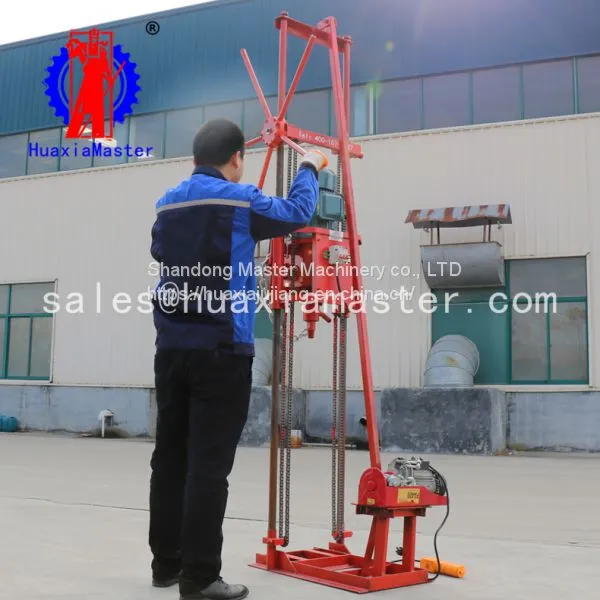

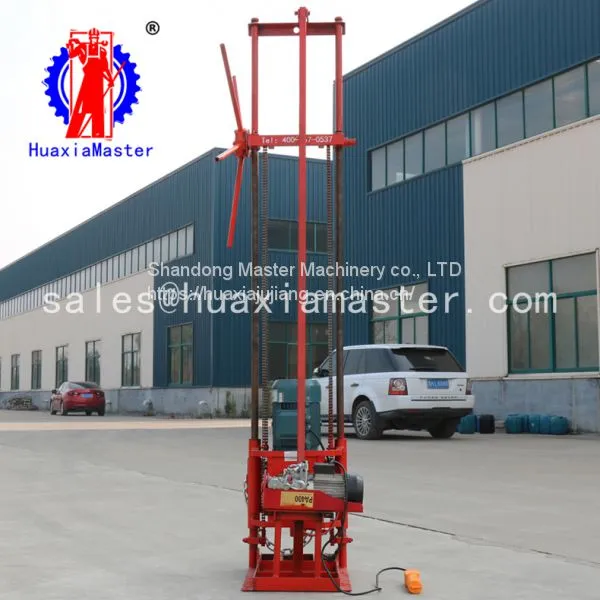

Portable diamond core drill QZ-2DS mini horizontal directional drilling machine
- 100 Set / Sets per Month
- Qingdao
- T/T L/C
- 10 days
You May Like
-
SPT QZ-3 diesel sampling drilling rig 50m ground rotary drill
-
YQZ-30 hydraulic core drill rig / geological investigation sample drilling machine for export
-
50m depth borehole drilling machine /Small hydraulic exploration rig for export
-
Supplies 50m hydraulic exploration rig /portable core drilling machine
-
Portable winch with gasoline engine / soil sampling drill machine
-
10m soil drilling rig / hand held soil drill machine on sale
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | QZ-2DS | Type | Rotary Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 6 Months | Weight | 110KG | |
| Dimension(L*W*H) | 600*650*2330mm | Power Type | Electric | |
| Voltage | 380v | Usage | Coal | |
| Condition | New | Power(W) | 4kw |
Product Description
QZ-2DS three phase electric sampling drilling rig
1. Brief introductions of QZ-2DS three phase electric sampling drilling rig
QZ-2DS three phase electric sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.
QZ-2DS three phase electric sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2DS three phase electric sampling drilling rig
QZ-2DS three phase electric sampling drilling rig | ||
End hole diameter (mm) | 32-110 | |
Drilling depth（m） | soilφ110：10m soilφ91：10-15m stoneφ91：5-10m stoneφ75：10-15m stoneφ60：15-20m stoneφ46：20-30m | |
Drilling pipe diameter (mm) | 30 | |
Three phase electric engine | power | 4kw |
model | YX3-112M-4 | |
Dimension（l*w*h） | 600*650*2330 | |
Weight（kg） | 110 | |

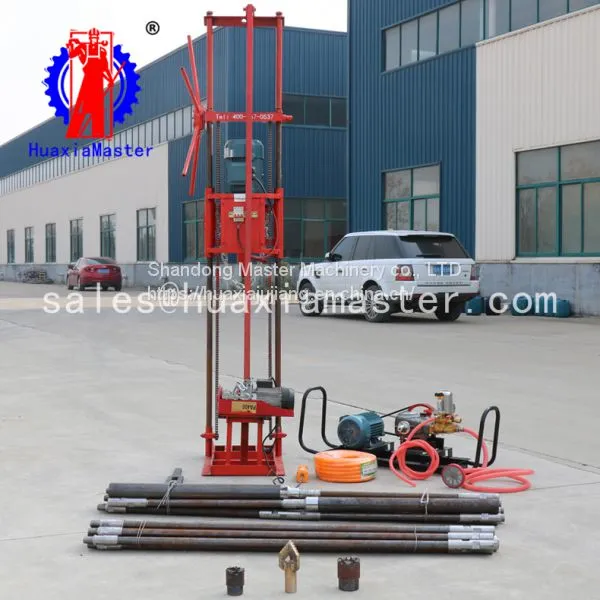

3. Configuration list of QZ-2DS three phase electric sampling drilling rig
Item | Parameter | Unit | Quantity |
Three phase electric sampling drilling rig | QZ-2DS | set | 1 |
Drilling pipe | 30*1500 | pc | 6 |
Drilling pipe | 30*800 | pc | 14 |
Pipe joint | 38 | pc | 20 |
Reducing nipple | 58/38 | pc | 2 |
Core barrel | 58*800 | pc | 1 |
Core barrel | 58*1500 | pc | 1 |
Alloy bit | 60 | pc | 1 |
Diamond bit | 60 | pc | 1 |
Reducing nipple | 73/38 | pc | 2 |
Core barrel | 73*800 | pc | 1 |
Alloy bit | 75 | pc | 1 |
Diamond bit | 75 | pc | 1 |
Three-wing bit | 75 | pc | 1 |
Safety clamp | pc | 1 | |
Water seal | Y 30*50*10 | pc | 4 |
Oil seal | 30*50*10 | pc | 1 |
Pipe wrench | 18 | pc | 2 |
Monkey wrench | pc | 1 | |
Shaft snap ring clamp | pc | 1 | |
Hole snap ring clamp | pc | 1 | |
Pliers | Pair | 1 | |
Cross screwdriver | pc | 1 | |
Hex wrench | pc | 1 | |
Control wheel | pc | 1 |
If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
