Dissolved Air Flotation Machine

Dissolved Air Flotation Machine thumbnail-1

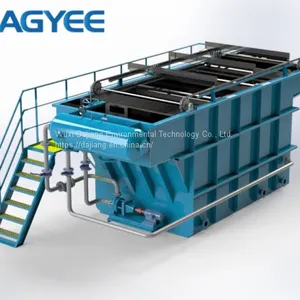

Dissolved Air Flotation Machine thumbnail-2

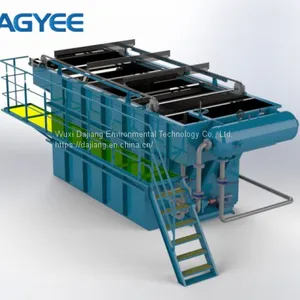

Dissolved Air Flotation Machine thumbnail-3
Dissolved Air Flotation Machine thumbnail-4
Dissolved Air Flotation Machine thumbnail-5
Dissolved Air Flotation Machine photo-1

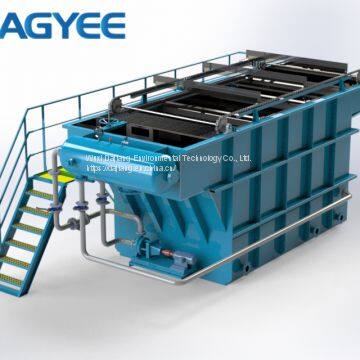

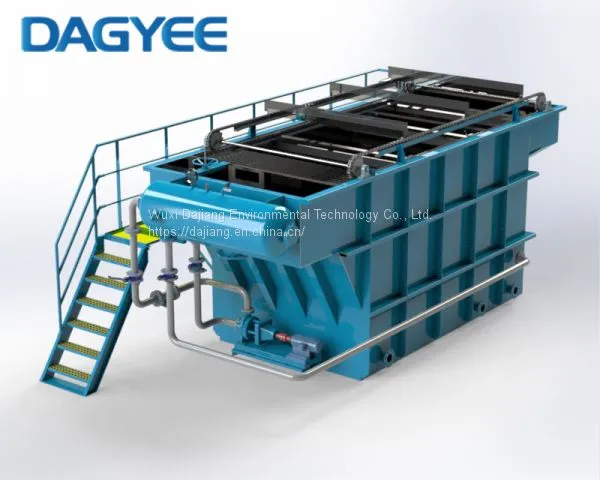

Dissolved Air Flotation Machine photo-2

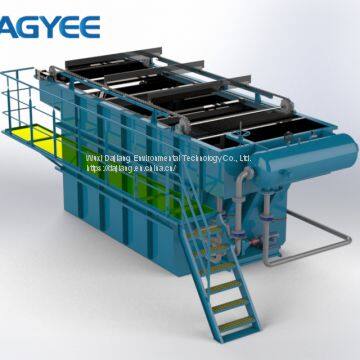

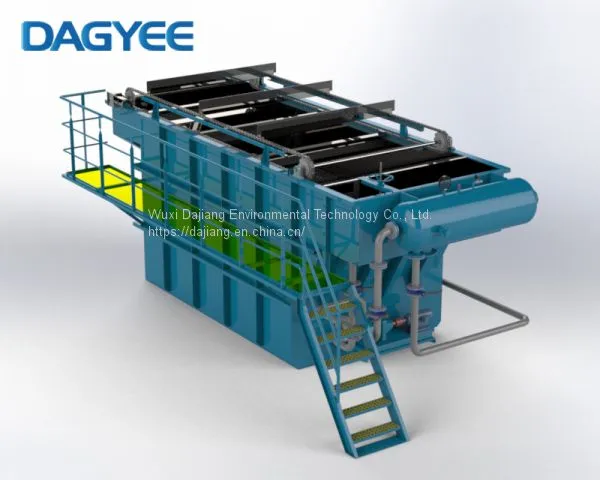

Dissolved Air Flotation Machine photo-3

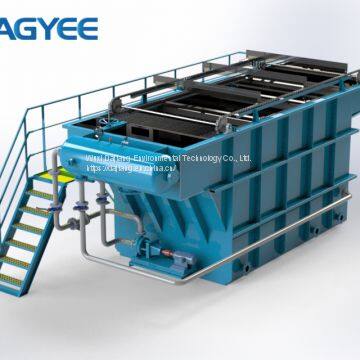

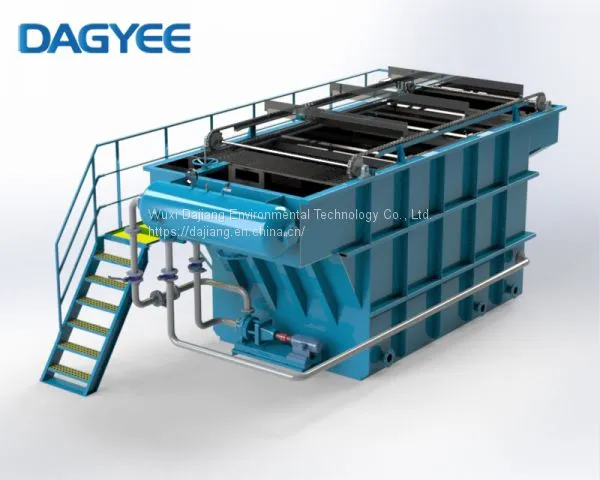

Dissolved Air Flotation Machine photo-4

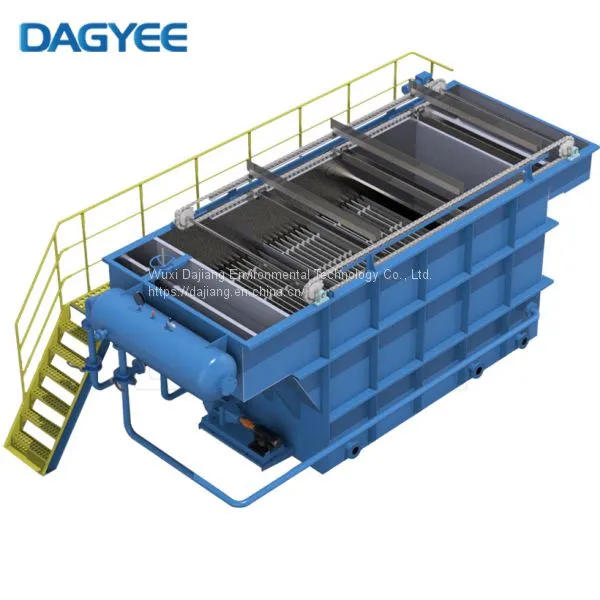

Dissolved Air Flotation Machine photo-5
US$ 5500 - 14500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dadyee
Place of Origin:
China
Model Number:
DAF
Contact Supplier Request Quote Chat Now
Wuxi Dajiang Environmental Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Dadyee
Place of Origin China
Model Number DAF

DAF Title

DAF 01

Dissolved Air Flotation is the process of removing grease, oils and other fine suspended solids and reduces COD and BOD device. the use of air bubble flotation.

Air was dissolved into water, the air -saturated water generated from dissolved air micro bubbles attach to the surface of solids, The light of solids(less dense than water) lifting them to the surface. distributed over the whole tank width , Make sure optimum phase separation. Mechanical skimmer remove the floating sludge layer and the purified wastewater discharges to sewer.

 Dagyee dissolved air flotation solutions provide high-quality, high-capacity, and efficient clarification.





DAF 02



DAF 03

DAF
Model		Capacities
(m3/h)		Piping ConnectionsPhysical Dimensions(m)Weight
(Kg)		Operating
Weight(kg)
Inlet(a)Effluent(b)Sludge(c)Vent(d)L/L1W/W1H/H1
DAF-0022DN50DN50DN100DN1003.4/2.52.4/1.162.2/1.713004000
DAF-0033DN50DN50DN100DN1003.7/2.82.4/1.162.2/1.715005000
DAF-0055DN80DN80DN100DN804/32.4/1.162.2/1.716007000
DAF-01010DN100DN100DN100DN1004.65/3.82.7/1.362.4/1.9200012000
DAF-01515DN125DN100DN150DN1005.6/4.52.9/1.662.5/2220018000
DAF-02020DN150DN150DN150DN1005.9/4.83.2/1.962.5/2300022000
DAF-03030DN150DN150DN150DN1006.8/5.53.2/2.162.7/2.2380032000
DAF-04040DN200DN150DN150DN1008/6.73.6/2.62.7/2.2500045000
DAF-05050DN200DN150DN150DN1008.4/73.6/2.62.7/2.2550055000
DAF-06060DN250DN200DN150DN1009.9/8.43.8/2.82.9/2.4600066000
DAF-07070DN250DN200DN150DN10010.4/93.8/2.82.9/2.4650075000
DAF-08080DN250DN250DN150DN10010.8/9.44/32.9/2.47500100000
DAF-100100DN300DN250DN150DN10012.1/10.64.2/3.22.9/2.49000110000
DAF-120120DN300DN250DN150DN10012.5/11.44.4/3.42.9/2.410000130000

DAF 04

DAF system detail.jpgDAF system detail02.jpg

DAF 05

DAF APPLICATION

DAF 08DAF 09
