Cross Roller Slewing Bearing

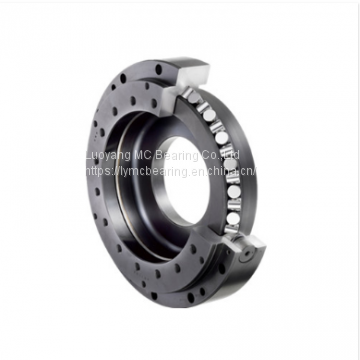

MC crossed roller slewing ring is mainly made up of inside and outside rings. It features compact in design, light in weight, small in assembling clearance, and high in installing precision. As the rollers are crossed arranged by 1:1, it is suitable for high precision mounting and capable to bear axial force, radial force and resultant torque simultaneously.

Three types of this kind of single row crossed roller slewing bearing:

A. Without gear bearing (non tooth)

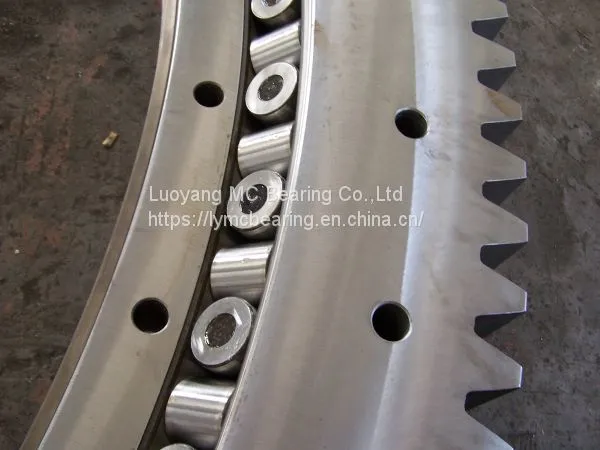

B. External gear bearing (external tooth)
C. Internal gear bearing (internal tooth)



                           A                                                                B                                                     C

Single row cross roller slewing bearing


     Without gear                                            Internal gear                                         External gear

Bearing No.				Boundary dimensions			Mounting hole dimensions
Non tooth		External tooth	Internal tooth	D	d	H	D1	D2	dn1 dn2	dm1 dm2	L	n
				mm
110.25.500		111.25.500	113.25.500	602	398	75	566	434	18	M16	32	20
		112.25.500	114.25.500
110.25.560		111.25.560	113.25.560	662	458		626	494
		112.25.560	114.25.560
110.25.630		111.25.630	113.25.630	732	528		696	564				24
		112.25.630	114.25.630
110.25.710		111.25.710	113.25.710	812	608		776	644
		112.25.710	114.25.710
110.28.800		111.28.800	113.28.800	922	678	82	878	722	22	M20	40	30
		112.28.800	114.28.800
110.28.900		111.28.900	113.28.900	1022	778	82	978	822	22	M20	40	30
		112.28.900	114.28.900
110.28.1000		111.28.1000	113.28.1000	1122	878		1078	922				36
		112.28.1000	114.28.1000
110.28.1120		111.28.1120	113.28.1120	1242	998		1198	1042
		112.28.1120	114.28.1120
110.32.1250		111.32.1250	113.32.1250	1390	1110	91	1337	1163	26	M24	48	40
		112.32.1250	114.32.1250
110.32.1400		111.32.1400	113.32.1400	1540	1260		1487	1313
		112.32.1400	114.32.1400
110.32.1600	111.32.1600		113.32.1600	1740	1460	91	1687	1513	26	M24	48	45
	112.32.1600		114.32.1600
110.32.1800	111.32.1800		113.32.1800	1940	1660		1887	1713
	112.32.1800		114.32.1800
110.40.2000	111.40.2000		113.40.2000	2178	1825	112	2110	1891	33	M30	60	48
	112.40.2000		114.40.2000
110.40.2240	111.40.2240		113.40.2240	2418	2065		2350	2131
	112.40.2240		114.40.2240
110.40.2500	111.40.2500		113.40.2500	2678	2325		2610	2391				56
	112.40.2500		114.40.2500
110.40.2800	111.40.2800		113.40.2800	2978	2625	112	2910	2691	33	M30	60	56
	112.40.2800		114.40.2800
110.50.3150	111.50.3150		113.50.3150	3376	2922	134	3286	3014	45	M42	84
	112.50.3150		114.50.3150
110.50.3550	111.50.3550		113.50.3550	3776	3322		3686	3414
	112.50.3550		114.50.3550
110.50.4000	111.50.4000		113.50.4000	4226	3772		4136	3864				60
	112.50.4000		114.50.4000
110.50.4500	111.50.4500		113.50.4500	4726	4272		4636	4364
	112.50.4500
