Standard Crossed Roller Bearing

Standard Crossed Roller Bearing thumbnail-1
Standard Crossed Roller Bearing photo-1
US$ 100 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
CRBH 10020 A,CRBH 11020 A,CRBH 12025 A,CRBH 13025 A,CRBH 14025 A,CRBH 15025 A,CRBH 20025 A
Number of Row:
Single Row
Contact Supplier Request Quote Chat Now
Luoyang MC Bearing Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,beijing,Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number CRBH 10020 A,CRBH 11020 A,CRBH 12025 A,CRBH 13025 A,CRBH 14025 A,CRBH 15025 A,CRBH 20025 A
Number of Row Single Row
Outside Diameter 140, 298
Bore Size ,

（Standard Crossed Roller Bearing）CRB/CRBC:CRB/CRBC standard type is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body. It is being used in cases where a high rotational accuracy of the inner ring is required.

  • No gear type

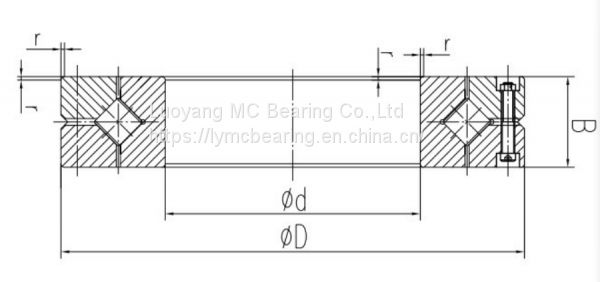

  • Main Dimensions

           Mounting     dimensions

      (mm)






    		Identification mm Basic dynamic load rating Basic static load rating Weight


    Shaft number






    Diameter







    mm
    		 Inner  ring Outer  diameter  Width r da Da C Co Kg


    		d
    		B min kN kN



    		D



    100 CRBH  10020 A CRBH  10020 A UU 100 150 20 0.6 110 140 50.9 72.2 1.45
    110 CRBH  11020 A CRBH  11020 A UU 110 160 20 0.6 120 150 52.4 77.4 1.56
    120 CRBH  12025 A CRBH  12025 A UU 120 180 25 1 132 168 73.4 108 2.62
    130 CRBH  13025 A CRBH  13025 A UU 130 190 25 1 142 178 75.9 115 2.82
    140 CRBH  14025 A CRBH  14025 A UU 140 200 25 1 152 188 81.9 130 2.96
    150 CRBH  15025 A CRBH  15025 A UU 150 210 25 1 162 198 84.3 138 3.16
    200 CRBH  20025 A CRBH  20025 A UU 200 260 25 1 212 248 92.3 169 4
    250 CRBH  25025 A CRBH  25025 A UU 250 310 25 1.5 262 298 102 207 4.97


Product Tags: cross roller , rolelr bearing
