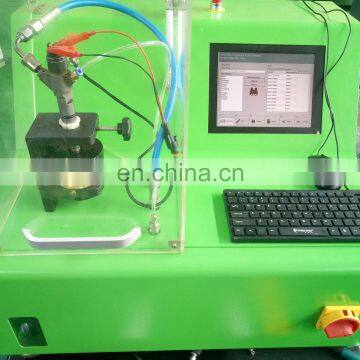

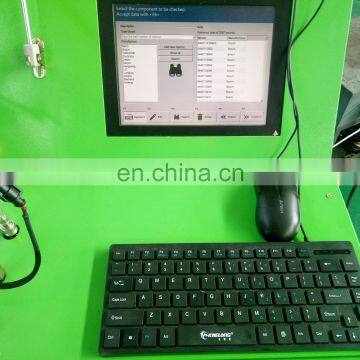

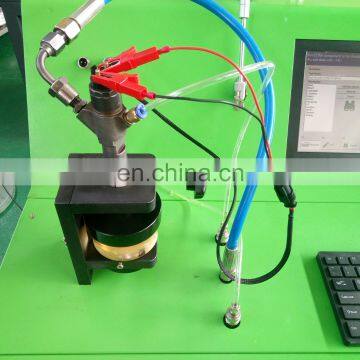

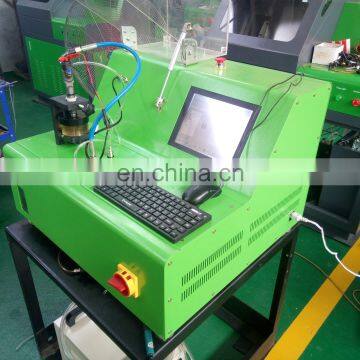

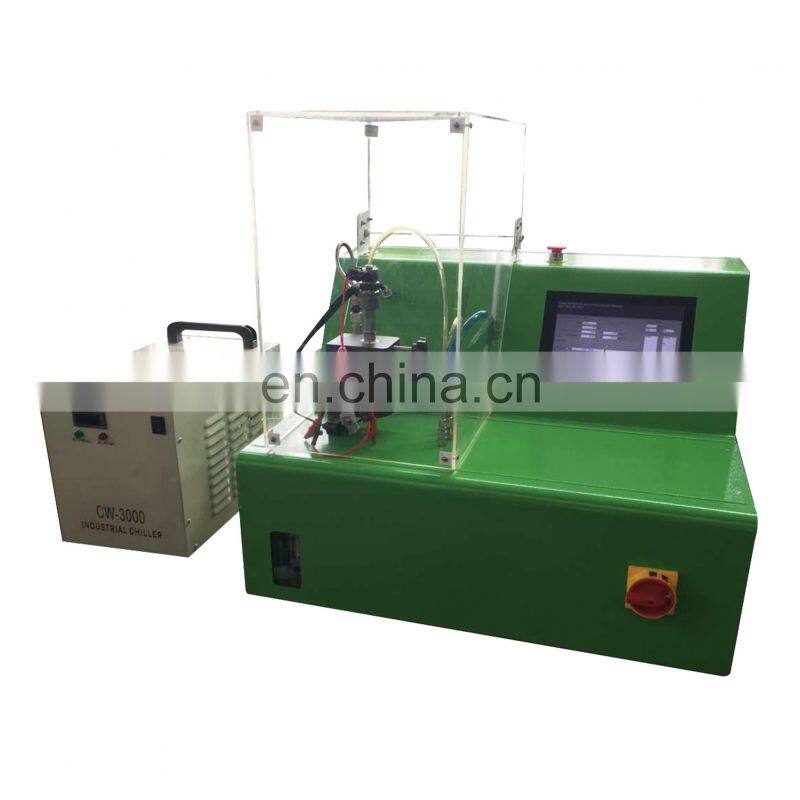

EPS118 Common Rail Injector Piezo Test Bench

EPS118 Common Rail Injector Test Bench

EPS118 has all common rail pump, injector data inside.
EPS118 COMMON RAIL TEST BENCH is mainly test for common rail

injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured valuse.
EPS118 COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.

>>>FUNCTION

>>>TECHNICAL PARAMETER
Injection testing frequency :50~3000 rpm Pulse width: 0.1~200 ms
Continuous injection times: 0~1000 Fuel temperature :40±2℃
Supply oil quantity of common rail injector: 0~200cc/min 0.5%
Rail high pressure :0~2000 bar Test oil filtered precision :5μ
Input power :380V/50hz/3phase or 220V/60hz/3phase
Rotation speed:0~4000RPM Oil tank capacity: 60L
Flywheel inertia’s moment: 0.8KG.M2 Center height: 125MM
Output power :7.5KW(11kw,15kw,18.5kw as request)
