CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors.

CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. thumbnail-1
CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. thumbnail-2
CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. thumbnail-3
CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. thumbnail-4
CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. thumbnail-5
CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. thumbnail-6
CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. photo-1
CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. photo-2
CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. photo-3
CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. photo-4
CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. photo-5

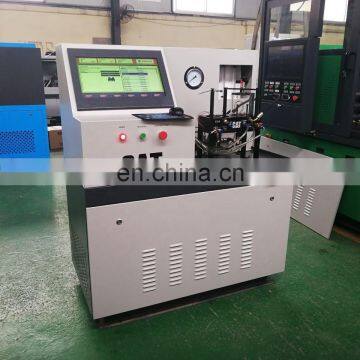

CAT4000L HEUI TEST BENCH WITH COMPUTER TEST Medium Pressure Injectors. photo-6
US$ 3,800 - 4,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DONGTAI
Place of Origin:
Shandong, China
Model Number:
HEUI
Contact Supplier Request Quote Chat Now
Taian Dongtai Machine Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGTAI
Place of Origin Shandong, China
Model Number HEUI
Power Electronic

CAT4000L HEUI TEST BENCH

Application

The test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:

Navistar T444E, as Ford 7.3L Power Stroke Engines

Navistar DT466E

Navistar I530E

Caterpillar 3126B laboratory test bench

Function

China HEU Itest bench Measurement fuel delivery of HEUI injectors

Sealing test for injector upper seat of the solenoid control valve HEUi Itest bench

Specification

Motor

10HP motor

Actuation Oil system

0-300bar,

Test Oil Supply

0-4bar

Test Oil Tank Capacity:

40L

Temperature control

Range: 10~50

Accuracy: +/- 1

Digital Display

Injection Quantity Measurement

150ML glass tube

Main Features of HEUI Control Module

Adjustable Range of Injection Pulse Width

0~6ms

Fuel Delivery Measurement Counter Range

1~9999

Simple, User-Friendly Display and Mini-Key Padc

 CAT4000L HEUI TEST BENCH WITH COMPUTER TEST medium pressure injectors.CAT4000L HEUI TEST BENCH WITH COMPUTER TEST medium pressure injectors.CAT4000L HEUI TEST BENCH WITH COMPUTER TEST medium pressure injectors.



Packaging & Shipping

 CAT4000L HEUI TEST BENCH WITH COMPUTER TEST medium pressure injectors.CAT4000L HEUI TEST BENCH WITH COMPUTER TEST medium pressure injectors.CAT4000L HEUI TEST BENCH WITH COMPUTER TEST medium pressure injectors.CAT4000L HEUI TEST BENCH WITH COMPUTER TEST medium pressure injectors.
