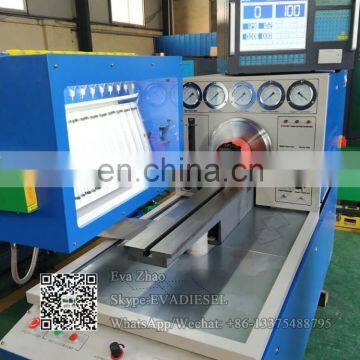

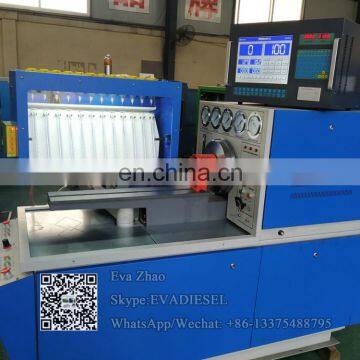

high-quality diesel fuel injection pump test bench BD860

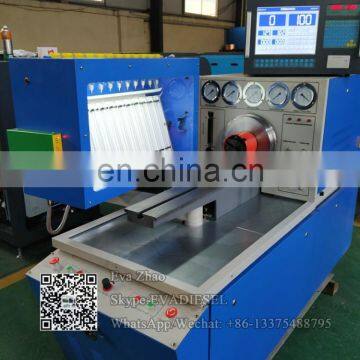

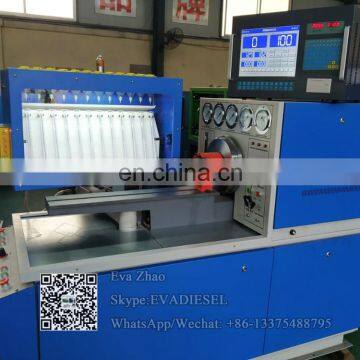

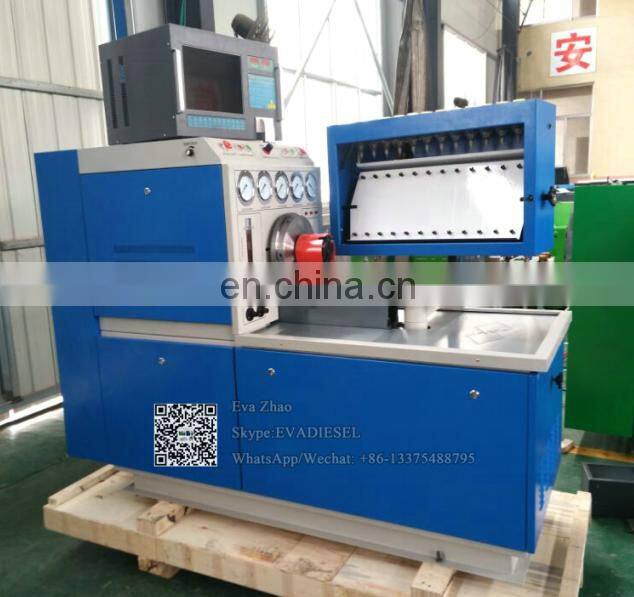

 DTS619 Diesel Fuel Injection Pump Test Bench

Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc

Main Functions: 1.Fuel delivered from each cylinder on any speed can be tested 2.Speed, temperature,counter,pressure,Rack meter can be displayed on the numeric unit of test bench. 3.Forced oil lubrication function(Optional) 4.Directly driven by motor,variable frequency stepless speed regulation 5.Static inspection on the delivery time of each cylinder 6.Inspection on Performance of the mechanical and pneumatic governor 7.Inspection on performance of the solenoid valve 8.Inspcetion on performance of the minus pressure of pneumatic governor 9.Inspection on the performance of the Pressure Compensator 10.Oil returned valume of distribute pump 11.Inspection on the inner pressure of the VE pump 12.Inspection on the performance of the minus pressure of pneumatic governor 13.Inspection on the Pump body sealing performance

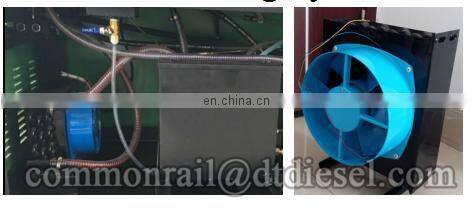

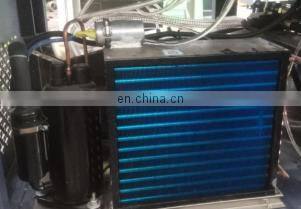

Cooling system                                                 Optional choice

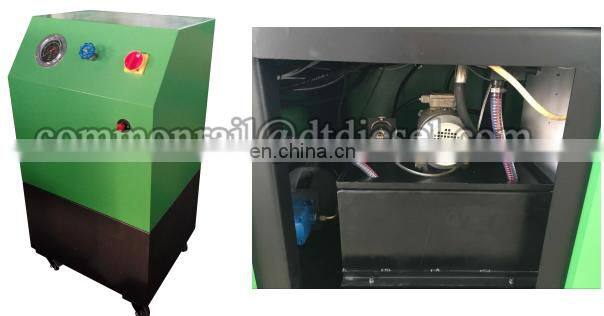

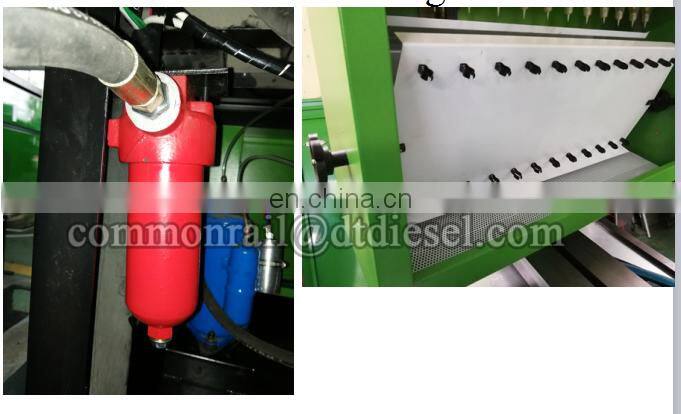

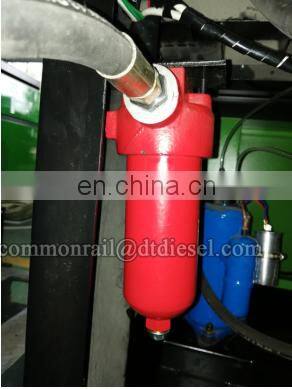

One filter outside to                     Optional Oil Lubricate function

keep diesel clean.

1 The principle axis rotation speed: 0-4000r/min. the two directions are optional
2 It can test oil injection pump cylinders is 12
3 The principle axis rotation speed fluctuate: ±1r/min
4 The host machine power : 5.5KW ,7.5KW,11KW,15KW,18.5KW,22KW.
5 The oil supply drive motor power: 1.1KW
6 Principle axis center to center spacing working bench height : 125mm
7 The oil metering counting : 0-1000 times , one gear per 50 times
8 Rotation speed .counting, toothed bar stroke, in advance angle: four digital display
9 The pressure, oil temperature display : three digital display
10 The oil temperature automatic control : 40℃±2℃
11 Gas source pressure: 0-0.25Mpa
12 The oil tank volume : ≥ 40L
13 The oil pump oil supply : ≥ 10L/Min
14 The oil filter precision : 5μ

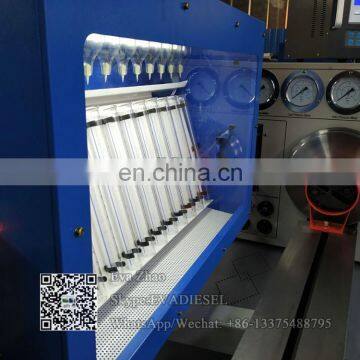

15 The glass measuring cylinder volume:
Big measuring cylinder: 150ml
Small measuring cylinder: 45ml

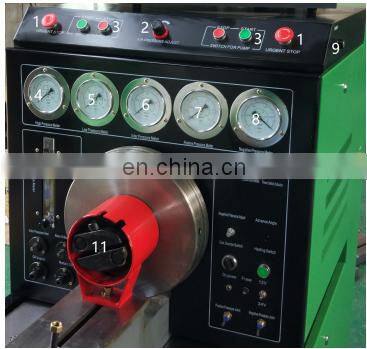

16 The oil pressure meter 1.5 grade : 0-0.6Mpa;0-6Mpa;0-0.16Mpa;0-1.6Mpa.
17 The standard injector: ZS12SJI
18 Cooling method: forced wind cooling

Common rail Pump and injector test bench

             CR825                                           CR819                                    CR815
