CR308 Pressure HEUI High Pressure Common Rail Diesel Fuel Injector Testing Bench

 CR308 Middel Pressure HEUI High Pressure Common Rail Diesel Fuel Injector Testing Bench

--CP3.3 common rail pump
--Original common rail +DRV
--Common rail system motor Power 5.5KW
--HEUI drive power:3KW
--Oil system pressure automatic adjustment system
--Diesel tan)heating,cooling,liquid level,temperature sensor,temperature security)
--Oil tank(heating,cooling,liquid level,temperature sensor)
--Industrial PC(with touch screen,built-in WIFI remote training,service,upgrade)
--Flow meter(German ZDM) injector flow sensor
--Flow meter(German KRACHT) oil flow sensor
--Drive circult board(solenoid valve electric parameters:to enhance the voltage,current,time,pull in voltage,current,time,keep voltage,current,time,according to the setting of the parameters of production factory

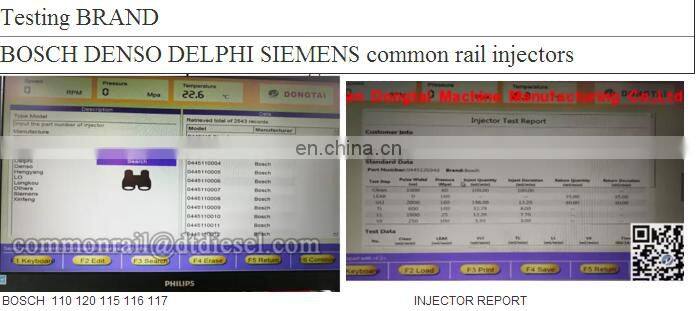

COMMON RAIL INJECTOR TESTING( Double display, By flow sensor and by Glass tubes)

Automatically test different models solenoid valve injectors (common rail injectors and piezo injector)BOSCH, DENSO , DELPHI, SIEMENS.

 1. Controlled by industrial computer in real time, Windows operating system.

2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen;

3. More than 1000 kinds of injecotors data can be searched and used.

4. It is installed BOSCH common rail pump to provide 0~2000 bar

5. Rail pressure can be tested in real time,

6. Provide pressure overload protect

7. Pulse and frequency of the injector can be adjusted

. 8. Injection time can be set.

9. Protection function of short-circuit.

10. Precise measurement, easy operation, low noise.

11.Frequency converter inside to keep the RPM.

HEUI INJECTOR TESTING CAT C7 C9 C-9 3126 3408

HEUI Injector test bench 1.High pressure cleaning 2.Warm up 3.leak test 4.Test the injected fuel and the volume of return under rated speed, idle, emission status, pre-injection and preinjection.

BOSCH CP3 common rail pump                                                               CAT pump

High quality inverter (LG BRAND)                                       Bosch Original High press rail with DRV valve

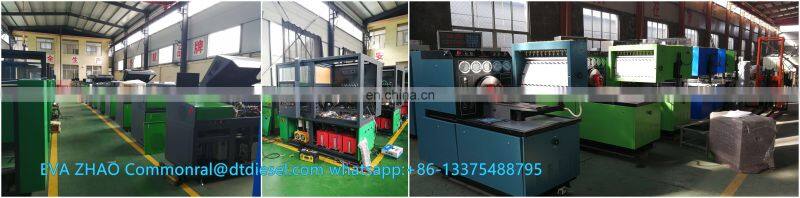

Common rail Pump and injector test bench

             CR825                                           CR819                                    CR815
