Place of Origin:Shandong, China (Mainland) Brand Name:new power
Model Number:12PSB Power:Hydraulic
Usage:Auto Testing Machine type:diesel test bench
voltage:220v/380v power:11kw/15kw/22kw
certification:ISO applicable models:diesel injection tester
model number:12PSB warranty:12months
color:green or by your requirement
Packaging Details: wooden box

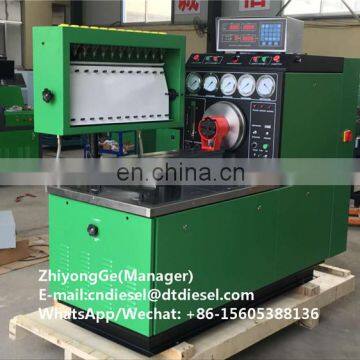

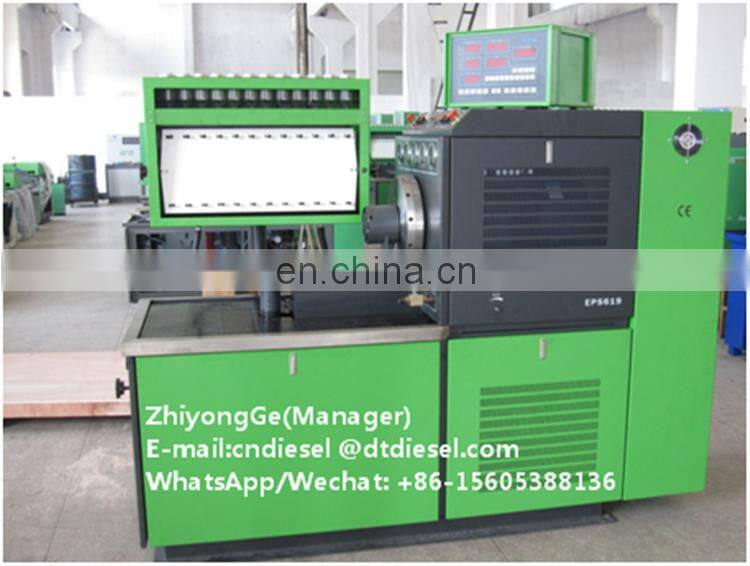

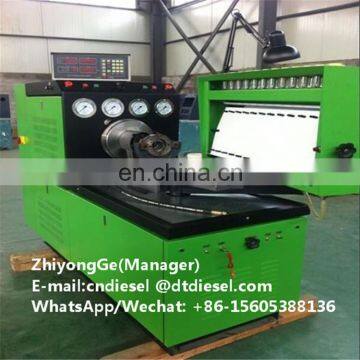

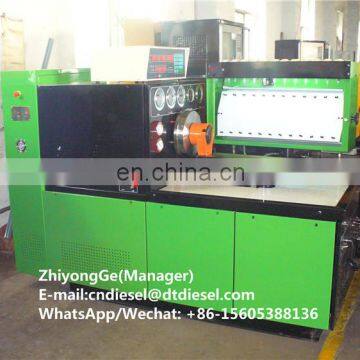

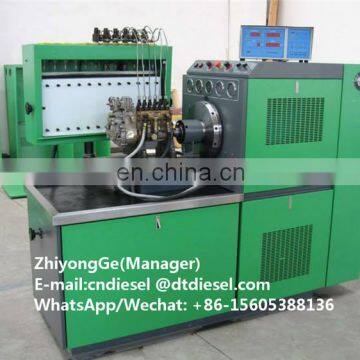

Diesel Fuel Injection Pump Test Bench 12PSB
>>> Introduction:
ription
12PSB diesel fuel injection test bench is design for customer’s require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.
Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.
>>> Main function:
1.Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
>>> Technical characteristic:
Type
| Technical characteristic | Output power(KW) |
| 12PSB | 1.test cylinders:12 cylinders *(Mini-12PSB is 6 or 8cylinders) 2.RPM 0-4000 3.Ten speed preset 4.With 12v/24v DC power 5.digital display of oil count times 6.Digital display of temperature 7.with air supply 8.Measurement of oil return of distributing pumps 9.Measure oil flux of VE pumps 10.Measure the internal pressure of VE pump. | 5.5 7.5 11 15 18.5 |
>>> Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2, Injection pump test bench 3,auto tools 4 Auto parts 5, special vehicles 6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world .
