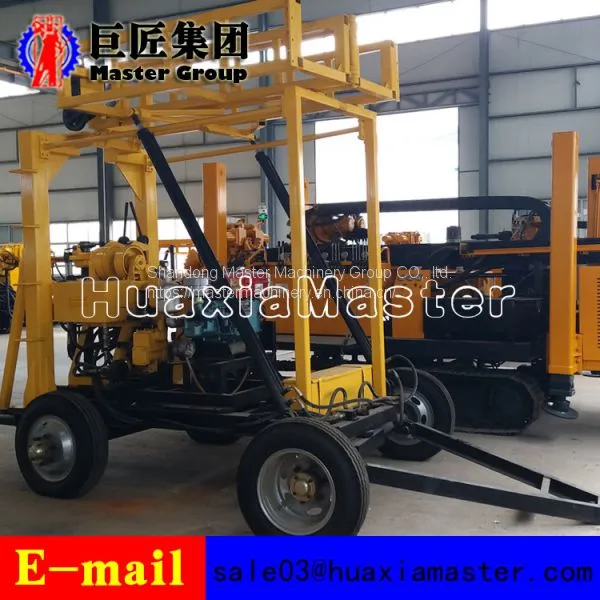

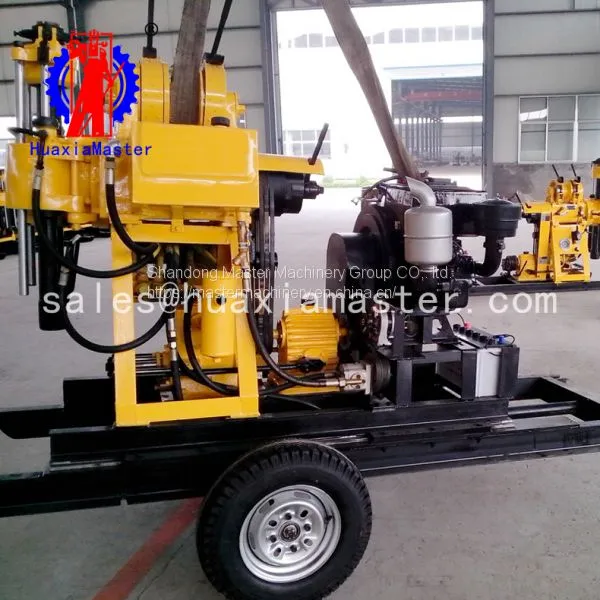

Help CenterXYX-200 Wheeled Hydraulic Core Drilling Rig Trailer Travelling Hydraulic Water Well Drilling Machine Mobile and Convenient
Related Products
-
XYD-200 200 Meters High Configuration With Water Well Drilling MachineUS$ 4000 - 7000MOQ: 1 Set -
Xyc-200 Truck-mounted Hydraulic Core Drilling Rig 200 Meter Rotary Water Well Drilling MachineUS$ 14000 - 15000MOQ: 1 Set
-
XYC-200A Vehicle-mounted Hydraulic Core Drilling Rig Water Well Drilling Machine 200 MeterUS$ 14000 - 15000MOQ: 1 Set
-
XY-3 300mm Large-bore Hydraulic Water Well Drilling MachineUS$ 6000 - 7500MOQ: 1 Set
-
XYD-3 Trailer Mounted Core Drilling Machine / Core RigUS$ 4000 - 6000MOQ: 1 Set
1.The main charateristic of XYX-200 water well drilling rig
a.Hydraulic cylinder,high efficiency.

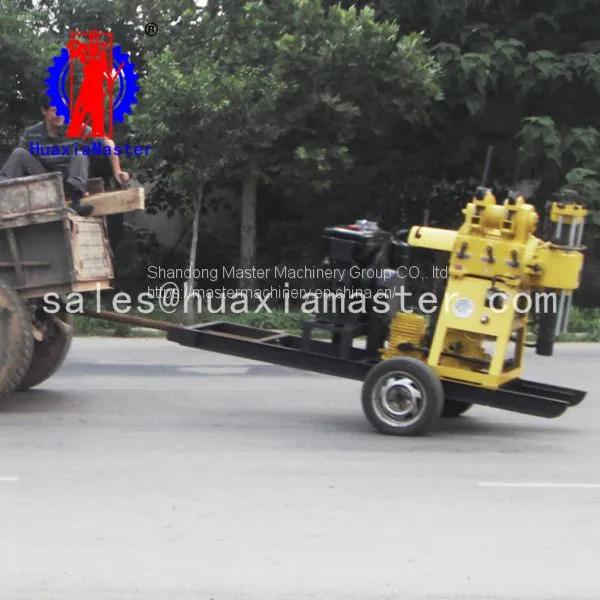

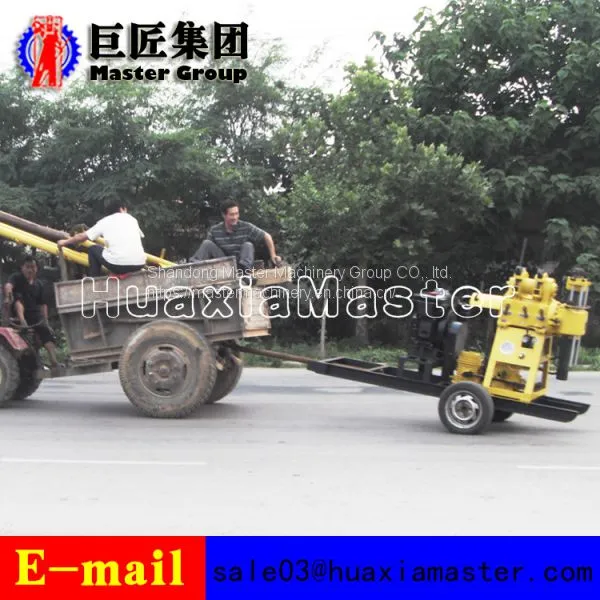

b.Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
c.Pressure gauge display the condition of the bottom of the drill hole.
d.The machine is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient and safe and reliable
2.The technical parameter of XYX-200 water well drilling rig
Unity Main parameters | |
Drill hole depth |
200m |
Maximum opening diameter |
300mm |
Final hole diameter |
75mm |
Drill pipe diameter |
60mm |
Borehole inclination |
90°～75° |
Rig weight (without power) |
1300kg |
Trigonometric belt |
B950×4 B1700×3 |
Active moving distance |
300mm |
power |
Dieselengine/ motor 20HP/16.2KW |
A vertical scroll of painting | |
Shaft rotation speed |
64 128 287 557 r/min |
Vertical axis stroke |
450mm |
Windlass | |
Maximum lifting weight of single rope |
2400kg |
Single rope lifting speed |
0.41 0.82 1.64m/s |
Wire rope diameter |
13mm |
Wire rope capacity |
35m |
Hug floodgate caliber |
260mm |
Hug folldgate belt width |
70mm |
Mud pump | |
Type |
Horizontal single cylinder double action |
Maximum displacement |
Diesel engine 170L/min Matching motor 150L/min |
Maximum pressure |
3Mpa |
Work pressure |
1.5Mpa |
Inlet pipe caliber |
40mm |
Outlet pipe caliber |
30mm |
Triangle conveyer belt |
B1728mm |
Type |
CBT—F—314 |
Triangle conveyer belt |
B1100× 1 |
