Home > Products > water well drilling rig > Hydraulic core drilling rig / this drilling rig adopts the conical clutch
Hydraulic core drilling rig / this drilling rig adopts the conical clutch
- 100 Set / Sets per Month
- Qingdao
- T/T L/C
- 10 days
You May Like
-
Full hydraulic core drilling rig / Tunnel rig on sale
-
220m depth core drilling rig / Metal mining rig made in China
-
Mine drill equipment / exploration core drilling on sale
-
Metal mine exploitation drilling rig / Multi-angle construction in the tunnel
-
Hydraulic tunnel rig / Coal mine special exploration rig on sale
-
BXZ-1 Backpack rig / knapsack sampling drill/ Portable core drilling rig
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XY-130 | Type | Rotary Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | No overseas service provided | |
| Warranty | 6 Months | Weight | no | |
| Dimension(L*W*H) | no | Power Type | Diesel | |
| Voltage | no | Usage | Water Well | |
| Condition | New | Power(W) | 18HP |
Product Description

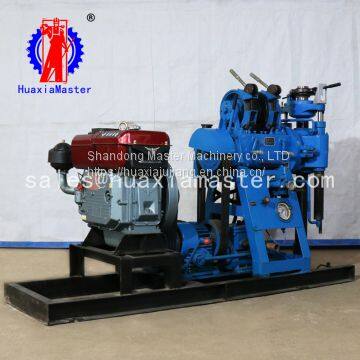

XY-130 hydraulic water well drilling rig
1.Features of XY-130 hydraulic water well drilling rig
· Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
· Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
· This drilling rig adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
· Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
2.Specifications of XY-130 hydraulic water well drilling rig
XY-130 hydraulic water well drilling rig | |
Drilling depth | 130m |
Maximum open hole caliber | 220mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90 |
Drill weight (Not include power) | 600kg |
Spindle | |
Spindle speed | 142 285 570r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 1600kg |
Single line lifting speed | 0.41/0.82/1.64m/s |
Drum diameter | 140mm |
Wire rope diameter | 13mm |
Tightrope caliber | 27m |
Mud pump | |
Type | Horizontal single urn twin-action |
Electric motor | 95/77 l/min |
Maximum pressure | 1.2mpa |
Work pressure | 0.7mpa |
Water inlet caliber | 30mm |
Water to exit caliber | 20mm |
Triangle conveyer belt | B1575mm |
Matched driving power (diesel engine and motor) | 18hp diesel engine and 11kw motor |
