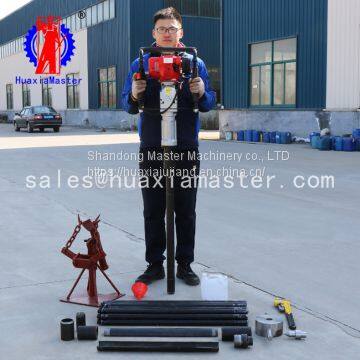

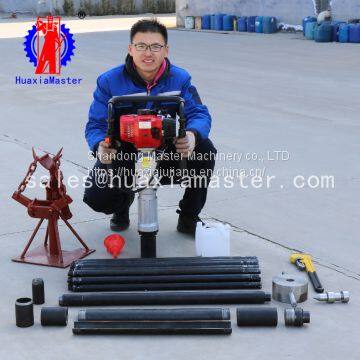

QTZ-3 Gasoline engine portable soil sampling drilling rig
1. Brief introduction of QTZ-3 Gasoline engine portable soil sampling drilling rig
QTZ-3 Gasoline engine portable soil sampling drilling rig is more humanized and more suitable for researchers in scientific research institutions or universities. The power is further strengthened, which can meet the requirement of soil sampling for 15-20 meters depth.
2. Applications of QTZ-3 Gasoline engine portable soil sampling drilling rig
· Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
· Ground water survey; coastal geological survey; wetland environment investigation.
· Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3. Technical parameters of QTZ-3 Gasoline engine portable soil sampling drilling rig
QTZ-3 Gasoline engine portable soil sampling drilling rig | ||
Power | power | 3.8hp |
lighter way | back flush pull rope | |
oil consumption | 0.6 l/h | |
Impact times | 2460 r/min | |
Impact energy | 35j-70j | |
Core depth | 15m-20m | |
Host weight | 26kg | |

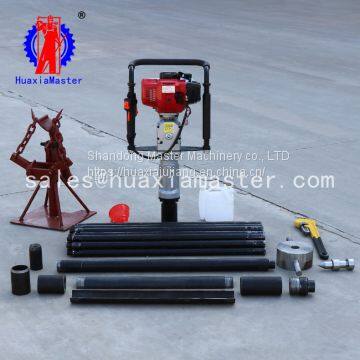

4. Configuration list of QTZ-3 Gasoline engine portable soil sampling drilling rig
Item | Parameter | Unit | Quantity |
Gasoline engine portable soil sampling drilling rig | QTZ-3 | platform | 1 |
Cylinder impact hand | 52*107 | pc | 1 |
Tapered tap | 32*80 | pc | 19 |
Drill pipe | 32*700 | pc | 19 |
Taper tap | 32*100 | pc | 19 |
Reducing nipple | 32*50 | pc | 1 |
Collar | 50*150 | pc | 1 |
Open tube | 50*600 | pc | 1 |
Double tube boots | 50*100 | pc | 2 |
Reducing nipple | 32*70 | pc | 1 |
Collar | 70*150 | pc | 1 |
Split duct | 70*600 | pc | 1 |
Inner edge pipe boots | 70*100 | pc | 1 |
Outer edge pipe boots | 70*100 | pc | 1 |
Portable sounding hammer | 10kg | pc | 1 |
Sounding the reducing nipple | 32 | pc | 1 |
Double sided hand | 32 | pc | 1 |
Touch probe | 32 | pc | 1 |
Puller | three force arm | set | 1 |
The ratio of oil | 25:1 | pc | 1 |
Oil injection funnel | pc | 1 | |
Forceps | 80mm | hold | 1 |
Wrench | 24/27 | 1 | |
Small wrench | 8/10 | 1 | |
Internal six party | #4 | 1 | |
Internal six party | #5 | 1 | |
Internal six party | #6 | 1 | |
Hexagonal spanner | 1 | ||
Spark plug wrench | 1 | ||
Screw driver | 1 | ||
Spare spark plug | 1 |
