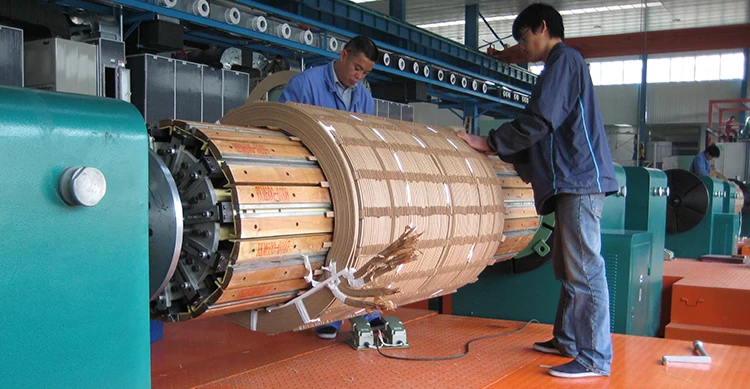

manual hand counter coil winding machine
Application
This machine is used for winding transformer.electric motor coils in many kinds shapes.
It is unique, professional, easy operating, digital showing and get high praise from user. many famous companies have use our machine like Toshiba of Japan, ABB,HYOSUNG etc.
Model and specification
No. |
Item |
Parameters |
Parameters |
1 |
Type |
RX-3 |
RX-5 |
2 |
Max bearing weight(kg) |
3000 |
5000 |
3 |
Winding speed(r/min) |
0-60 |
0~30r |
4 |
Spindle center height(mm) |
1100 |
1300 |
5 |
Motor power(Kw) |
5.5 |
7.5k |
6 |
Distance between main axis and end box(mm) |
1000-2500 |
1000-2500mm |
7 |
Diameter of faceplate |
600mm |
800mm |
8 |
Rib quantity of faceplate |
6 |
6 |
9 |
T type slot |
M20 |
M20 |
10 |
Accessory |
Square shaft one piece Square hole spacer one piece |
Protection cover for main axis box,bracket for end box Not include expandable mandrel |
Design description: outline of whole machine

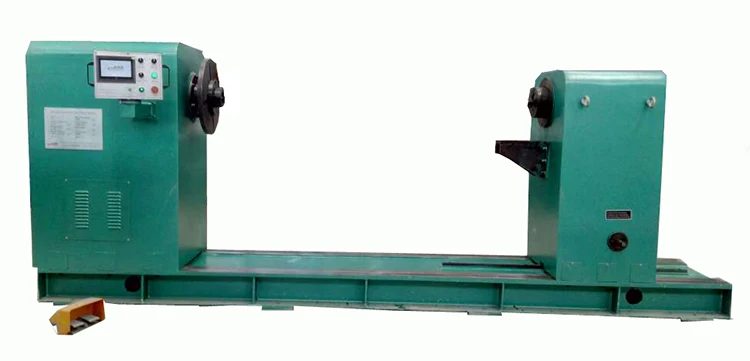

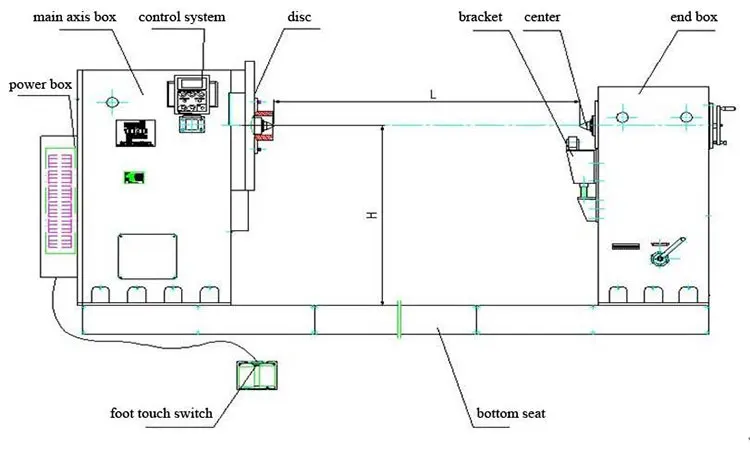

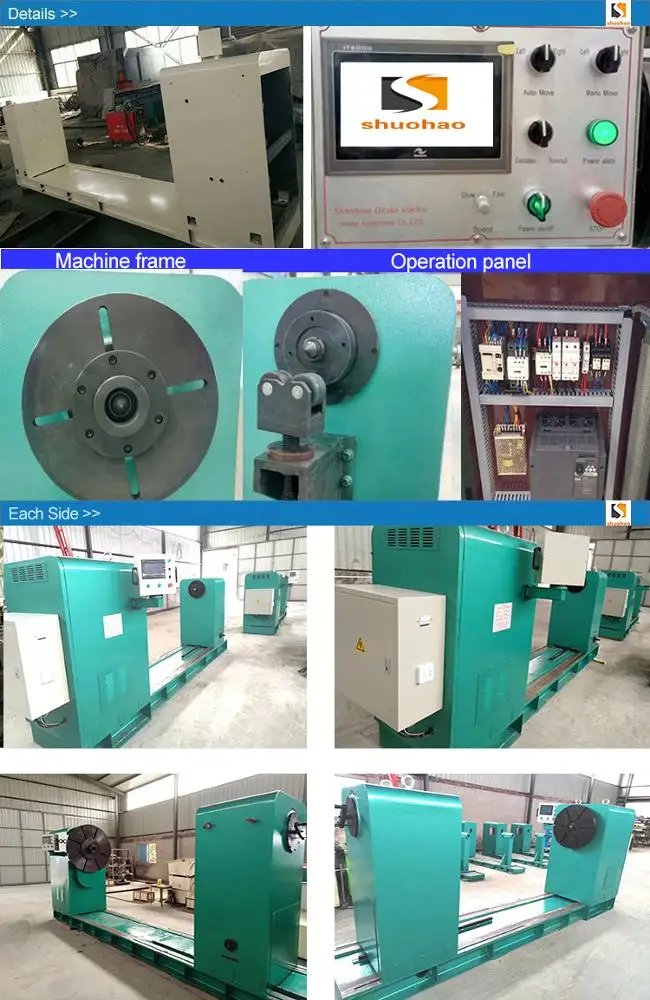

This horizontal coil winding machine is mainly made of main axis box, end box, bottom seat and control system(check the following picture)
Equipment features:
1. machine work reliable,easy to operate.start very smooth,can be jog frequently and stopped urgently.
2. The main spindle Forward and Reverse winding can be achieved by foot switch and control box.touch screen displays the numbers of coil winding with ability of counting forward and reverse winding,has Power-off memory function.
3. All components adopts famous brand.
Main component and supplier
Machinery part
Name |
Manufacture |
Note |
Chain |
Qingdao |
Main axis driving |
Qiangzhu speed reducer |
Zhujiang |
Moving end box |
Speed reducer |
Guomao |
Main axis speed reducing |
Deep groove ball bearing |
Haerbin bearing |
Moving end box |
Cone roller bearing |
Haerbin bearing |
Main axis, end axis loading |
electric control part
Name |
Supplier |
Transducer |
Mitsubishi |
Programming controller PLC |
Mitsubishi |
Touching screen |
Inovance |
Encoder |
Shanghai |
Electromagnetism 3 phase asynchronism motor |
Wannan motor |
Foot switch |
Taiwan |
Power button |
Schneider or DELIXI |
Jinan Shuohao Machinery Co., Ltd is factory specializing in design,manufacture,train for transformer making equipment .Main products include transformer coil winding machine,foil winding machine,busbar bending cutting punching machine,silicon core assembly table,amorphous core and coil assembly table,insulation paper folding machine,corrugated paper making machine,core coil reshaping machine.
Those products has been exported to Thailand,France,Vietnam,Myanmar,Pakistan,Australia,
Turkey,India,Russia and so on.Has more than 20 patents,Certificate of CE,ISO9001:2008
To satisfy customer after sales service,professional team responsible for training,guarantee customer products quality.Welcome old and new customer visit our factory.
