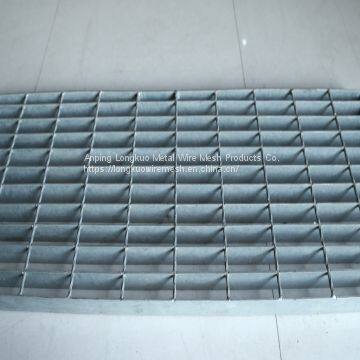

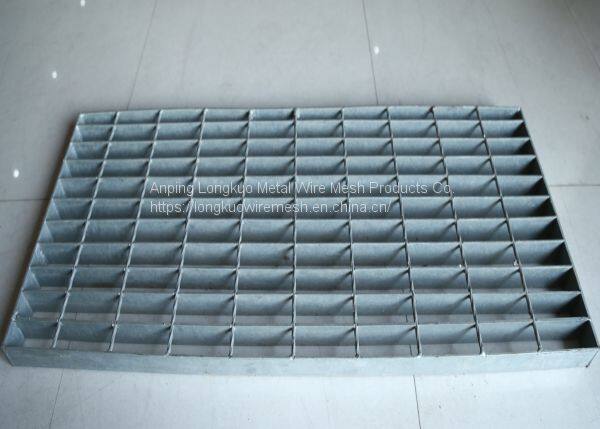

Steel Grating
Steel Walkway/ Metal Mesh Grating/ Metal Grating
Our steel grating is made using world-class equipment that allows us to create high quality and high strength metal grates.
Application:
Galvanized steel gratings are widely used by various industries for equipment coverings and walkways.

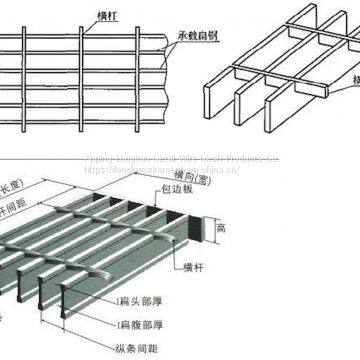

Technical Parameters:
Type | Plain/smooth, serrated /teeth, I bar, serrated-I bar |
Steel flat size | 20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……120×10mm,etc. |
Bearing bar pitch | 12.5,15,20,25,30,35,40,50mm |
Cross bar pitch | 38,50,80,100mm |
Material | Low carbon steel, stainless steel, aluminum alloy |
Surface treatment | Untreated, hot galvanized, painting, Grating Standard electro galvanized |
Grating Standard | China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS 4592-1987 Australia: AS 1657-1985 |
Material standard | China: GB 700-88 UK: BS 4360:1990 USA: ASTM A36/A36M-96 AUSTRALIA: AS 3679 |
HDG standard | CHINA: GB/T13912-2002 UK: BS729 USA: ASTM A123/A123M-97a AUSTRALIA: AS 1650 |
