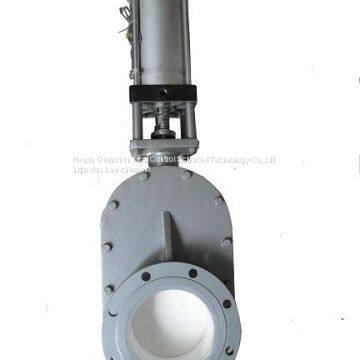

Pneumatic Ceramic Double Plate Gate Valve
US$ 100 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
QUANSHUN
Place of Origin:
China
Material:
Ceramic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Quick Action Line Blind ValveNegotiableMOQ: 1 Piece -
Water Pump Control ValveUS$ 1 - 1000MOQ: 1 Piece
-
Electric Angle Type Needle Valves for Alumina Digestion Flash TanksUS$ 1 - 10000MOQ: 2 Pieces
-
Tank Bottom ValveUS$ 1 - 10000MOQ: 2 Sets
-
Special Dome Valve for Ash Handling SystemUS$ 1 - 1000MOQ: 2 Pounds
Brand Name
QUANSHUN
Place of Origin
China
Material
Ceramic
Application
General
Structure
Gate
Standard or Nonstandard
Standard
Pressure
Low Pressure
Power
Pneumatic
Media
Water
Temperature of Media
Normal Temperature
Particularly offered for solid &gas medium,the pneumatic ceramic double plate gate valve takes engineering ceramic as the main sealing material .
Features
1.The sealing surface of the valve is made of toughened ceramics with abrasion resistance and long service life.
2.Two side sealing can realized due to double plate structure of the pneumatic ceramic double disc gate valve.
3.In the process of opening and closing ,the valve plate can rotate automatically ,which leads to the grinding and polishing between the two sealing surface of the ceramic double plate gate valve.
4.If needed ,there is an ash blowing outlet designed for ceramic double disc gate valve,being used to conduct dust blowing periodically .
Technical Specifications
Size: 2”~12” DN50~DN300
Pressure: Class 150 PN1.0~PN1.6
Body material : WCB(A105),CF8(304),etc.
Sealing material :Toughened engineering ceramic
Connection method :Flange type
Driving method: Pneumatic
Applications
Ash transport system in power plant
