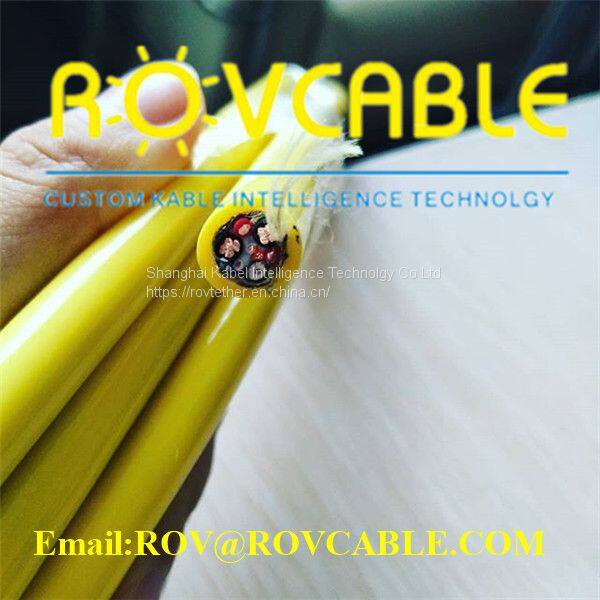

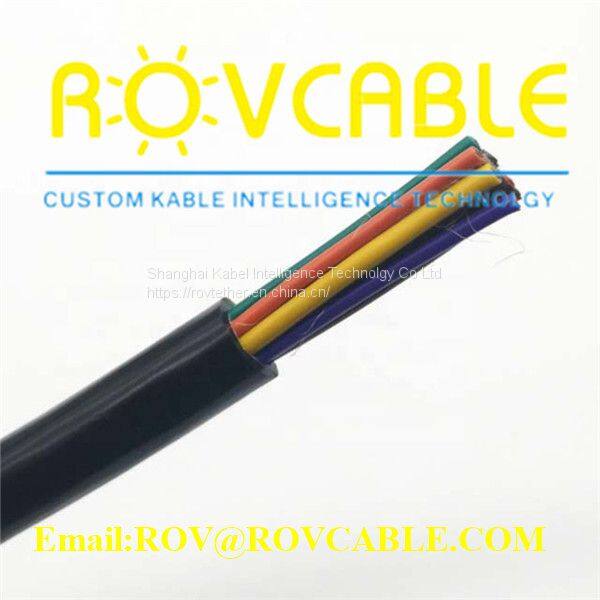

4 core underwater cable shielded cat5e cable
Negotiable
/ Meter
100 Meters(Min.Order)
- 100000 Kilometer / Kilometers per Month
- Shanghai
- T/T PayPal Cash
- 5 days
You May Like
-
Underwater cable umbilical twisted pair tether
-
6 core underwater cable three layers neutrally buoyant cable
-
Shielded underwater robotic cable umbilical twisted pair tether
-
5x4mm+4x2x0.2mm underwater fiber optic cable cat6
-
Flexible Pipe CCTV Camera Cable with Coaxial
-
Flexible PUR TPEE Cable for Pipe Robot
Product Details
| Conductor Material | Copper | |||
| Application | Other, Underwater Cable | Type | Low Voltage | |
| Insulation Material | PE | |||
| Brand Name | ROVCABLE | Place of Origin | China |
Product Description
Products Description
Product Name | 4 core underwater cable shielded cat5e cable |
Article Type | DERUL-A1336 rov tether/flexible cable/robot cable/trailing cable/reeling cable |
Constructure | Conductor+insulator+sheath+shield |
Conductor | Copper/tinned copper/sliver/aluminum... |
Insulation | PE/PP |
Shielding | Braided tinned copper/Aluminum foil |
Voltage | 300-1000V |
Diameter | Customized |
Sheath Color | Customized |
Applications | ROV tether/UAV tether/drag chain/crane/elevator/underwater robot... |
MOQ | 300-500 meters |
Sample term | Free sample on stock with freight collect |
Product lead time | 10-15 working days after payment received |
Shipping lead time | 5-10 working days by DHL/FEDEX/TNT/UPS... |
Payment term | T/T, Paypal, 50% edposit advanced, 50% balance before shippment |
Application
In the industrial application, sophisticated motions increasingly need high flexible cable that can be twisted. It requires copper
core, shielding and sheath material must withstand the extrusion force and radial pressure caused when cable bends and twists. PUR
sheath material significantly protects the inside components from damage when the cable is twisted. This cable is suitable for
industrial robot, manipulator arm and other movable applications. As per testing results, the maximum torsion angle can be 270°and
bending cycle is 3 million times.
Construction
Conductor: Fine stranded bare/tinned copper acc. to EN 60228 standard.
Wire gauge: 28AWG to 4AWG
Insulation: PE
Shielding: Tinned copper braiding
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: low adhesive PUR (polyurethane)
Sheath color: TBD
Technical data
Rated voltage: 300/500V (Acc. to DIN VDE 0245)
Testing volatge: 2000V (Acc. to DIN VDE 0281-2)
Temperature range: -25℃ till +80℃
Operating temperature: -25℃ till +80℃
Bending radius: Fixed installation 4xOD, In motion 10xOD
Movable speed: 180°/S
Oil resistance: Yes (Acc. to DIN EN 50363-10-2)
In the industrial application, sophisticated motions increasingly need high flexible cable that can be twisted. It requires copper
core, shielding and sheath material must withstand the extrusion force and radial pressure caused when cable bends and twists. PUR
sheath material significantly protects the inside components from damage when the cable is twisted. This cable is suitable for
industrial robot, manipulator arm and other movable applications. As per testing results, the maximum torsion angle can be 270°and
bending cycle is 3 million times.
Construction
Conductor: Fine stranded bare/tinned copper acc. to EN 60228 standard.
Wire gauge: 28AWG to 4AWG
Insulation: PE
Shielding: Tinned copper braiding
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: low adhesive PUR (polyurethane)
Sheath color: TBD
Technical data
Rated voltage: 300/500V (Acc. to DIN VDE 0245)
Testing volatge: 2000V (Acc. to DIN VDE 0281-2)
Temperature range: -25℃ till +80℃
Operating temperature: -25℃ till +80℃
Bending radius: Fixed installation 4xOD, In motion 10xOD
Movable speed: 180°/S
Oil resistance: Yes (Acc. to DIN EN 50363-10-2)
Product Applications
Floating cable, neutrally buoyant tether used in underwater drone, ROV.
Umbilical tether used in pipe robot, pipe crawler, sewer cleaner. Cable the the feature of anti-twist.
Flexible cable used in robot arm. Derul cable the feature of anti-twist, anti-flame, waterproof, etc.
Derul cable drag chain cables. High flexiblity, anti-twist, oil and cold resistance.
Derul Cable used in crane and lifting system.
.Derul reel cable used in oil and gas industrial
About Us
Derul Cable (Shanghai) Co.,Ltd
Derul Cable (Shanghai) Co., Ltd, an enterprise with high and cutting-edge technology, which is based on mature process and a excellent team composed of domestic technicians from cable industry, commits itself to the special design, manufacture and marketing. Derul Cable has built up since 2013 and products are mainly involved in power plant, port, mine, metallurgy, ship and other industrial equipment, etc. Derul Cable uses the best-in-class cable material to enhance the product lifespan, weathering resistance, bending resistance, abrasion resistance, and performance in high and low temperature.
We provide four series of products such as:
flexible cable series ( drag chain cable, servo cable, welding cable, converter cable and etc )
We provide four series of products such as:
flexible cable series ( drag chain cable, servo cable, welding cable, converter cable and etc )
- drum cable series ( elevator traveling cable, reeling cable, spreader cable, cable for oil drilling platform, cable for wind power and etc )
- Robot cable series ( cable for industrial robot, ROV, pipe inspection crawler, underwater camera, manipulator arm and etc )
- flat cable series ( cable for elevator, acid and alkali resistant cable, cable for plating equip and etc )
All products we produce conform to Europe CE Standard (CONFORMITEEUROPEENNE) and ISO9001:2015 quality management system.
Derul Cable, as a renowned cable manufacturer in China, is able to develop and customize various cables complying with customers' requirements.
Our Advantages:
1. Professional indusrtial experience.
2. Competitive price and excellent after-sale services.
3. Laudable lead-time and shipment control
4. Customized products with low MOQ.
5. High qulity exported raw material.
6. 24 hours connecting. Just call or email us when you needed.
Hot Sale Products
Packing and Shipping
Customer Comments
FAQ
Q1: What can I get from your company?
A1: Our company, Derul Cable is a professional company that specialized in different cables specially in ROV cables, flexible cables, underwater cables, flat elevator cables and so on. We can not only provide you qualified products but also excellent services. Let us help you to grow your business!
Q2: What is your MOQ?
A2: If we have products in our stock, there is no MOQ. For customized cables, the MOQ is 100 meters or more. It depends on the specifications you need.
Q3: How can you ensure your product quality?
A3: We can provide samples before you place the bulk order. So you can check the product quality through the sample. We are a company that aims to provide high quality and good service to our customers. The products are using qualified raw materials. Our products are under CE requirements.
Q4: Do you do OEM service?
A4: Yes, we can customied the products for our customers. Please advise the detailed specifications you need. We will evaluate your needs and give our professional suggestions and best offer.
Q5: When can I receive the goods after I payed?
A5: Usually it will take 7 days to receive the goods.
Q6: What if I payed the money and you don't send the goods to me?
A6: It will never happens to you. We have trade assurance order on alibaba which can guarantee your order from beginning to the end.
