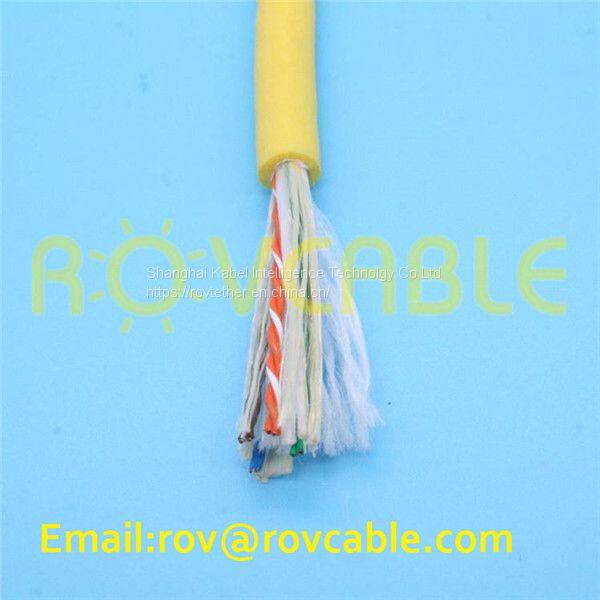

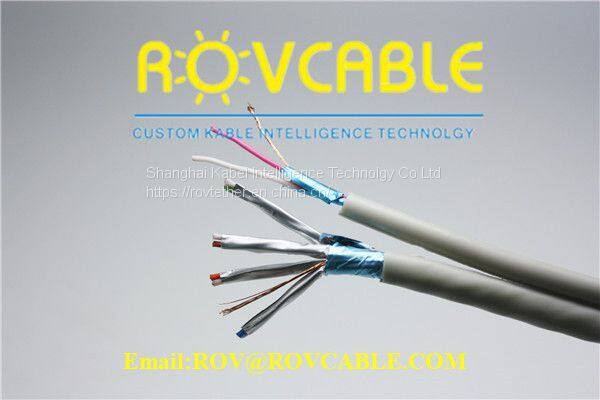

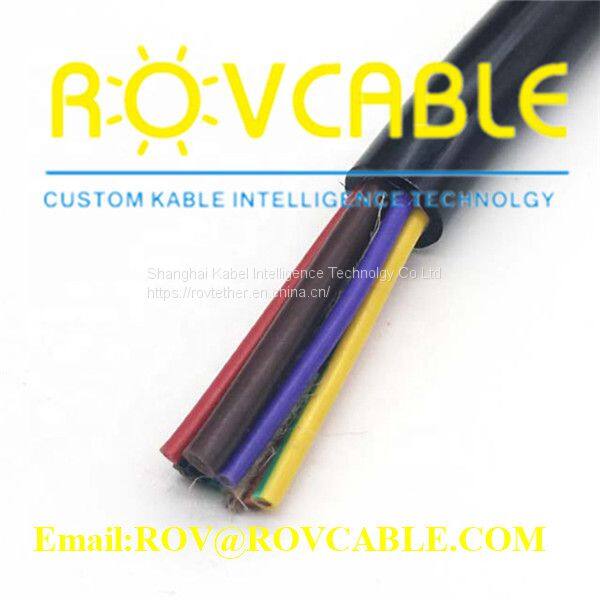

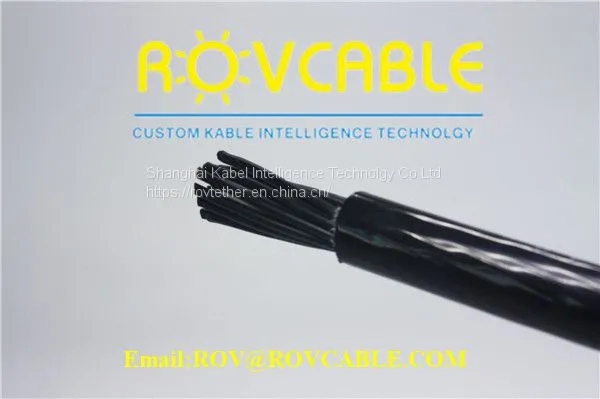

Shielded 6 core cable high flexible robot cable
Negotiable
/ Meter
100 Meters(Min.Order)
- 100000 Kilometer / Kilometers per Month
- Shanghai
- T/T PayPal Cash
- 5 days
You May Like
-
6 core shieled flexible drag chain cable twisted pair cable
-
PUR Sewer Pipe Inspection Crawler Abrasion Resist Cable with Optic fibres
-
Yellow Sewer Pipe Inspection Crawler Abrasion Resistant Cable with Optic fibres
-
Pipe Inspection Robot Fiberglass rod Push Tether Cable
-
PE Sheathed Robot Push Tether Cable with Fiberglass rod
-
Industrial Automatic Robotic Power Electrical Cable
Product Details
| Conductor Material | Copper | |||
| Application | Other, Underwater Cable | Type | Low Voltage | |
| Insulation Material | PE | |||
| Brand Name | ROVCABLE | Place of Origin | China |
Product Description
Products Description
Product Name | Shielded 6 core cable high flexible robot cable |
Article Type | DERUL-A1345 rov tether/flexible cable/robot cable/trailing cable/reeling cable |
Constructure | Conductor+insulator+sheath+shield |
Conductor | Copper/tinned copper/sliver/aluminum... |
Insulation | PE/PP |
Shielding | Braided tinned copper/Aluminum foil |
Voltage | 300-1000V |
Diameter | Customized |
Sheath Color | Customized |
Applications | ROV tether/UAV tether/drag chain/crane/elevator/underwater robot... |
MOQ | 300-500 meters |
Sample term | Free sample on stock with freight collect |
Product lead time | 10-15 working days after payment received |
Shipping lead time | 5-10 working days by DHL/FEDEX/TNT/UPS... |
Payment term | T/T, Paypal, 50% edposit advanced, 50% balance before shippment |
Application
In the industrial application, sophisticated motions increasingly need high flexible cable that can be twisted. It requires copper
core, shielding and sheath material must withstand the extrusion force and radial pressure caused when cable bends and twists. PUR
sheath material significantly protects the inside components from damage when the cable is twisted. This cable is suitable for
industrial robot, manipulator arm and other movable applications. As per testing results, the maximum torsion angle can be 270°and
bending cycle is 3 million times.
Construction
Conductor: Fine stranded bare/tinned copper acc. to EN 60228 standard.
Wire gauge: 28AWG to 4AWG
Insulation: PE
Shielding: Tinned copper braiding
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: low adhesive PUR (polyurethane)
Sheath color: TBD
Technical data
Rated voltage: 300/500V (Acc. to DIN VDE 0245)
Testing volatge: 2000V (Acc. to DIN VDE 0281-2)
Temperature range: -25℃ till +80℃
Operating temperature: -25℃ till +80℃
Bending radius: Fixed installation 4xOD, In motion 10xOD
Movable speed: 180°/S
Oil resistance: Yes (Acc. to DIN EN 50363-10-2)
In the industrial application, sophisticated motions increasingly need high flexible cable that can be twisted. It requires copper
core, shielding and sheath material must withstand the extrusion force and radial pressure caused when cable bends and twists. PUR
sheath material significantly protects the inside components from damage when the cable is twisted. This cable is suitable for
industrial robot, manipulator arm and other movable applications. As per testing results, the maximum torsion angle can be 270°and
bending cycle is 3 million times.
Construction
Conductor: Fine stranded bare/tinned copper acc. to EN 60228 standard.
Wire gauge: 28AWG to 4AWG
Insulation: PE
Shielding: Tinned copper braiding
Core color: TBD acc. to DIN 47100 standard.
Outer sheath: low adhesive PUR (polyurethane)
Sheath color: TBD
Technical data
Rated voltage: 300/500V (Acc. to DIN VDE 0245)
Testing volatge: 2000V (Acc. to DIN VDE 0281-2)
Temperature range: -25℃ till +80℃
Operating temperature: -25℃ till +80℃
Bending radius: Fixed installation 4xOD, In motion 10xOD
Movable speed: 180°/S
Oil resistance: Yes (Acc. to DIN EN 50363-10-2)
Product Applications
Floating cable, neutrally buoyant tether used in underwater drone, ROV.
Umbilical tether used in pipe robot, pipe crawler, sewer cleaner. Cable the the feature of anti-twist.
Flexible cable used in robot arm. Derul cable the feature of anti-twist, anti-flame, waterproof, etc.
Derul cable drag chain cables. High flexiblity, anti-twist, oil and cold resistance.
Derul Cable used in crane and lifting system.
.Derul reel cable used in oil and gas industrial
