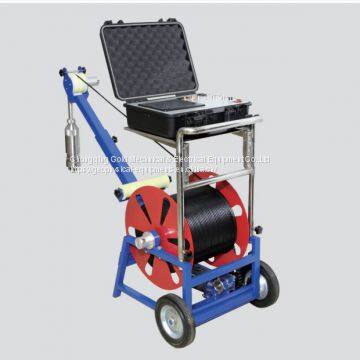

Help CenterIndustrial 300 Meter Borehole Camera for Oil Well Inspection System
Related Products
-
Underground Borehole Inspection Camera With 75mm Diameter Camera With 120m to 3000m CableUS$ 100 - 200MOQ: 1 Unit -
Hot Selling Borehole Inspection Camera 500m Down Hole Video Camera PriceUS$ 3600 - 6600MOQ: 1 Set
-
GYGD-III Panoramic Underground Water Well Borehole Inspection Camera 100m-1000mUS$ 2430 - 5000MOQ: 1 Set
-
Underground Water Well Inspection Borehole Camera / Sewer Inspection CameraUS$ 2430 - 5000MOQ: 1 Set
-
Vertical Hole Inspection Camera Downhole & Borehole Camera China SuppliersUS$ 2430 - 5000MOQ: 1 Set
Technical Specification
1. Hole type: vertical, slant hole.
2. Depth: 0-2000m.
3. Camera resolution: 850TVL. Automatic focus, manual focus(optional), 360° rotation, freely control, can stay in any position.
4. Pressure: Max. 15Mpa.
5. Probe diameter: φ40-120mm. Panoramic and rotary types are changeable.
6. Cable tensile strength: 250kg.
7. Power supply: AC 220V50Hz (DC12/24V optional)
8. LED display: 8 inch 4:3, 1024*768 pixel.
9. Storage: SD card/U disk, standard 16G SD card, 32G optional.
10. Sensor: Sony 1/3 inch CCD, 0.1 lux.
11. Light: 8pcs LED lights, bulb luminance adjustable.
Application
1. Water well
2. Oil & gas well
3. Ocean engineering
4. Engineering construction
5. Underground pipe inspection
6. Well maintenance and repair
7. Coal borehole inspection
8. Mineral borehole inspection
9. Other application
Function
1. To inspection the water leakage of the well.
2. To imaging the blockage of the well.
3. To help the repair of the well.
4. Provide broadcast quality video of the underwater world, back to the surface from up to within 1000m below.
5. This camera can be viewed in real time or recorded for later viewing.
Feature
1. Super high resolution color picture.
2. Low light operation.
3. Led underwater light.
4. Stainless steel housing.
5. Military grade water tightness cable.
6. Ability to attach up to deep place and stand large pressure of water.

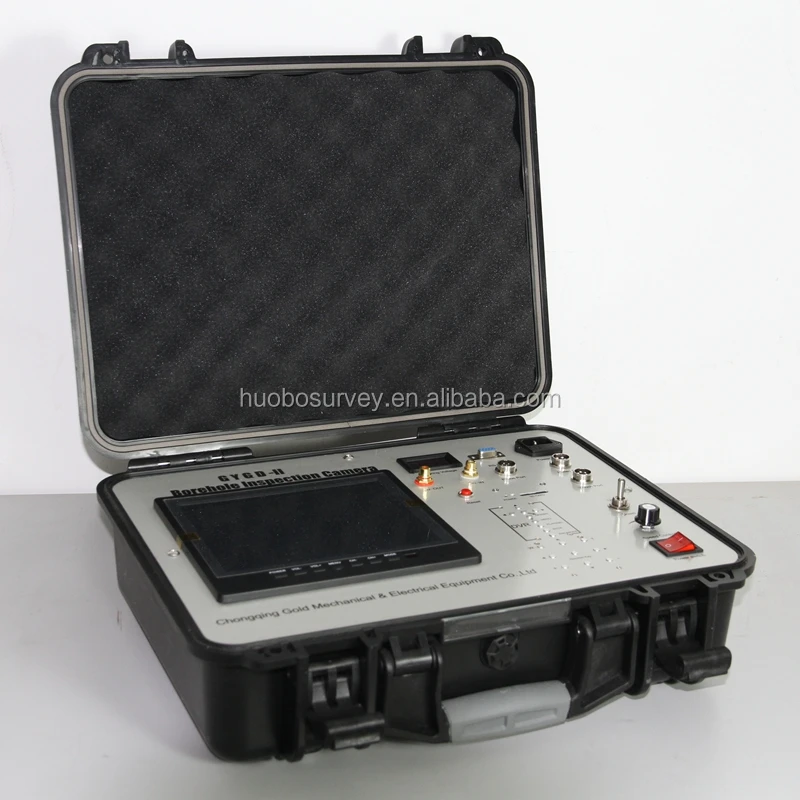

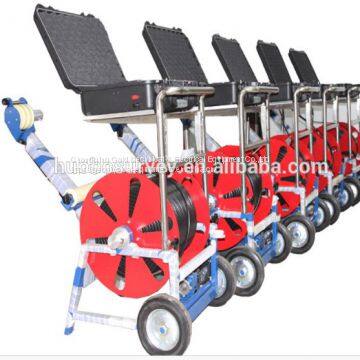

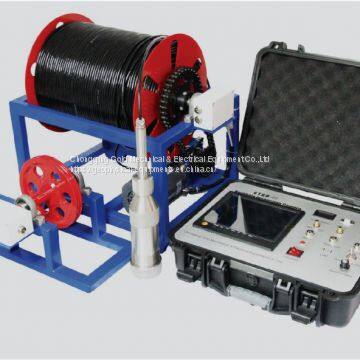

Product Show
Packing
Produst Testing
About Us
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Imaging, Seismic Instrument, Magnetic Instrument, Borehole Camera, Borehole Logger, Water Level Meter; Borehole Drilling Equipment&Accessory and Geodetic Surveying Instrument.
