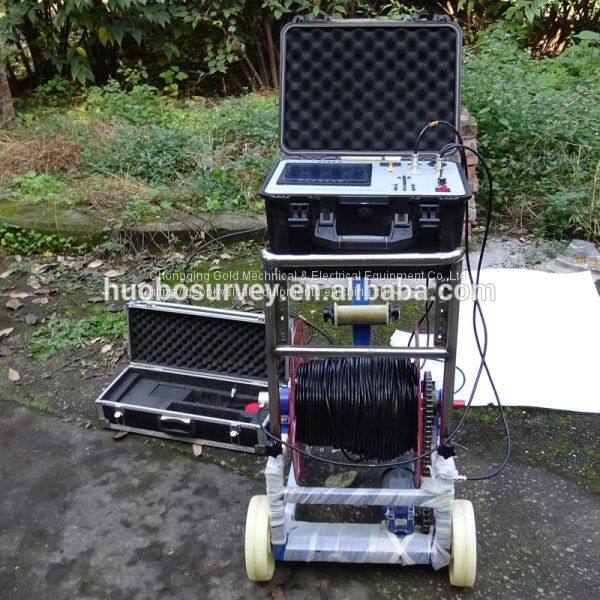

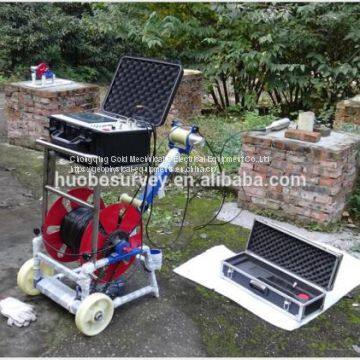

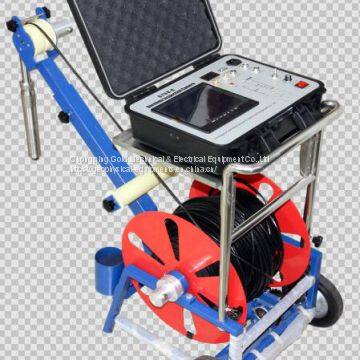

GYGD Borehole Well Inspection Camera Water Well Inspection Camera
Technical Parameters
Hole Type |
Vertical, Slant Hole |
Depth |
0-2000m |
Camera Resolution |
850TVL |
Pressure |
Max.15Mpa |
Probe Diameter |
Φ40-Φ120mm |
Cable tensile strength |
250KG |
Power |
AC 220V50Hz(DC12/24V Optional) |
LED Display |
8 Inch 4:3, 1024×768 Pixel |
Storage |
SD Card/ U Disk, Standard 16G SD Card, 32G Optional |
Sensor |
Sony 1/3 Inch CCD, 0.1Lux |
Application
It is suitable for engineering geology, hydrogeology, geological prospecting, mining department; suitable for vertical holes, and inclined holes, anchor cables (rods) holes, geological drilling and concrete drilling, etc., can be stored as video images Permanently stored, especially suitable for places where geological data cannot be obtained by electrical and seismic instruments.
1. Used in engineering hydrogeology: observation of various features and subtle structures of geological bodies in boreholes, such as stratigraphic lithology, rock structures, faults, fissures, interlayers, karst, etc.
2. For mineral geology: observation of ore vein thickness.
3. For concrete: Observe the location and extent of defects such as voids and cracks in concrete.
4. Used for pile foundation: observe various anomalies and defects in the pile, analyze joint quality and fracture, fracture, length of crack, etc.
5. For underground pipelines: observe the contents of the pipeline, analyze the cracks and fractures of the pipeline, the location, length and etc.
6. Used for water well maintenance: detecting cracks, misalignment, falling objects in the well wall, plugging of the water filter hole and the position of the sand flow
