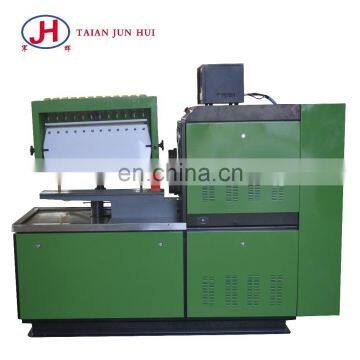

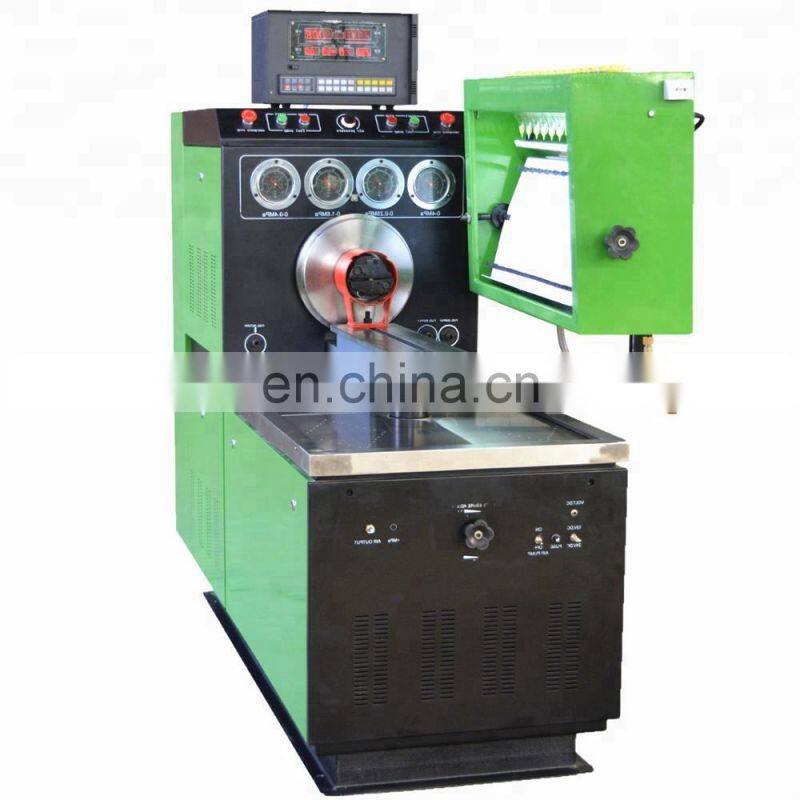

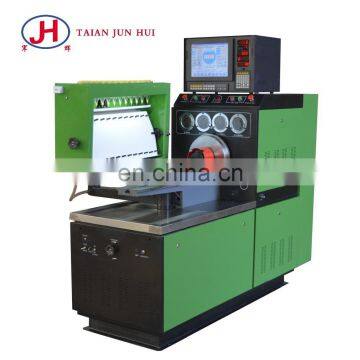

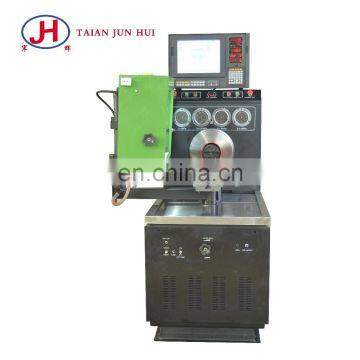

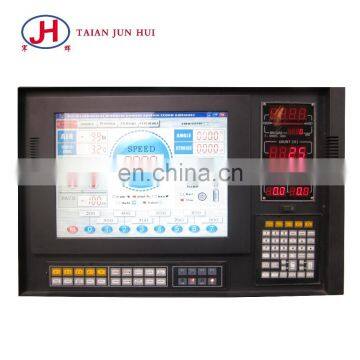

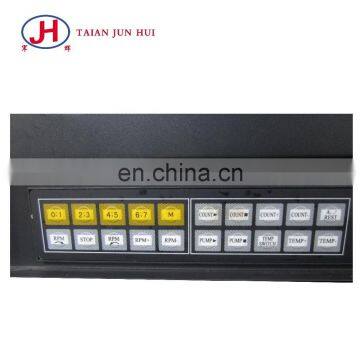

JH-EMC Fuel Injection Pump Test Bench Diesel Pump Test Bench

JH-EMC fuel injection pump test bench diesel pump test bench

Function:

1.Measuring each cylinder's injected oil quantity at various rotation speeds;
2.Checking each cylinder's injection time statically;
3.Checking the mechanical speed governor;
4.Checking the electromagnetic valve of distribution pumps;
5.Checking the pneumatic speed governor's performance;
6.Checking the pressure compensator's performance;
7.Measuring the returned oil quantity of distribution pumps;
8.Measuring the internal pressure of the distribution pump body;
9.Checking the pneumatic speed governor' s vacuum performance;
10.Measuring rack travel;
11.Measuring advance angle;
12.Checking the sealing of fuel injection pump body.

Technical Parameters:
1. Adjustable rotation speed range:0~4000RPM
2. Double series of graduates:45cc and 1500cc (optional)
3. Volume of oil tank:60L
4. Temperature stabilization:40±2℃
5. Test oil filtering unit:5μ
6. DC supply:12V/24V
7. Fuel feed pressure:low: 0~0.4MPa, high: 0~4Mpa
8. Air pressure:0~0.3MPa, -0.03~0Mpa
9. 3-phase power supply:380V/50Hz or according to requirements
10. Flywheel inertia's moment:0.8KG·M2
11.Center height:125MM
12.Output power:7.5KW, 11KW, 15KW or according to requirements
13.Overall dimensions(MM):1800×900×1740
14. Test bench steering:Forward/reverse
15.Net weight(KG):900kg

Accessories:

1. Guarantee Time: 12 month
2. Professional manufacture of test bench since 1998 . Quality and quantity guaranteed
3. Specialized after-sales team offer technology support .Training how to install the machine, training how to use the machine. Extra spare parts are attached with order for stock accessories.
4. Fast delivery and good quality control team to ensure timely delivery.

Is Safe For Me To Place The Order On Alibaba ?

Our Company Is Premium Member On Alibaba . Alibaba Trade Assurance Will Protect Your Order Till You Receive The Machine Safely And In Good Quality.

We can provide the JH-EMC fuel injection pump test bench diesel pump test bench electronic edition certificates if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates.

1. What's your MOQ ?
MOQ is one unit ,Welcome to place the sample order to try the quality first .

2. What is the delivery time?
Sample machines can delivery during 3-7 days. Quantity order please contact us check the delivery time

3. Can we put our own logo on the machine?
Yes, we can put your logo or your sticker design on our machine .We accept OEM ODM order .

4. What is the Payment Terms?
Payment can be T/T ,L/C Western union.We recommend place the order on alibaba ,and do payment through Alibaba trade assurance.Alibaba will protect your order till you receive the amchine .

5. What's your warranty ?
Our company offer one year warranty for all machines (extra free parts will send with machine together).
