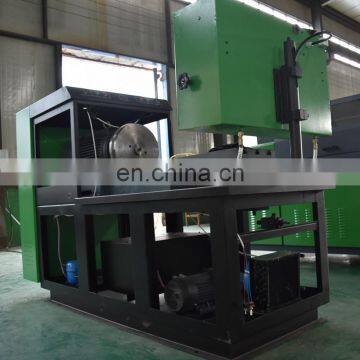

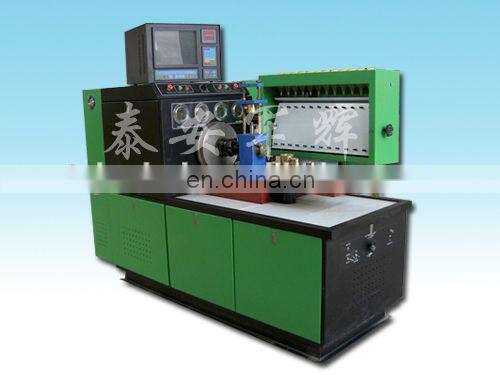

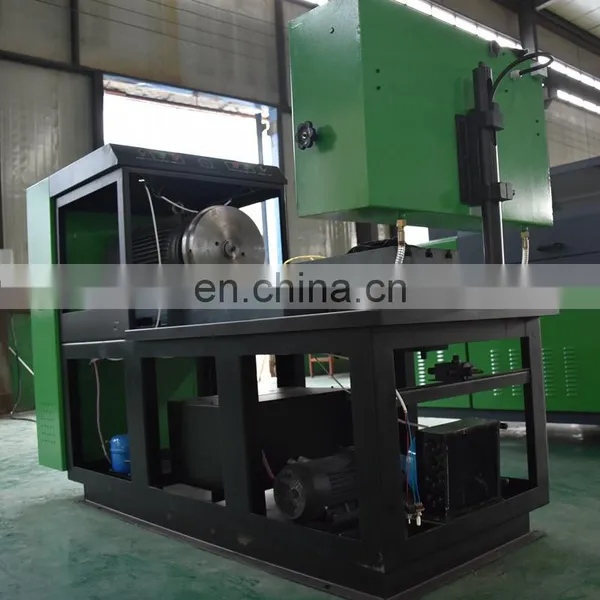

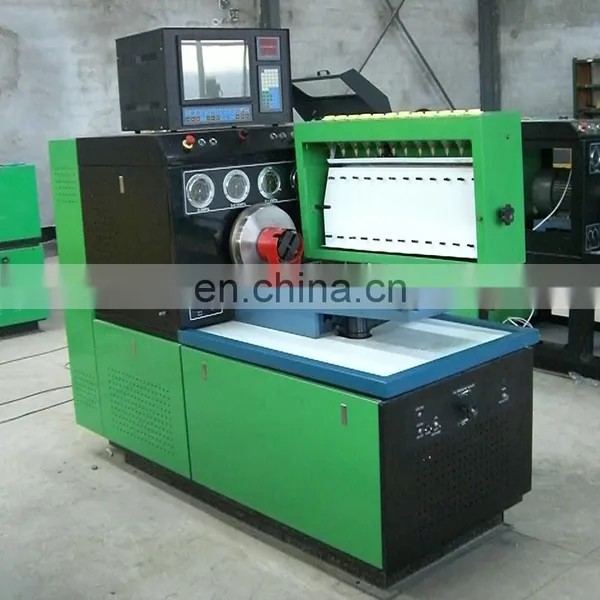

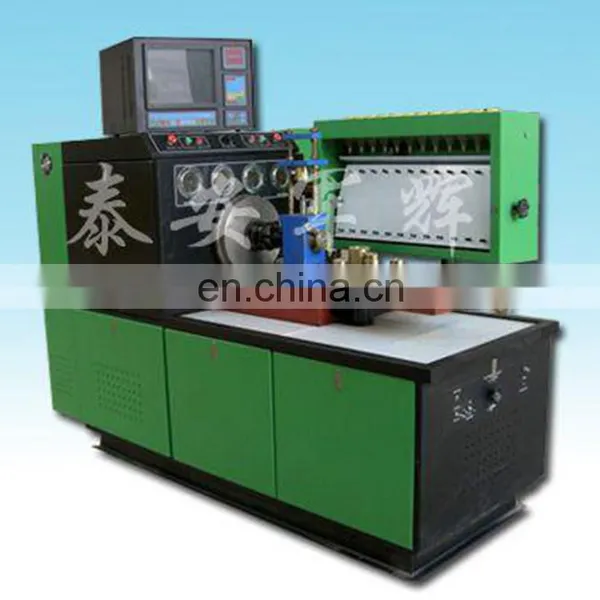

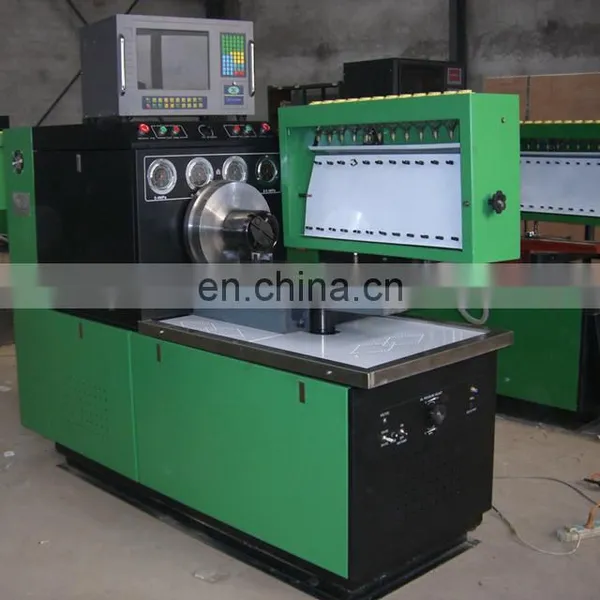

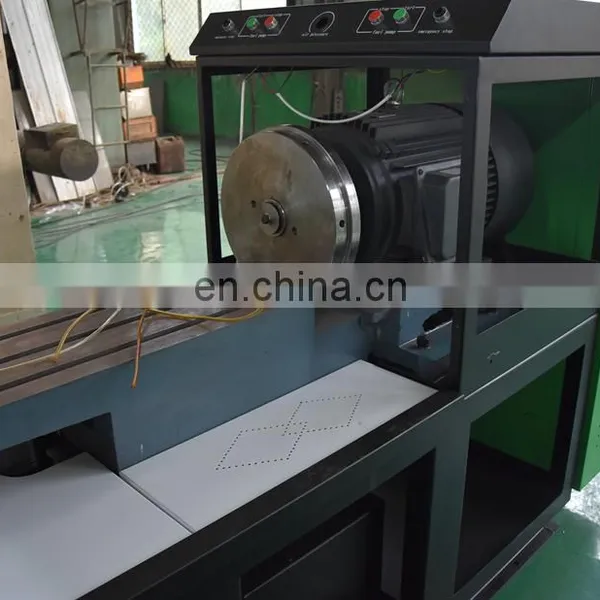

Vessel internal combustion engine Diesel Fuel Injection Pump Test Bench with High Power 30KW

 High Power Diesel Fuel Injection Pump Test Bench for shi and train

(Ⅰ) Characteristics

1. Changing frequency changing rotation speed;

2. Small fall of rotation speed and large output torque;

3. High measurement precision;

4. The functions of overvoltage,overload and short circuit protection;

5. Ten kinds of rotation speeds preseting;

6. Constant temperature controlled;

7. Ultra low noise

8. Operating position: arbitrary side of the two work sides of the test stand;

9. Speed, count, temperature through the digital display table

10. Built-in air resource

(Ⅱ)Function

1. Measurement of each cylinder’s delivery at various rotation speeds;

2. Checking of each cylinder’s injection time with static state;

3. Checking of the mechanical speed governors;

4. Checking of the electricmagnetic valve of distributor pumps;

5. Checking of the pneumatic speed governors’oisutuve oressyre performance;

6. Checking of the pressure compensators(LDA)

7. Measurement of the reflux delivery of distributor pumps;

8. Measurement of the internal pressure of the distributor pumps body;

9. Measurement of rack travel

10. Checking of the sealing of fuel injection pump body.

(Ⅲ) Technical Parameters

1. Adjustable rotation speed range: 0~4000RPM

2. Double series of graduates: 45ml,150ml

3. Volume of oil tank: 60L

4. Temperature stabilization: 40±2℃

5. Test oil filtering unit: 5μ

6. D.C.Supply:12V/24V

7. Feed pressure:low: 0~0.4Mpa, high: 0~4Mpa

8. Air pressure: +0~0.3Mpa,

9. 3-phase power supply: 380V/50Hz or on request

10. Flywheel inertia’s moment: 0.8KG·M²

11. Center height: 125mm

12. Output power: 22KW,30KW,45KW or on request

13. Overall dimensions(mm): 2360×960×1870 or on request

14. Net weight(Kg):about 900

Package: Wooden Box ;

Package Dimension(L*W*H)(mm): 2260×1080×1890 ;

Net Weight(Kg): 1300;

Gross Weight(Kg): 1400 ;

Packed 4 units in one 20ft container ;

Loaded in LCL,FLC and shipping by Cargo Ship.

We  provide high quality products and service. And if the machine has problem, you could contact us at any time,we will help you at our best.

Tai’an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.

We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc. We also design and produce different kinds modern testing equipments by client’s requirements.

We acquired ISO 9001:2008 and CE certificate.There are Asia,Africa,Europe,Aemerica clients give high evaluation on our machines.
