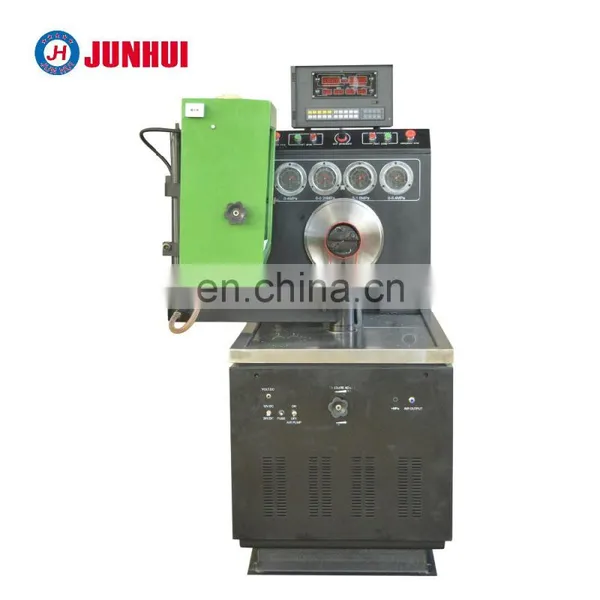

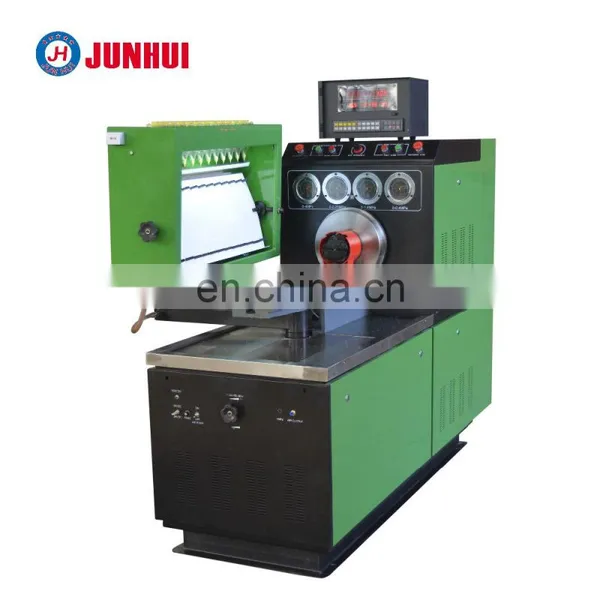

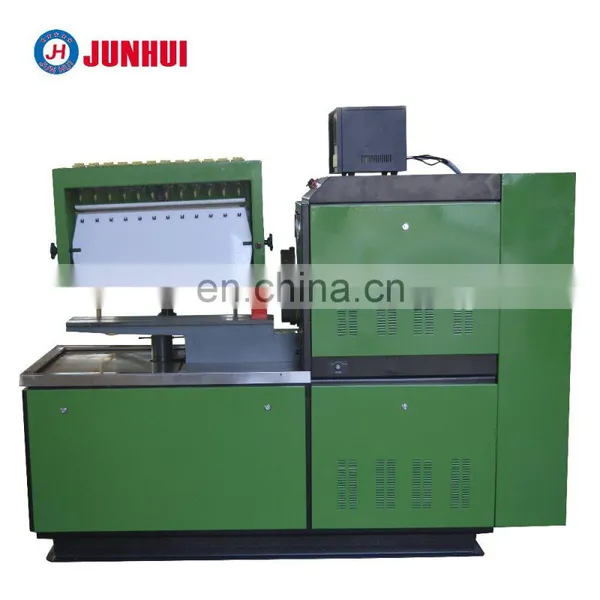

Auto Diagnostic Equipment Diesel Fuel Injection Pump Calibrating Machine
Characteristics
1.Variable frequency speed regulation;
2.Small deceleration and large output torque;
3.High measurement precision;
4.Overvoltage protection, overload protection and short-circuit protection;
5.Ten kinds of rotation speeds presetting;
6.Constant temperature control;
7.Ultra-low noise;
8.Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;

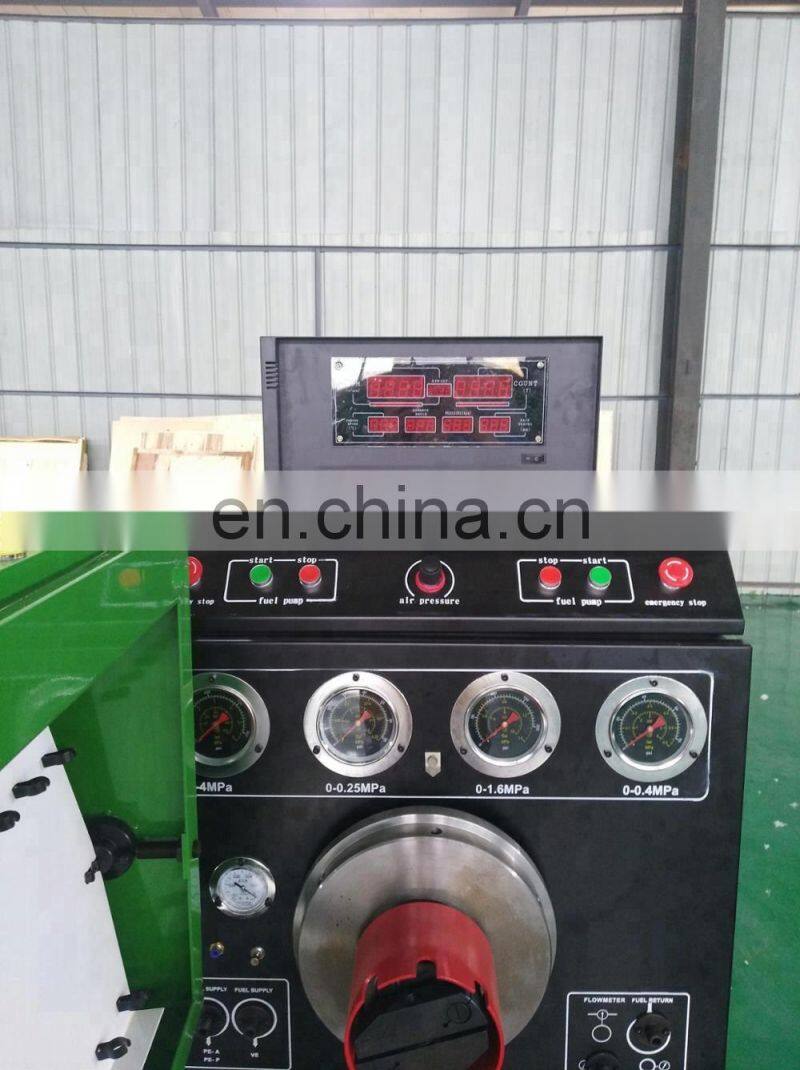

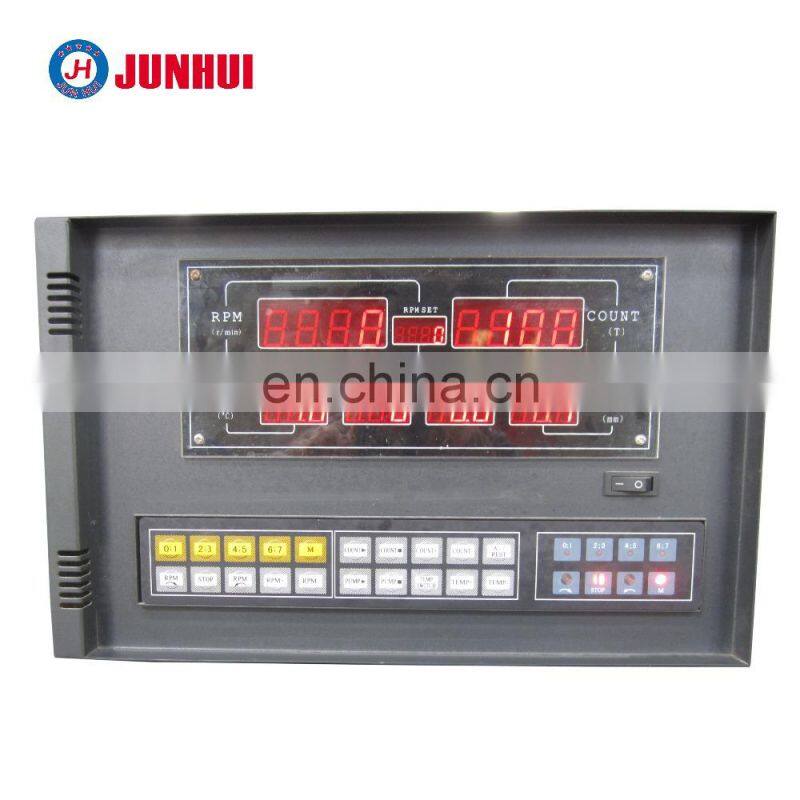

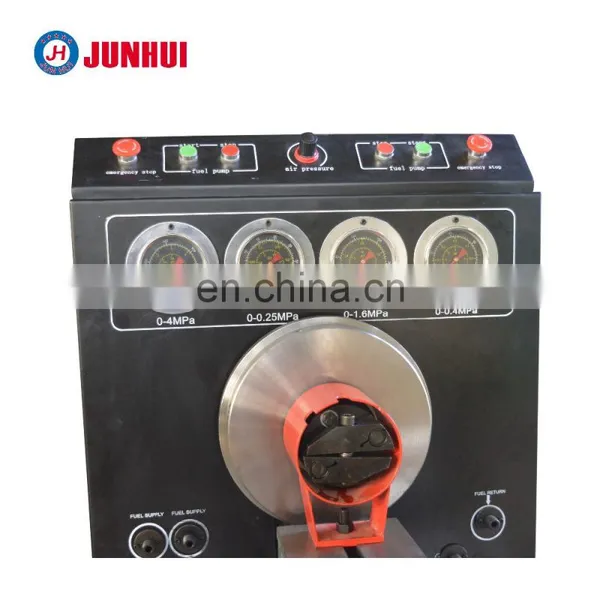

9.Rotation speed, count and temperature are displayed in digit mode, and air pressure is displayed on the mechanical gauge;
10.Built-in air resource.
Function
1.Measuring each cylinder’s injected oil quantity at various rotation speeds;
2.Checking each cylinder’s injection time statically;
3.Checking the mechanical speed governor;
4.Checking the electromagnetic valve of distribution pumps;
5.Checking the pneumatic speed governor’s performance;
6.Checking the pressure compensator’s performance;
7.Measuring the returned oil quantity of distribution pumps;
8.Measuring the internal pressure of the distribution pump body;
9.Checking the pneumatic speed governor’ s vacuum performance;
10.Checking the sealing of fuel injection pump body.
Technical Parameters
1.Adjustable rotation speed range |
0~4000RPM |
2.Double series of graduates |
45ml and 150ml (optional) |
3.Volume of oil tank |
60L |
4.Temperature stabilization |
40±2℃ |
5.Test oil filtering unit |
5μ |
6.DC supply |
12V/24V |
7.Fuel feed pressure |
low: 0~0.4MPa, high: 0~4Mpa |
8.Air pressure |
0~0.3MPa, -0.03~0Mpa |
9.3-phase power supply |
380V/50Hz or according to requirements |
10.Flywheel inertia’s moment |
0.8KG·M2 |
11.Center height |
125mm |
12.Output power |
7.5KW, 11KW, 15KW or according to requirements |
13.Overall dimensions(mm) |
2360×960×1870 or according to requirements |
14.Net weight(Kg) |
1300kg |
Packed in Wooden Box
Package Dimension: 2200mm*1080mm*1890mm
Package Weight: 1000 Kg
Pack 5 sets in one 20ft container
Tai’an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.
We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc. We also design and produce different kinds modern testing equipments by client’s requirements.
