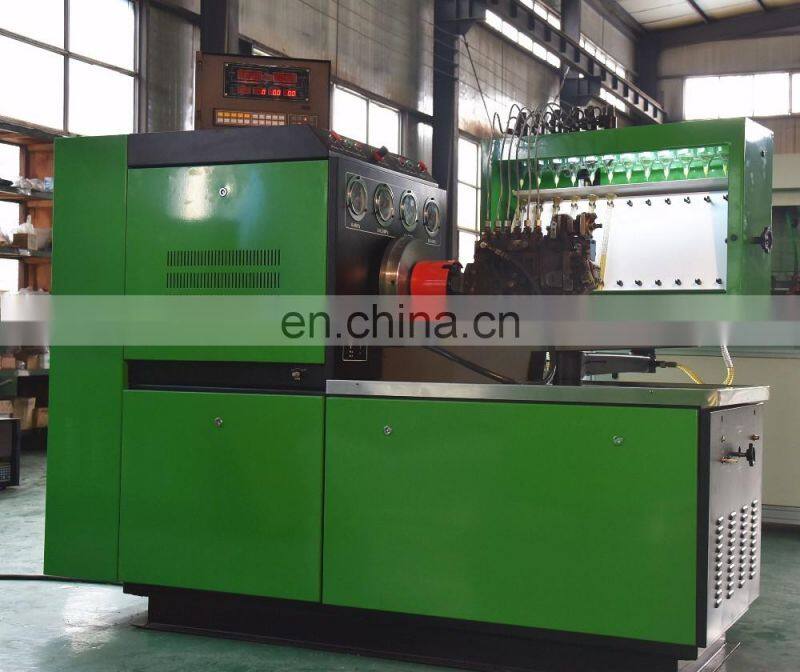

High Quality Diesel Pump Calibration Machine 12psb Diesel Injection Test Bench

Name: High Quality Diesel Pump Calibration Machine 12psb Diesel Injection Test Bench
Brand: Junhui
Availability: InStock

FOB Price

US$ 2,600 - 3,500 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Junhui	Place of Origin	Shandong, China
Model Number	12PSB	Power	Electronic
Usage	Auto Testing Machine

Packaging Details

Plywood case

Product Description

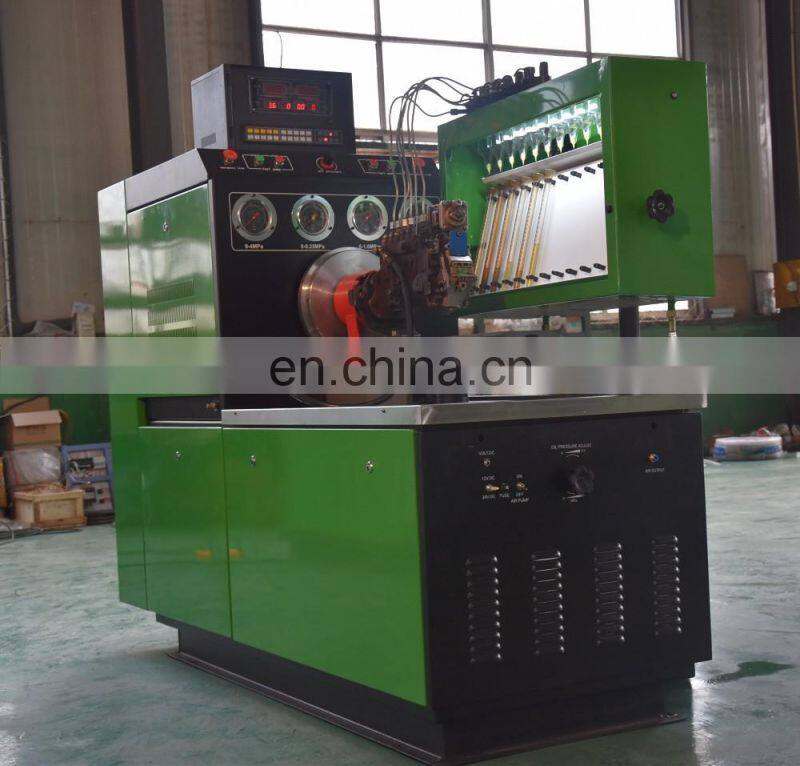

High Quality Diesel Pump Calibration Machine 12psb

Characteristics

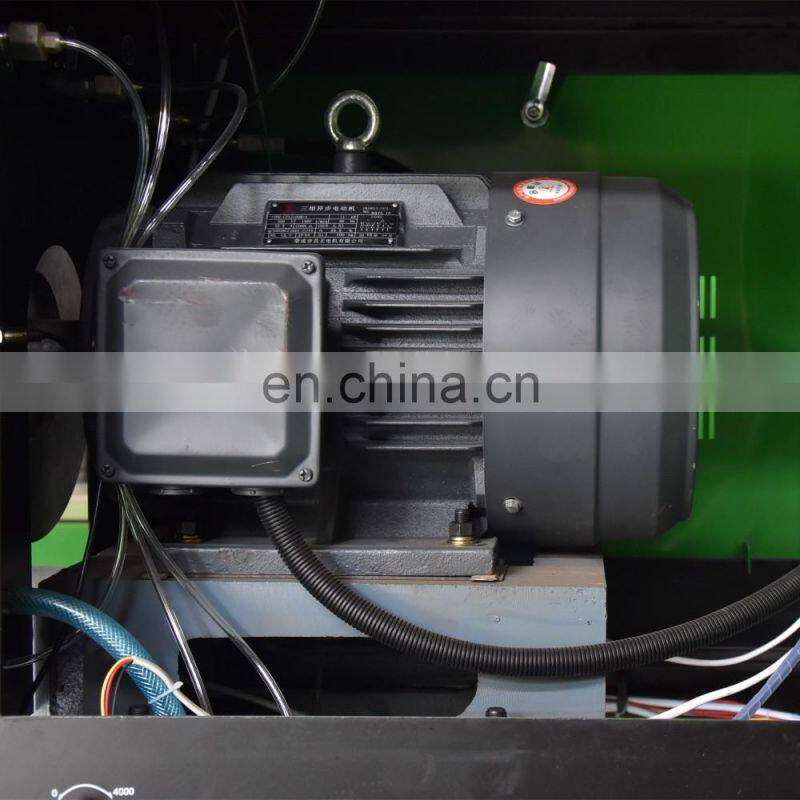

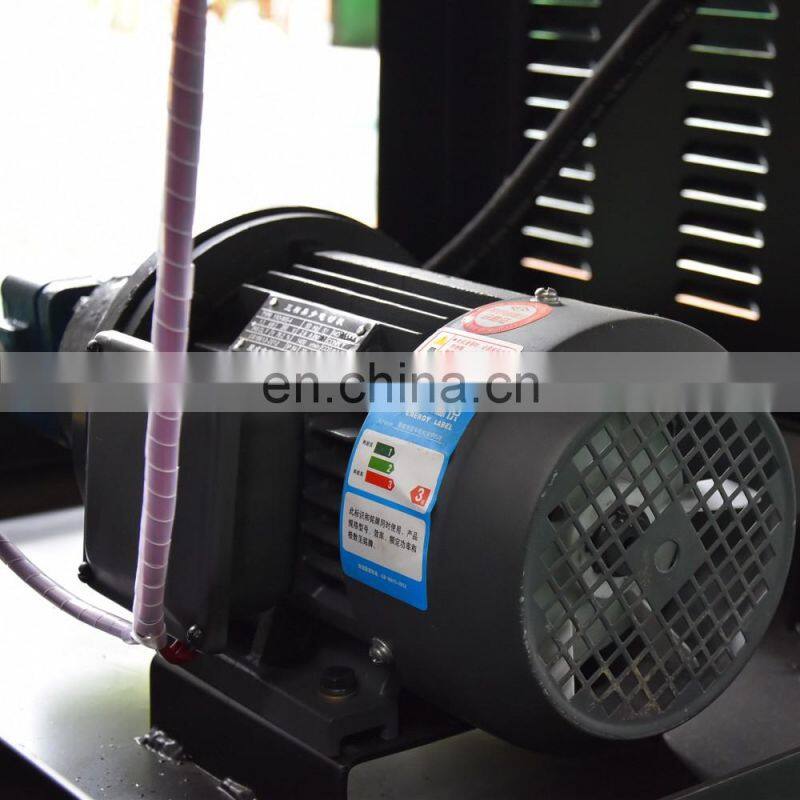

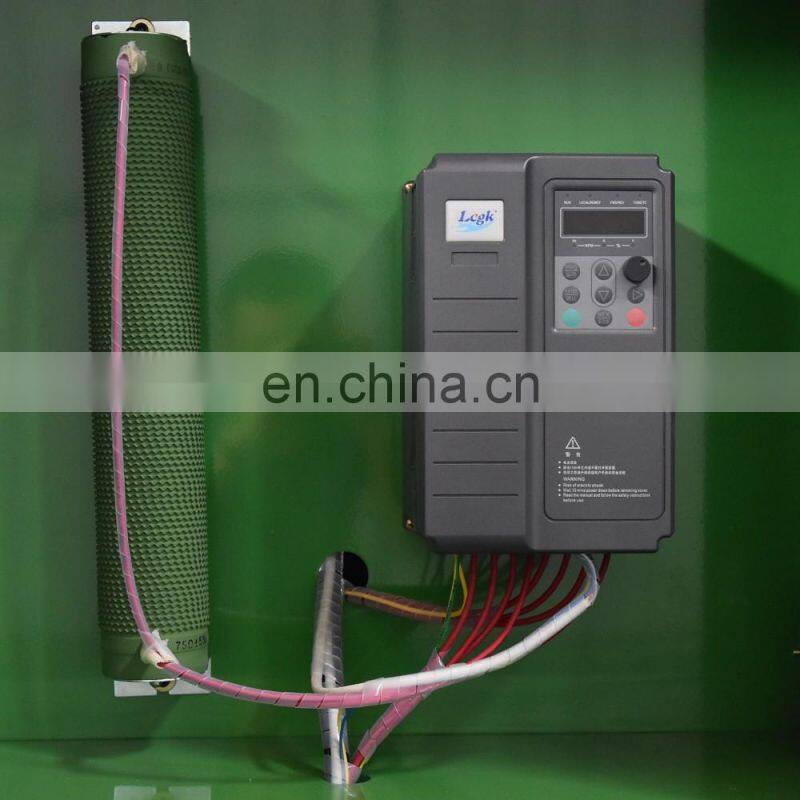

1.Variable frequency speed regulation;

2.Small deceleration and large output torque;
3.High measurement precision;
4.Overvoltage protection, overload protection and short-circuit protection;
5.Ten kinds of rotation speeds presetting;
6.Constant temperature control;
7.Ultra-low noise;
8.Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;

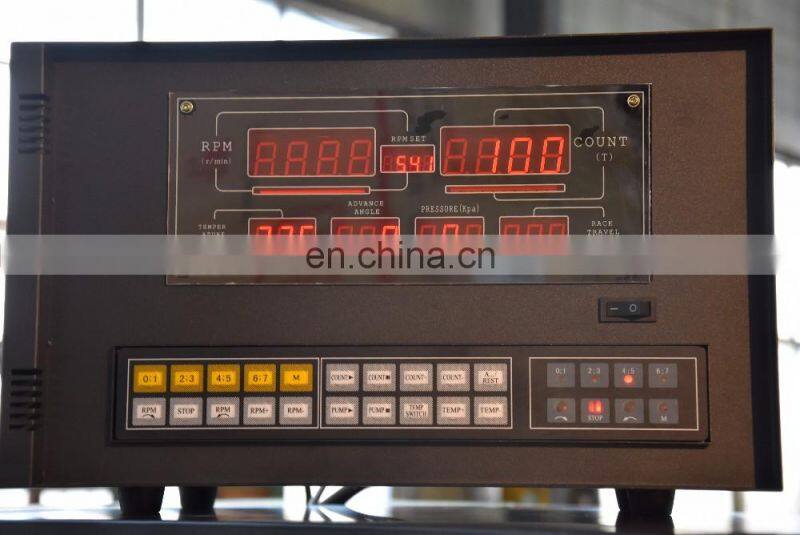

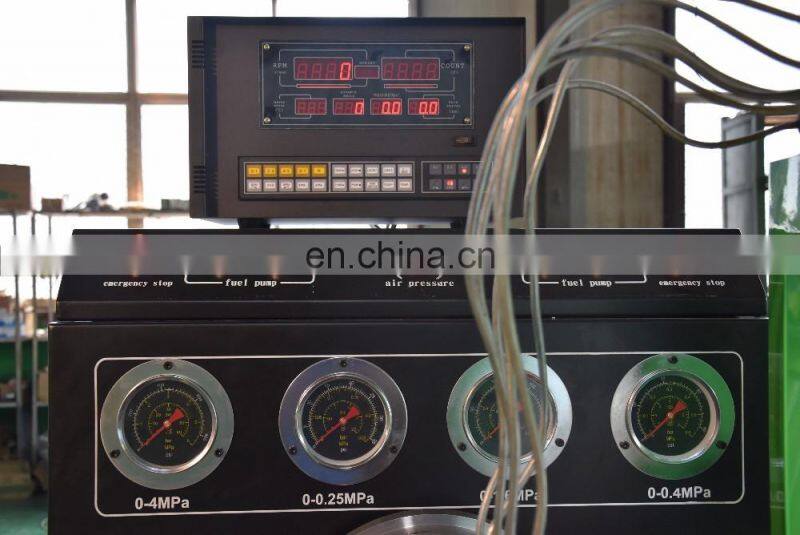

9.Rotation speed, count and temperature are displayed in digit mode, and air pressure is displayed on the mechanical gauge;
10.Built-in air resource.

SPECIFICATIONS FOR High Quality Diesel Pump Calibration Machine 12psb
Adjustable rotation speed range	0~4000RPM	Air pressure	0~0.3MPa, -0.03~0Mpa
Double series of graduates	45cc and 1500cc (optional)	3-phase power supply	380V/50Hz or according to requirements
Volume of oil tank	60L	Flywheel inertia's moment	0.8KG•M2
Temperature stabilization	40±2℃	Center height	125MM
Test oil filtering unit	5μ	Output power	7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW
DC supply	12V/24V	Overall dimensions(MM)	1800×900×1740
Fuel feed pressure	low: 0~0.4MPa, high: 0~4Mpa	Weight	800kg

Functions

1.Measuring each cylinder's injected oil quantity at various rotation speeds;

2.Checking each cylinder's injection time statically;
3.Checking the mechanical speed governor;
4.Checking the electromagnetic valve of distribution pumps;
5.Checking the pneumatic speed governor's performance;
6.Checking the pressure compensator's performance;
7.Measuring the returned oil quantity of distribution pumps;
8.Measuring the internal pressure of the distribution pump body;
9.Checking the pneumatic speed governor' s vacuum performance;
10.Checking the sealing of fuel injection pump body.

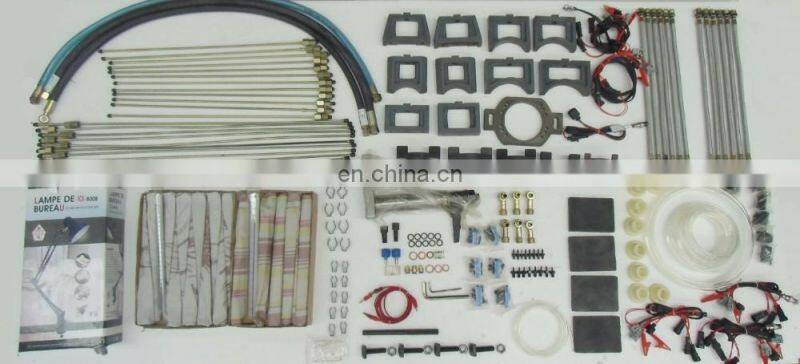

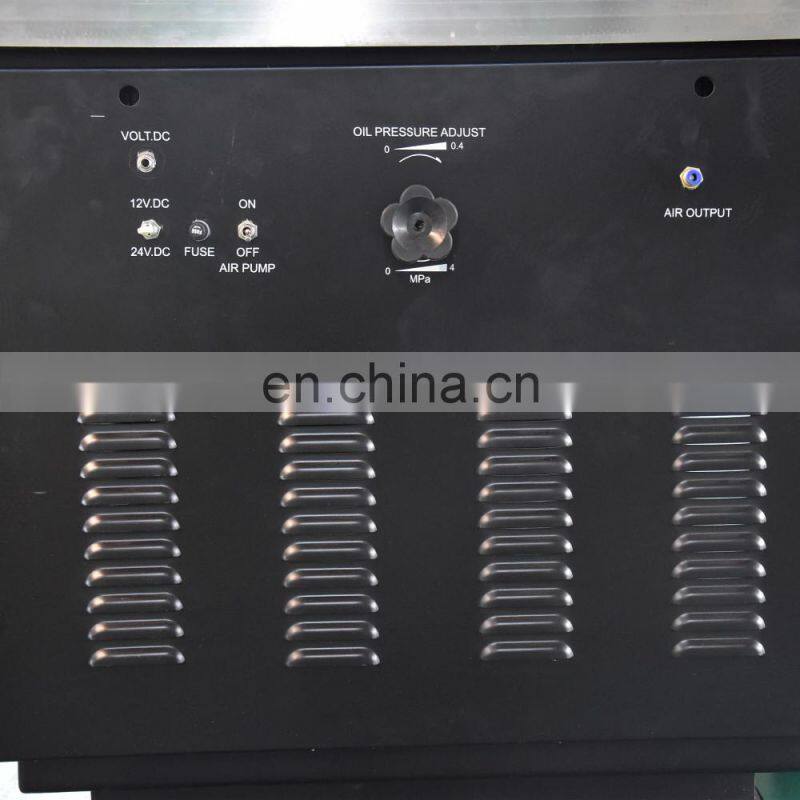

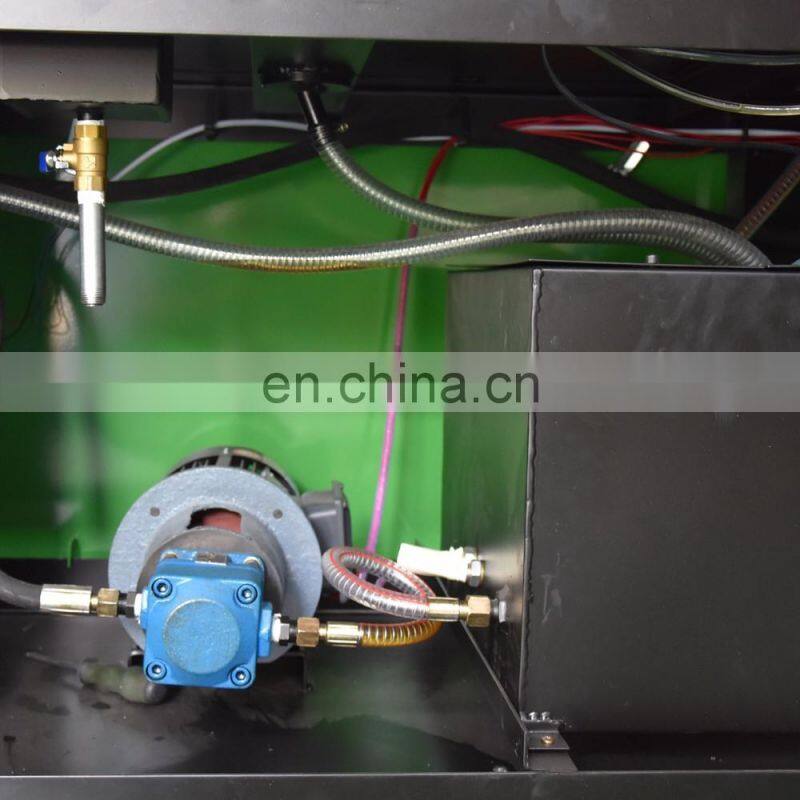

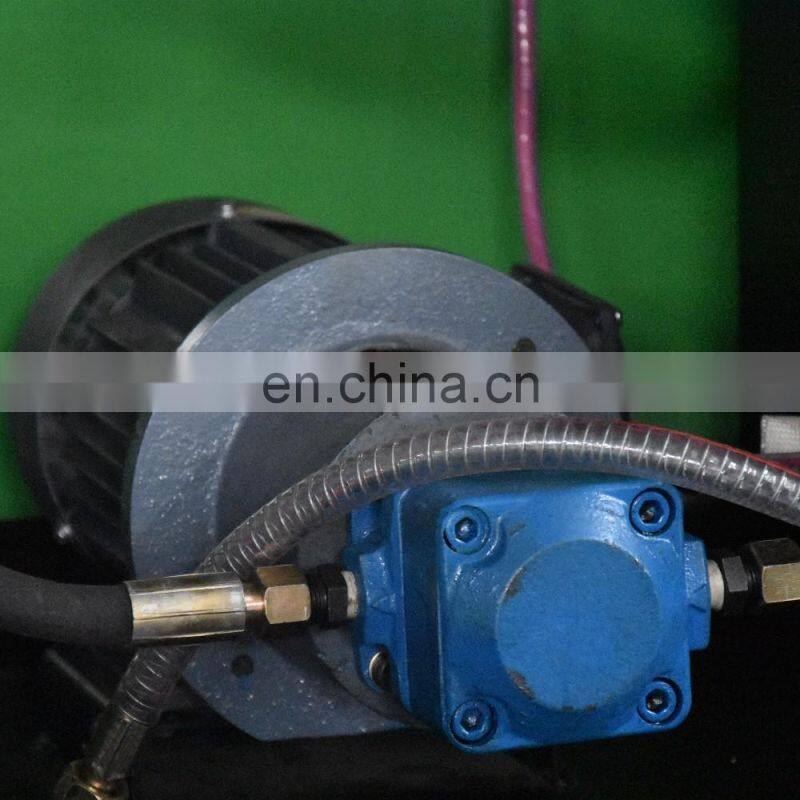

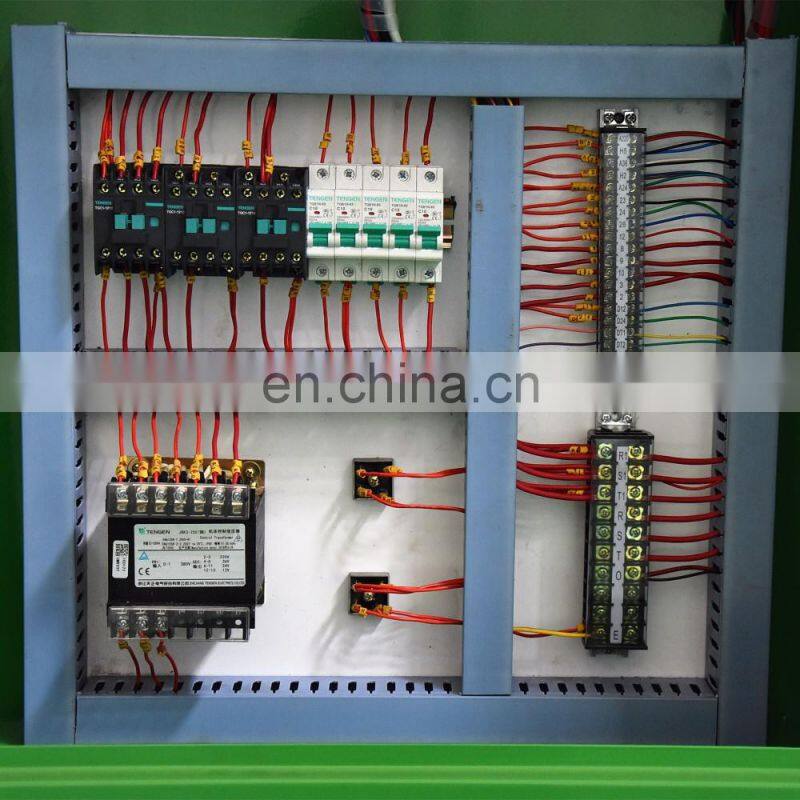

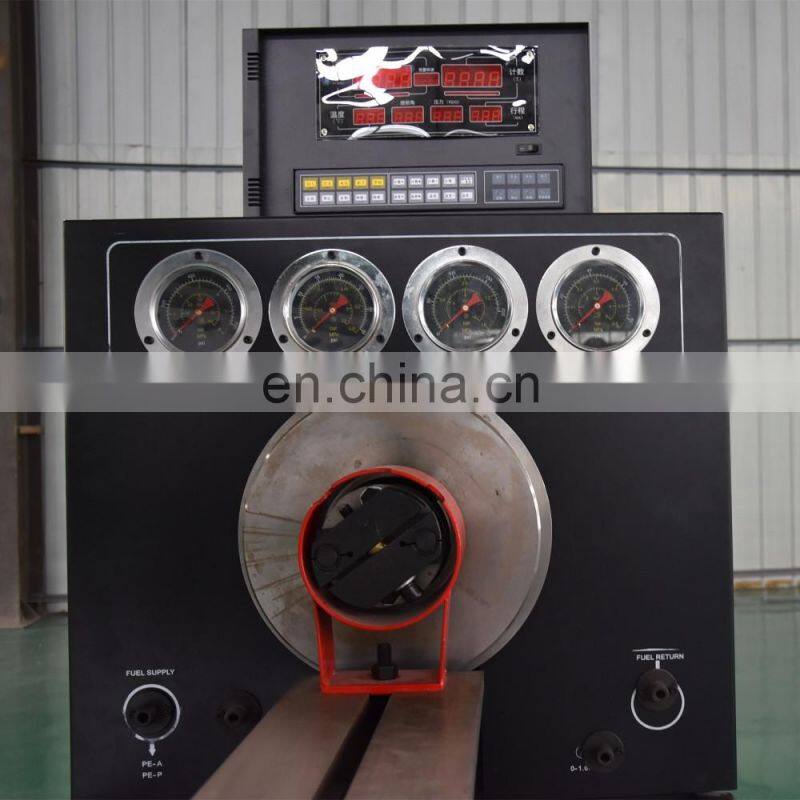

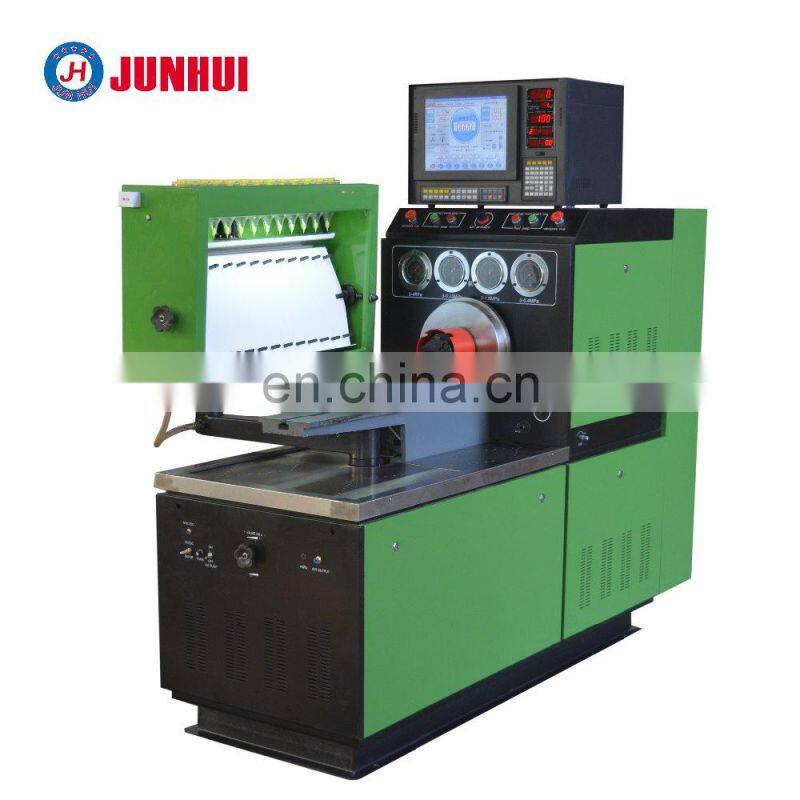

Detailed Images

Pre-Sales Service

* Inquiry and consulting support.

* We are professional manufacturer.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* 48H release testing

Packing & Delivery

• It's packed by plywood case.
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
