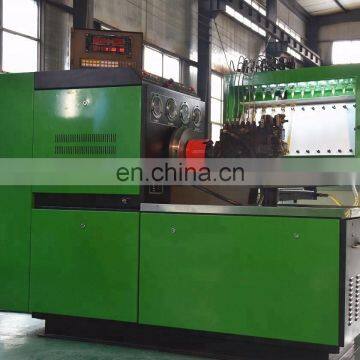

diesel calibrating machine Fuel Injection Pump Test Stand for Chile Peru
Characteristics
1. Variable frequency speed regulation;
2. Small deceleration and large output torque;
3. High measurement precision;
4. Overvoltage protection, overload protection and short-circuit protection;
5. Ten kinds of rotation speeds presetting;
6. Constant temperature control;
7. Ultra-low noise;
8. Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;
9. Rotation speed, count, temperature, air pressure, advance angle and rack travel are displayed on 15-inch LCD;
10. Built-in air resource.
Function
1. Measuring each cylinder’s injected oil quantity at various rotation speeds;
2. Checking each cylinder’s injection time statically;
3. Checking the mechanical speed governor;
4. Checking the electromagnetic valve of distribution pumps;
5. Checking the pneumatic speed governor’s performance;
6. Checking the pressure compensator’s performance;
7. Measuring the returned oil quantity of distribution pumps;
8. Measuring the internal pressure of the distribution pump body;
9. Checking the pneumatic speed governor’ s vacuum performance;
10. Measuring rack travel;
11. Measuring advance angle;
12. Checking the sealing of fuel injection pump body.
Technical Parameters
1. Adjustable rotation speed range: |
0~4000RPM |
2. Double series of graduates: |
45cc and 1500cc (optional) |
3. Volume of oil tank: |
60L |
4. Temperature stabilization: |
40±2℃ |
5. Test oil filtering unit: |
5μ |
6. DC supply: |
12V/24V |
7. Fuel feed pressure: |
low: 0~0.4MPa, high: 0~4Mpa |
8. Air pressure: |
0~0.3MPa, -0.03~0Mpa |
9. 3-phase power supply: |
380V/50Hz or according to requirements |
10. Flywheel inertia’s moment: |
0.8KG·M2 |
11. Center height: |
125MM |
12. Output power: |
7.5KW, 11KW, 15KW or according to requirements |
13.Overall dimensions(MM): |
2360×960×1870 or according to requirements |
14. Net weight(KG): |
1300kg |

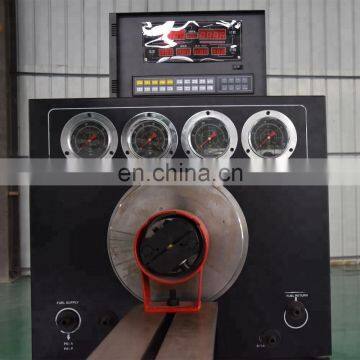

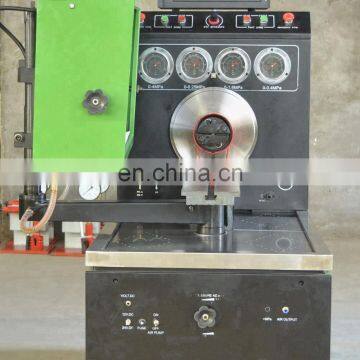

Digital Instrument
Digital Instrument and Pressure Gauges
AC Driver/Inverter/Convertor
Packed in Woonden Box;
Package size: 2360mm*960mm*1870mm
Package Weight: 1000KG
Shipping by ship
Tai’an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.
We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc.
