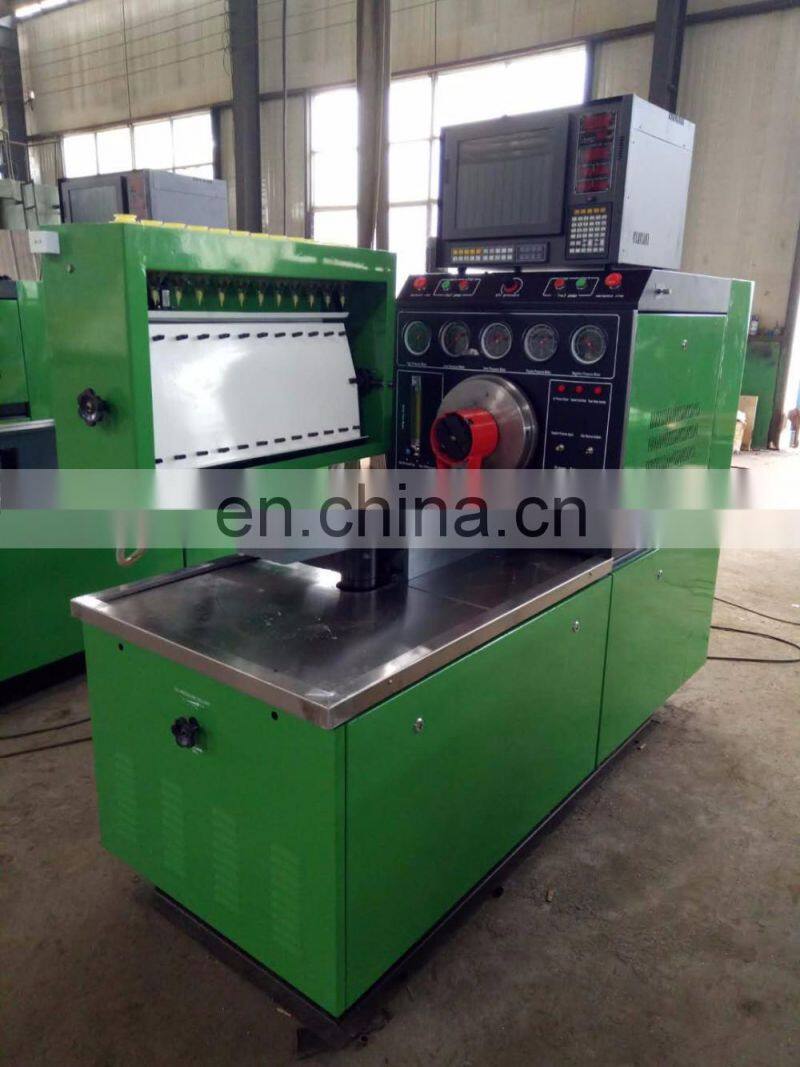

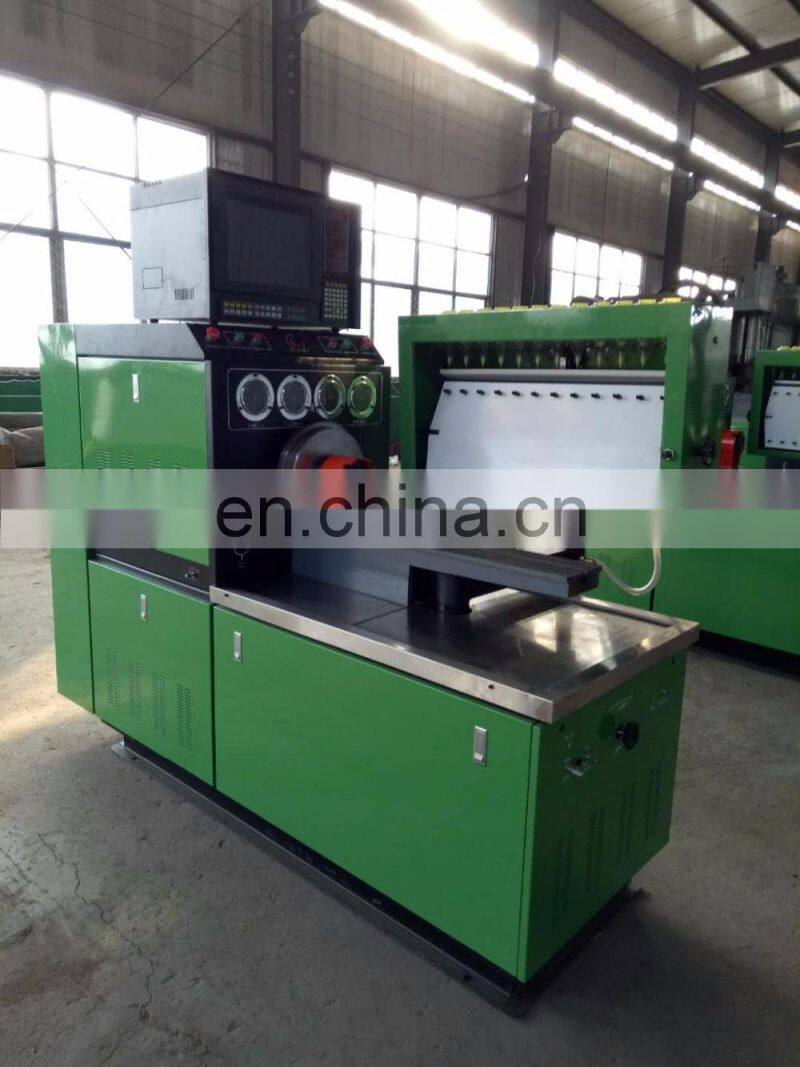

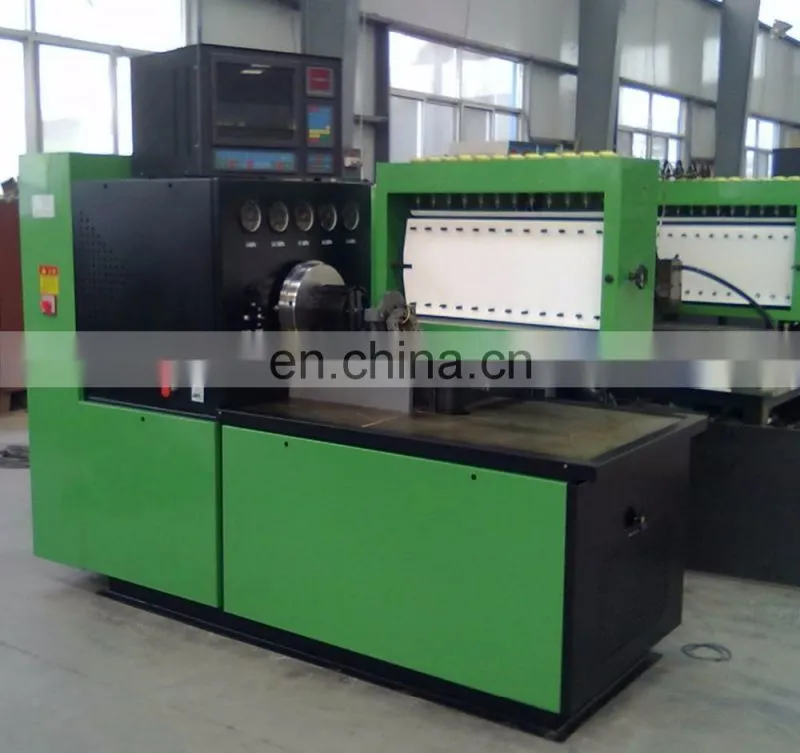

CE Diesel engine fuel injection pump inspection and maintenance test bench
Characteristics

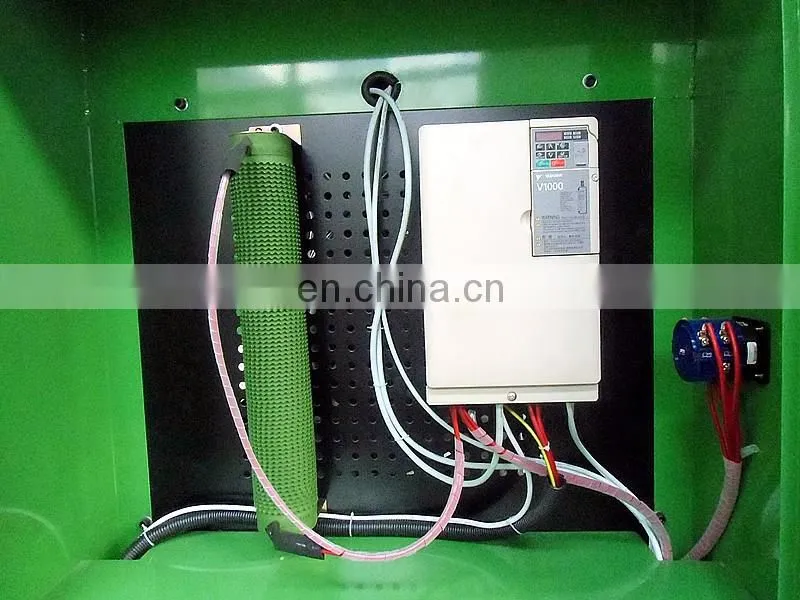

1. Variable frequency speed regulation;
2. Small deceleration and large output torque;
3. High measurement precision;

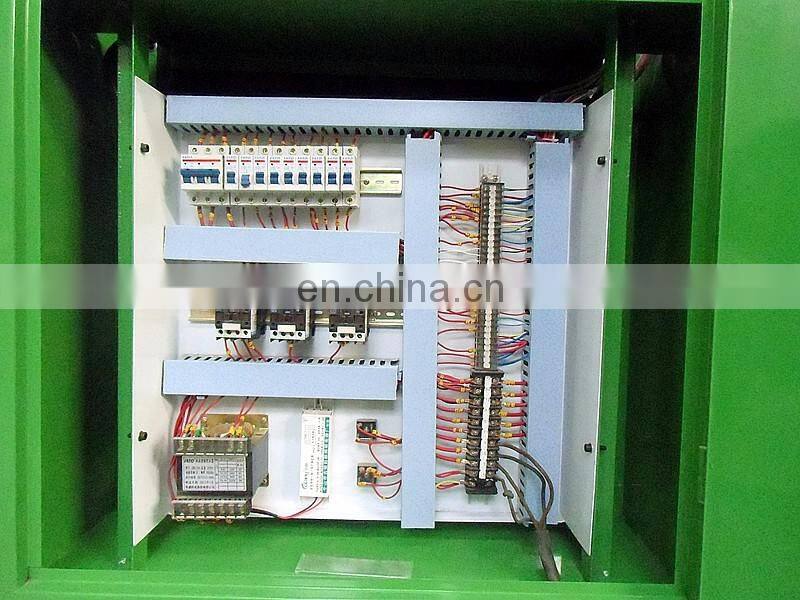

4. Overvoltage protection, overload protection and short-circuit protection;
5. Ten kinds of rotation speeds presetting;
6. Constant temperature control;
7. Ultra-low noise;
8. Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;

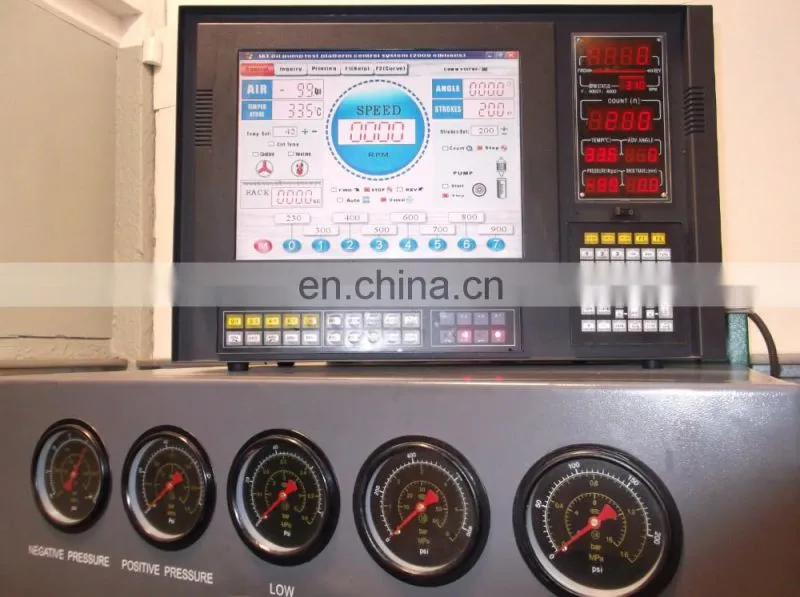

9. Rotation speed, count, temperature, air pressure, advance angle and rack travel are displayed on 15-inch LCD;
10. Built-in air resource.
Function

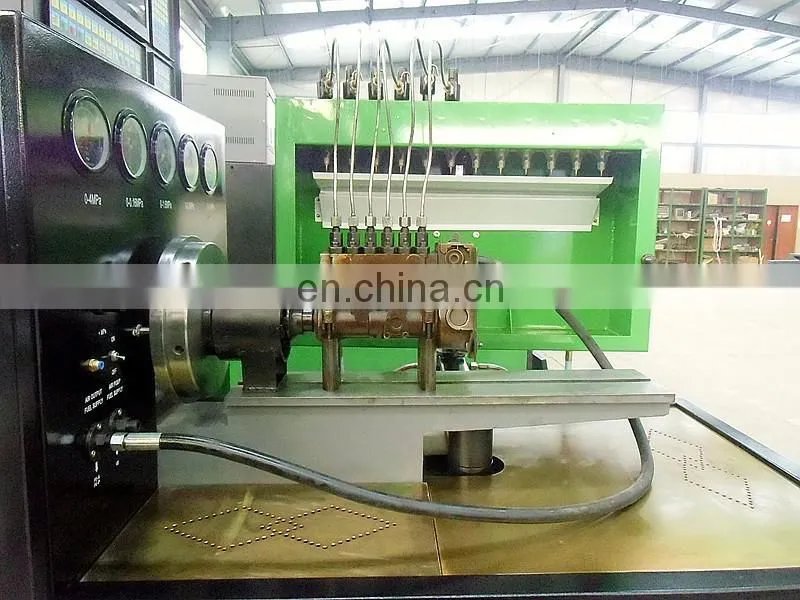

1. Measuring each cylinder’s injected oil quantity at various rotation speeds;
2. Checking each cylinder’s injection time statically;
3. Checking the mechanical speed governor;
4. Checking the electromagnetic valve of distribution pumps;
5. Checking the pneumatic speed governor’s performance;
6. Checking the pressure compensator’s performance;
7. Measuring the returned oil quantity of distribution pumps;
8. Measuring the internal pressure of the distribution pump body;
9. Checking the pneumatic speed governor’ s vacuum performance;
10. Measuring rack travel;
11. Measuring advance angle;
12. Checking the sealing of fuel injection pump body.
Technical Parameters
1. Adjustable rotation speed range |
0~4000RPM |
2. Double series of graduates |
45ml and 150ml (optional) |
3. Volume of oil tank |
60L |
4. Temperature stabilization |
40±2℃ |
5. Test oil filtering unit |
5μ |
6. DC supply |
12V/24V |
7. Fuel feed pressure |
low: 0~0.4MPa; high: 0~4Mpa |
8. Air pressure |
0~0.3MPa, -0.03~0Mpa |
9. 3-phase power supply |
380V/50Hz or according to requirements |
10. Flywheel inertia’s moment |
0.8KG·M2 |
11. Center height |
125mm |
12. Output power |
7.5KW, 11KW, 15KW or according to requirements |
13.Overall dimensions(mm) |
2360×960×1870 or according to requirements |
14. Net weight(Kg) |
1300kg |
Accessories:
Related Products:
Package: Wooden Box ;
Package Dimension(L*W*H)(mm): 2200×1080×1890 ;
Net Weight(Kg): 900 ;
Gross Weight(Kg): 1000 ;
Packed 5 units in one 20ft container ;
Loaded in LCL,FLC and shipping by Cargo Ship.
We provide high quality products and service. And if the machine has problem, you could contact us at any time,we will help you at our best.
Tai’an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.
We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc. We also design and produce different kinds modern testing equipments by client’s requirements.
We acquired ISO 9001:2008 and CE certificate.There are Asia,Africa,Europe,Aemerica clients give high evaluation on our machines.
Q1:Are you a trader or manufacture?
A1:We are manufacturer
Q2:Can you accept OEM or ODM?
A2:Of course,Logo is also acceptable.
Q3:What is the delivery time?
A3:About 7days after order placed.
