Product Details
Brand Name: | JUNHUI | Place of Origin: | Shandong, China | Model Number: | JH-12PSB |
Power: | Electronic | Usage: | Auto Testing Machine |
Packaging Details
Package Dimension: 2230mm*1020mm*1850mm
Shipping by container ship(LCL or FCL)
Package Weight: 1000kg">Packed in Wooden Box;
Package Dimension: 2230mm*1020mm*1850mm
Shipping by container ship(LCL or FCL)
Package Weight: 1000kg
Product Description
Diesel Fuel Injection Pump Test Bench bomba de combustible diesel banco de pruebas

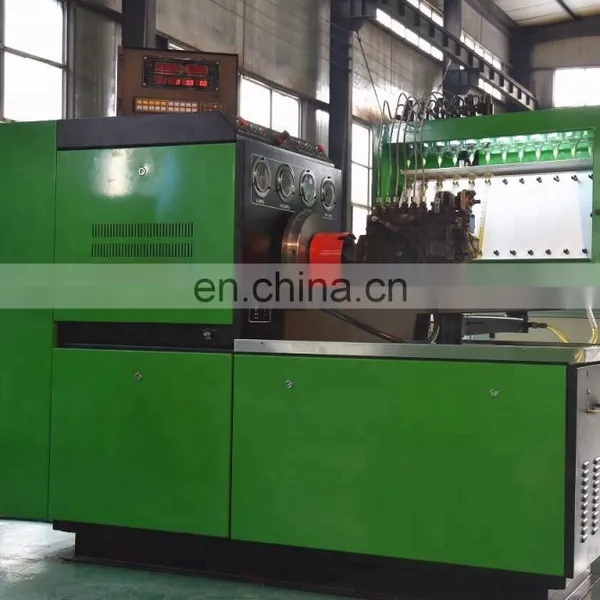

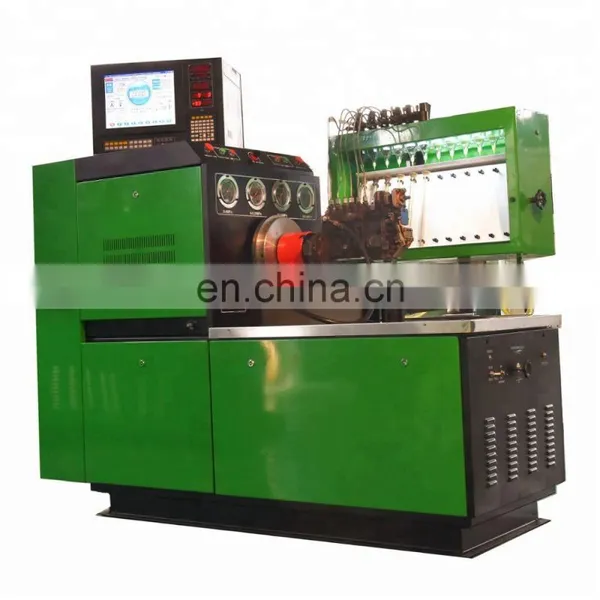

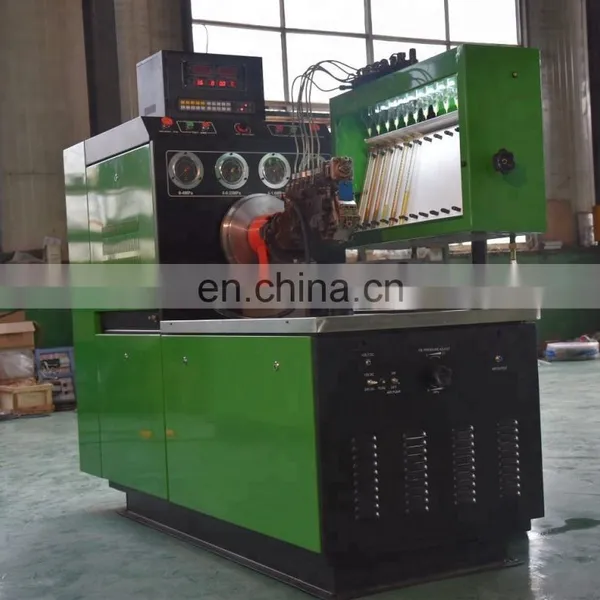

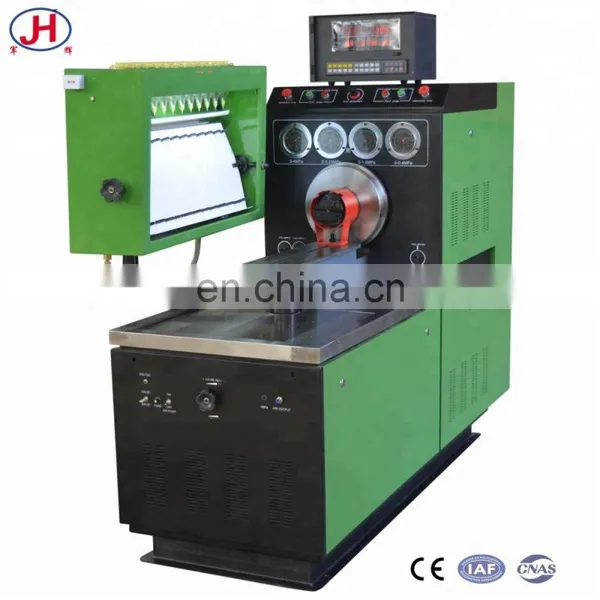

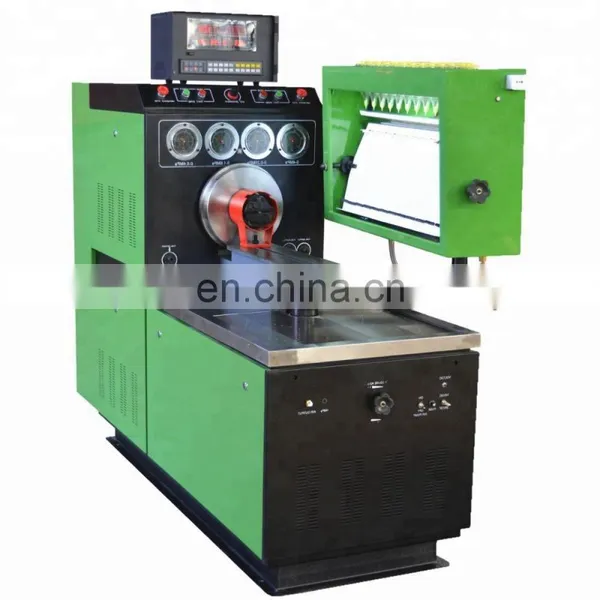

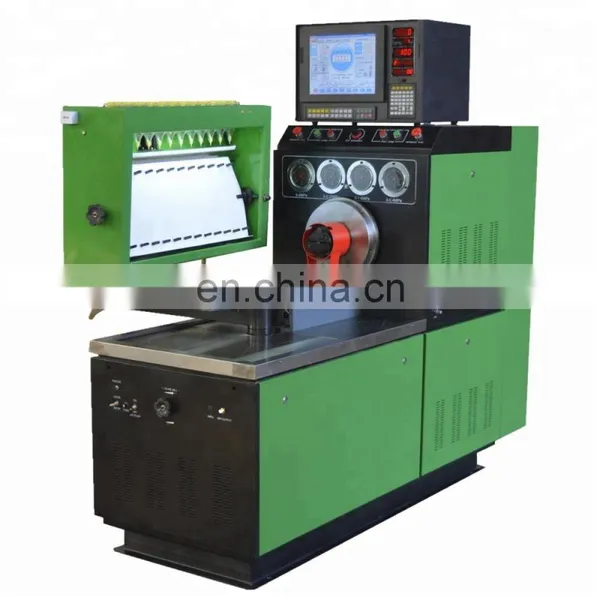

Diesel Fuel injection pump test stand is a special equipment for testing, adjusting and maintaining the fuel injection pump of diesel engine.
Characteristics:
1. Variable frequency speed regulation;
2. Small deceleration and large output torque;
3. High measurement precision;
4. Overvoltage protection, overload protection and short-circuit protection;
5. Ten kinds of rotation speeds presetting;
6. Constant temperature control;
7. Ultra-low noise;
8. Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;

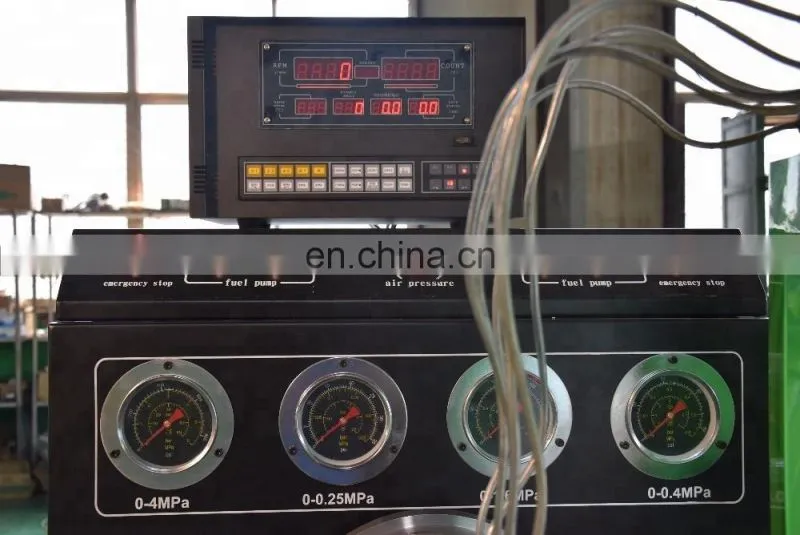

9. Speed, count, temperature, air pressure, advance angle are displayed on 15-inch LCD;
10. Built-in air resource.
Function:
1. Measuring each cylinder’s injected oil quantity at various rotation speeds;
2. Checking each cylinder’s injection time statically;
3. Checking the mechanical speed governor;
4. Checking the electromagnetic valve of distribution pumps;
5. Checking the pneumatic speed governor’s performance;
6. Checking the pressure compensator’s performance;
7. Measuring the returned oil quantity of distribution pumps;
8. Measuring the internal pressure of the distribution pump body;
9. Checking the pneumatic speed governor’ s vacuum performance;
10. Measuring rack travel;
11. Checking the sealing of fuel injection pump body.
Technical Parameter:
1. Adjustable rotation speed range: 0~4000RPM
2. Double series of graduates: 45ml
3. Volume of oil tank: 60L
4. Temperature stabilization: 40±2℃
5. Test oil filtering unit: 5μ
6. DC supply: 12V/24V
7. Fuel feed pressure: low: 0~0.4MPa, high: 0~4Mpa
8. Air pressure: 0~0.3MPa,
9. 3-phase power supply: 380V/50Hz or according to requirements
10. Flywheel inertia’s moment: 0.8KG·M2
11. Center height:125MM
12. Output power: 11KW
13. Overall dimensions(MM): 2360×960×1870
14. Net weight(KG): about 900kg
Packed in Wooden Box;
Package Dimension: 2230mm*1020mm*1850mm
Shipping by container ship(LCL or FCL)
Tai’an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.
We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc.
Taian Junhui Automobile Maintenance Equipment Co.,Ltd
Address: Xujialou Industrial Zone,Taian City,Shandong Provice,China
Contact Person: Mr. Simon Sang
Email: simon @tajunhui.com
Tel/WhatsApp/Wechat: +86 18888260296
