Help CenterBest Selling Price Epoxy Automatic Pressure Gelation Hydraul Machine Produce CT PT SF6 Cover Circuit Breaker Sealed Pole
Related Products
-
Top Quality APG Injection Molding Machine Epoxy Resin Hydraulic Gel Processing MachineUS$ 30000 - 50000MOQ: 1 Set -
VOLMET Epoxy Resin Automatic Pressure Gel Hydraulic APG Clamping Machine For InsulatorsUS$ 30000 - 50000MOQ: 1 Set
-
China Factory Epoxy Cast Resin Vacuum Circuit Breaker APG Hydraulic Pressure Clamping Injection MachineUS$ 30000 - 50000MOQ: 1 Set
-
High Quality APG Clamping Machine For CT PT Transformer Epoxy Hydraulic Molding MachineUS$ 30000 - 50000MOQ: 1 Set
-
High Reliabe Epoxy Resin Hydraulic Gel APG Process Clamping Machine For Bushing Insulator APG Injection MachineUS$ 30000 - 50000MOQ: 1 Set
| Place of Origin | China |
| After-sales Service Provided | Field maintenance and repair service |
| Applicable Industries | electrical power insulation |
| Port | Any ports in china |

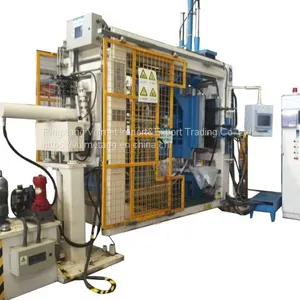

1.AVOL-1010 Full Automatic APG clamping machine：
1. Application:
Used for producing epoxy resin components from 11-36KV, such as CT, PT, insulators, bushings, spout,SF6 cover, GIS, LBS etc.
2.Full automatic control system with touch screen, Realize one-button run machine:
- Automatically clamping mold;
- Automatically adjust injection pressure and injection time
- Automatically tilting machine
- Automatically hold pressure and hold pressure time
- Automatically alarm and de-mould
- (install coil and inserts, take products from mold, clean mold by manual)
3.Advantages:
- Reduce work injure
- High efficiency
- Ensure product quality
- Save labor cost, 1 worker can operate 2-4 machines
- Low requirement for workers
- Remote control machine (optional)
2.Machine introduction:
Machine frame: Tempering and finish machinery →Improve strength,avoid deformation,ensure high precision,avoid mold leakage
Collect Tray → Keep clean,protect lower core.
Tilting device → vertical and horzontal tilting
Safe fences→ avoid work injure
Servo motor→ save energy, low noisy, easy maintance
Full automatic system→ programmable, full automatic.save receipt,remote control
linear guide →ensure clamping stability
Power cabinet→
APG Mold →Volmet supply mold and technique training overseas.turn key project.
3.Technical Datas:
4.36KV potential transformer production process:

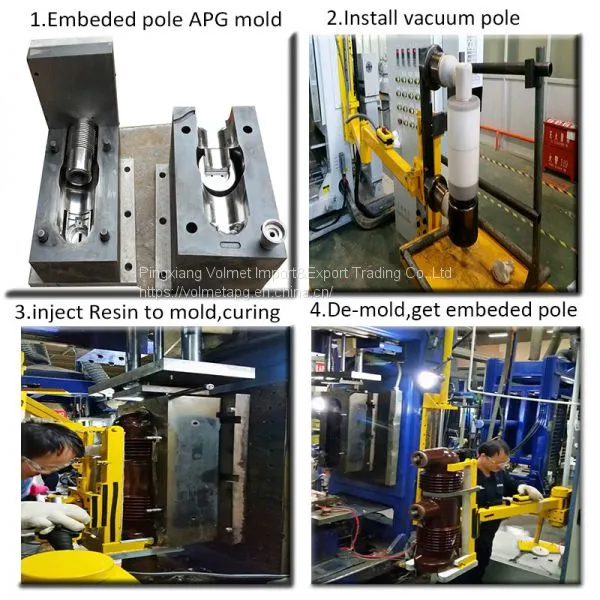

4.Embedded pole production process:
5. APG machine process:
1.Milling machine frame: each side of frame will milled by vertical lathe machine,enasure installation precison,avoid mold leakage.
2.Heating treatment for machine frame: Do 3 times of heat treatment for machine frame after welding. release inter stress,reduce machine deformation in the future.
