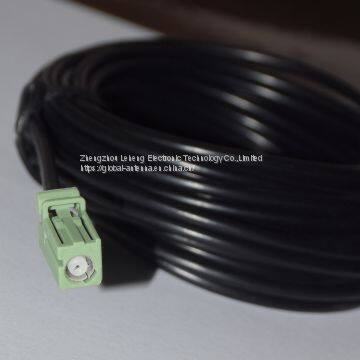

Help CenterGpsglonass Antenna With Green Pioneer Connector 28dBi Gain
Related Products
-
GPS/Glonass Antenna With Fakra H Pink ConnectorUS$ 1.99 - 2.55MOQ: 500 Pieces -
GPS+GSM Combo Antenna With SMA ConnectorUS$ 6.5 - 7.5MOQ: 500 Pieces
-
GPS+GSM+Am/FM Combo Antenna Car AntennaUS$ 6.8 - 7.8MOQ: 500 Pieces
-
3G Magnet Antenna With SMA or Fakra ConnectorUS$ 1.15 - 1.55MOQ: 500 Pieces
-
5dBi Gain 3G Magnet Antenna With 3m Rg174 CableUS$ 1.35 - 1.85MOQ: 500 Pieces
Applications
Automobile Navigation,
Logistics Positioning and etc.
Features
High stability,
Linearity,Consistency,
High gain,
outside-band interference suppression,
Low Noise Figure
GPSGlonass Antenna | |
| GL-DY002P | |
Electrical Index | |
Frequency-MHz |
1575.42-1602 |
VSWR |
|
Nominal Impedance-Ω |
50 |
Polarization |
RHCP |
Axial Ratio |
3dB(max) |
LNA Gain |
28±2dB |
Noise Figure |
|
Supply Voltage |
3-5V DC |
Current Consumption |
5-15mA |
Mechanical Index | |
Cable Length |
RG174,2m |
Connector |
Green pioneer |
Antenna Dimension-mm |
40*30*15.1 |
Installation Way |
Magnet or Adhesive |
Ingress Protection |
IP65~IP67(exclude cable outlet) |
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly |
ROHS Compliant |
Temperature-ºC |
-40~+85 |
Humidity-% |
5~95 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
