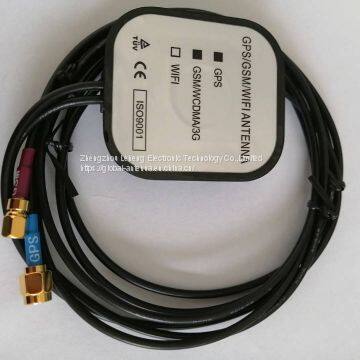

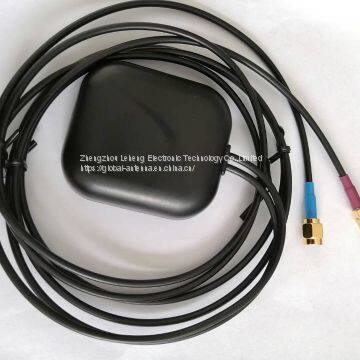

Help CenterGPS+GSM Combo Antenna With SMA Connector
Related Products
-
GPS+GSM+Am/FM Combo Antenna Car AntennaUS$ 6.8 - 7.8MOQ: 500 Pieces -
3G Magnet Antenna With SMA or Fakra ConnectorUS$ 1.15 - 1.55MOQ: 500 Pieces
-
5dBi Gain 3G Magnet Antenna With 3m Rg174 CableUS$ 1.35 - 1.85MOQ: 500 Pieces
-
9dBi Gain 3G Magnet Antenna With SMA Connector Rg58 CableUS$ 1.5 - 1.9MOQ: 500 Pieces
-
868MHz UHF Rubber Antenna With 2.5dBi GainUS$ 1.2 - 1.6MOQ: 500 Pieces
Applications
Automobile Navigation,
Logistics Positioning and etc.
Features
High stability,
Linearity,Consistency,
High gain,
outside-band interference suppression,
Low Noise Figure
| Item | Specifications | ||
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | 1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | 2dB | ||
| V.S.W.R | 2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| GSM Antenna | Frequency Range | 824~960MHz/1710-1990MHz | |
| V.S.W.R(min) | 2.5 | ||
| Polarization | Linear | ||
| Gain | 2dBi | ||
| Impendance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Radome Material | ABS | ||
| Mounting Method | Magnet/Adhesive | ||
| Environmental | Operating Temperature | -40ºC~+85ºC | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP65~IP66 | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
