TAIANDONG HEUI TEST BENCH CAT3000L WITH DIGITAL DISPLAY TESTING MEDIUM

TAIANDONG HEUI TEST BENCH CAT3000L WITH DIGITAL DISPLAY TESTING MEDIUM photo-1

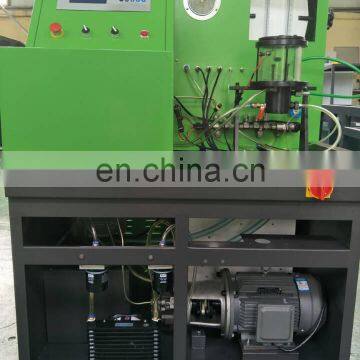

TAIANDONG HEUI TEST BENCH CAT3000L WITH DIGITAL DISPLAY TESTING MEDIUM photo-2

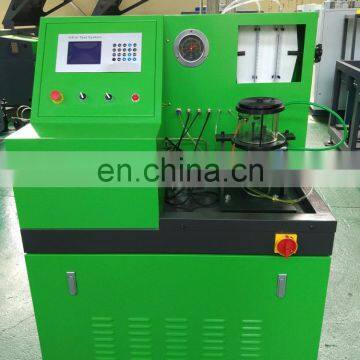

TAIANDONG HEUI TEST BENCH CAT3000L WITH DIGITAL DISPLAY TESTING MEDIUM photo-3
TAIANDONG HEUI TEST BENCH CAT3000L WITH DIGITAL DISPLAY TESTING MEDIUM photo-4

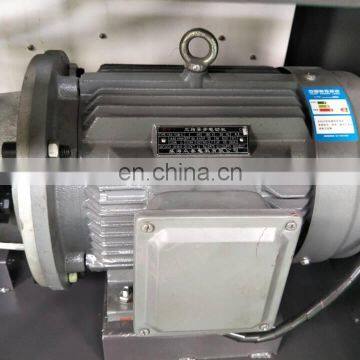

TAIANDONG HEUI TEST BENCH CAT3000L WITH DIGITAL DISPLAY TESTING MEDIUM photo-5

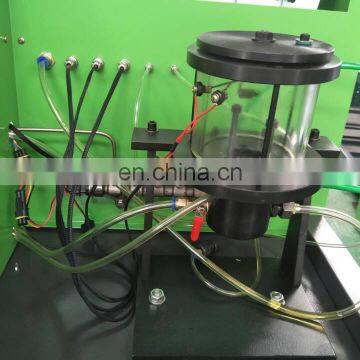

TAIANDONG HEUI TEST BENCH CAT3000L WITH DIGITAL DISPLAY TESTING MEDIUM photo-6
US$ 2,500 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DONGTAI
Place of Origin:
Shandong, China
Model Number:
CAT3000L
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Brand Name DONGTAI
Place of Origin Shandong, China
Model Number CAT3000L
Power Electronic
Product Description





HEUI Common Rail Test Bench is a test bench capable of testing medium pressure injectors.

can test C7,C9,C-9 ,3126,3408 HEUI  Injector



Motor power 4kw
Electronic power 3 PHASE 380V or 3 PHASE 220V
 Motor speed

0-4000RPM

Presure adjustment 0-2000bar
Flow testing range 0-600ml/1000times
Flow measurement accuracy 0.1ml
Cooling system fan or forced cooling

Wire Connection :

1)  R(10),S(20),T(30) connect the fair wire,N(0)connect 0 wire,E connect the ground wire.

2) .If the motor reverses, please exchange the position of the two Fire Wire R (10) and  T (30)  .




B.Main Functions


A : SIMULATOR     B:Emergency stop

C:Switch for Motor  D:Switch for Oil Motor

E:Power Indicator   F:Low pressure Guage

G:Glass tube       H:Motor for Power Indicator

I:HEUI Adaptor (C7,C9,C-9,3126 )  J:Fan

K:Diesel filter(4pcs)   L:Bosch CP3 pump

M: Motor             N:Distrubution box

O:diesel oil tank(2pcs) P:Oil pump (Made in Tai Wan)


1.Low pressure return oil pipe   2:injection oil pipe        3,4. Injectors Solenoid valve power cable        5.Piezoelectric injector cable    6.Low pressure supply oil pipe    7.High pressure return oil pipe

8.Low pressure return oil pipe



It can test 4 injectors as follow:

Packaging & Shipping

Packaging  Detail: Carton/Wooden or as your requirements



Port: Qingdao



Lead Time: 3 days


Company Information


Tai dongtai Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI), diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part .

Welcome you to visit our factory and cooperate in the future.
