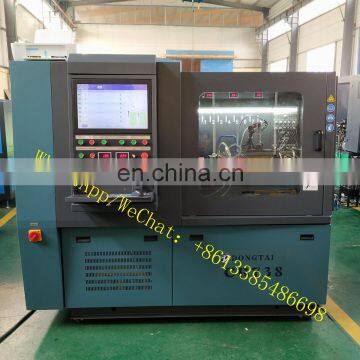

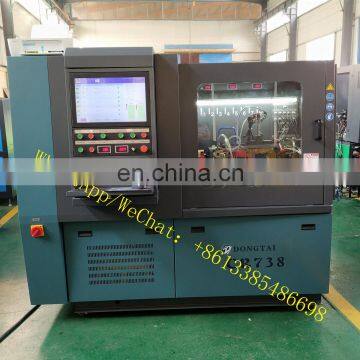

Common Rail Injector Repairing Machine Diesel Pump Test Bench With Cr708
US$ 10,500 - 11,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
dongtai
Place of Origin:
China
Model Number:
cr738
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CR738 Common Rail Injector and Pump Test Bench for CR, HEUI, EUI/EUP,CAT320D, BIP and HPIUS$ 8,500 - 11,000MOQ: 1 Set -
Taian DONGTAI HEUI CR COMMON RAIL Diesel Test Bench CAT8000US$ 7,000 - 7,500MOQ: 1 Set
-
DONGTAI - CRI , EUIEUP , HEUI Test Bench CR819 FUEL INJECTOR TEST EQUIPMENTUS$ 8,000 - 8,000MOQ: 1 Set
-
DONGTAI - CR738 All In One Common Rail Diesel Fuel Injector&Pump Test BenchUS$ 11,000 - 11,000MOQ: 1 Set
-
CR738 All In One Line Comprehensive Common Rail Diesel Fuel Injector&Pump TestingUS$ 11,000 - 11,000MOQ: 1 Set
Brand Name
dongtai
Place of Origin
China
Model Number
cr738
Product Description
Function
1.Common rail injector and pump testing
2. HEUI Injector testing, (can test C7, C9, C-9, 3126, 3408, 3412, ISUZU)
3. HEUI pump
testing,
4. CAT 320D pump testing,
5. QR coding
6. 6. BIP Response Time function
7. EUI/EUP testing, (4pcs Camshaft)
8. Forced coling system
Technical parameter
1.Out put power: 11kw
2. Input power: 380V/50hz/3phase or 220V/60hz/3phase
3. Rotation speed: 0~3000RPM
4. Rail high pressure: 0～2000 bar
4. Test oil filtered precision: 5μ
6. Oil tank: 60L
Configuration
* 1.3 pcs import flow sensor
* 2.High quality oil tank with powerful compressor cooling system 3.Motor power: 220v/380v 18.5kw 8 or 12 cylinders with glass
tube
*
* 4.Double high pressure rail
Test system
Automatically test different models solenoid valve injectors (common rail injectors and piezo injector)BOSCH, DENSO , DELPHI,
SIEMENS. Common rail injector and piezo injector testing process
1.High pressure cleaning
2.Atomization test: to judge if the injector is blocked
3.Seal test: check the sealing performance of the nozzle, the Nozzle nut and solenoid valve.
4.Injector test: Test the injected fuel and the volume of return under rated speed, idle, emission status, pre-injection and
preinjection.
5. Check the solenoid valve current of the injector, lifting the valve assembly, fuel injection lift.
BOSCH DENSO DELPHI SIEMENS Common rail injector testing and coding
Automactically test all common rail pumps( Bosch CP1 CP2 CP3 CP4, DENSO HP0 HP3 HP4 DELPHI )
BOSCH CP4 PUMP TESTING DENSO HP0 PUMP TESTING
Also can test BOSCH CP1 CP2 CP3 ,DENSO HP3 HP4 ,DELPHI pump.
Automactically test ZME
Automatically test EUI EUP ( contain 26sets adaptors
Land Rover,CAT,Cummins,Scania ,Detroit,VW,Audi,John Deer,Delphi E1,E3,HENGYAN .ETC
HEUI INJECTOR AND PUMP TESTING
Automatically test CAT C7 C9 C-9, 3126, ISUZU 3408, Ford Power Stroke 6.0 . Automatically test Heui injector and pump C7 C9 C-9
3126 ISUZU 3408 Automatically test HEUI C7 C9 C-9 3126 pump and 320D pump
CAT C7C9 C-9 3126 PUMP CAT 320D PUMP CAT C7C9 C-9 3126 INJECTOR
Automatically test VP37, VP44,RED 4
VP44 PUMP TESTING vp37 pump testing
* 1.3 pcs import flow sensor
* 2.High quality oil tank with powerful compressor cooling system 3.Motor power: 220v/380v 18.5kw 8 or 12 cylinders with glass
tube
*
* 4.Double high pressure rail
Test system
Automatically test different models solenoid valve injectors (common rail injectors and piezo injector)BOSCH, DENSO , DELPHI,
SIEMENS. Common rail injector and piezo injector testing process
1.High pressure cleaning
2.Atomization test: to judge if the injector is blocked
3.Seal test: check the sealing performance of the nozzle, the Nozzle nut and solenoid valve.
4.Injector test: Test the injected fuel and the volume of return under rated speed, idle, emission status, pre-injection and
preinjection.
5. Check the solenoid valve current of the injector, lifting the valve assembly, fuel injection lift.
BOSCH DENSO DELPHI SIEMENS Common rail injector testing and coding
Automactically test all common rail pumps( Bosch CP1 CP2 CP3 CP4, DENSO HP0 HP3 HP4 DELPHI )
BOSCH CP4 PUMP TESTING DENSO HP0 PUMP TESTING
Also can test BOSCH CP1 CP2 CP3 ,DENSO HP3 HP4 ,DELPHI pump.
Automactically test ZME
Automatically test EUI EUP ( contain 26sets adaptors
Land Rover,CAT,Cummins,Scania ,Detroit,VW,Audi,John Deer,Delphi E1,E3,HENGYAN .ETC
HEUI INJECTOR AND PUMP TESTING
Automatically test CAT C7 C9 C-9, 3126, ISUZU 3408, Ford Power Stroke 6.0 . Automatically test Heui injector and pump C7 C9 C-9
3126 ISUZU 3408 Automatically test HEUI C7 C9 C-9 3126 pump and 320D pump
CAT C7C9 C-9 3126 PUMP CAT 320D PUMP CAT C7C9 C-9 3126 INJECTOR
Automatically test VP37, VP44,RED 4
VP44 PUMP TESTING vp37 pump testing
