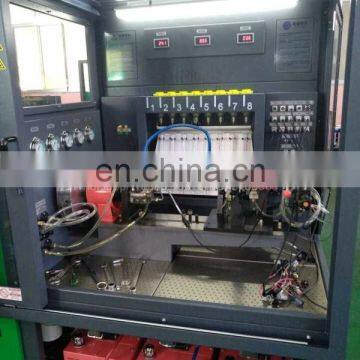

2019 New Full Functions CR738 Common Rail Injector and Pump Test Bench

• Test all traditional in-line, rotor type high pressure oil pump
• ALL common rail injector tesitng with coding
• ALL PIEZO injector testing
• ALL Common rail pump testing
• ALL EUI EUP testing
• All double soleind valve EUI testing
• ALL HEUI Injector testing
• ALL HEUI Pump testing

Configuration

• 1.3 pcs import flow sensor
• 2.High quality oil tank with powerful compressor cooling system
• 3.Motor power: 220v/380v 18.5kw 8 or 12 cylinders with glass tube
• 4.Double high pressure rail

Test system

Automatically test different models solenoid valve injectors (common rail injectors and piezo injector)BOSCH, DENSO , DELPHI, SIEMENS. Common rail injector and piezo injector testing process

1.High pressure cleaning

2.Atomization test: to judge if the injector is blocked

3.Seal test: check the sealing performance of the nozzle, the Nozzle nut and solenoid valve.

4.Injector test: Test the injected fuel and the volume of return under rated speed, idle, emission status, pre-injection and preinjection.

5. Check the solenoid valve current of the injector, lifting the valve assembly, fuel injection lift.

BOSCH DENSO DELPHI SIEMENS Common rail injector testing and coding

Automactically test all common rail pumps( Bosch CP1 CP2 CP3 CP4, DENSO HP0 HP3 HP4 DELPHI)

 BOSCH CP4 PUMP TESTING                DENSO HP0 PUMP TESTING

Also can test BOSCH CP1 CP2 CP3 ,DENSO HP3 HP4 ,DELPHI pump.

 Automactically test ZME

Automatically test EUI EUP ( contain 26sets adaptors

Land Rover,CAT,Cummins,Scania ,Detroit,VW,Audi,John Deer,Delphi E1,E3,HENGYAN .ETC

HEUI INJECTOR AND PUMP TESTING

Automatically test CAT C7 C9 C-9, 3126, ISUZU 3408, Ford Power Stroke 6.0 . Automatically test Heui injector and pump C7 C9 C-9 3126 ISUZU 3408 Automatically test HEUI C7 C9 C-9 3126 pump and 320D pump

CAT C7C9 C-9 3126 PUMP                 CAT 320D PUMP        CAT C7C9 C-9 3126 INJECTOR

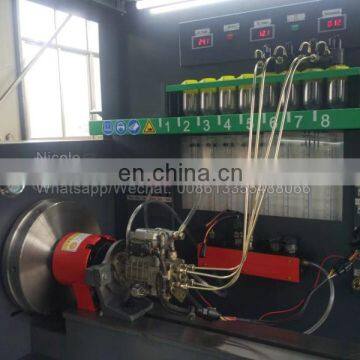

Automatically test VP37, VP44,RED 4

Advantage

1.Use original BOSCH CP3 pump Industrial cooling system to control temperature ,

2.stailess steel oil tank With Original BOSCH high pressure DRV ,ZME, Rail pressure sensor. rail pressure controled ±0.5Mpa, rail pressure 0-250Mpa. With original import flow sensor, the flow range is 0.008-4l/Min, the test precision is 0.3% Optional choice on testing one injector, two injector, four injector, six injector BIP CAM Drive
