CR709 Inside Testing Data Diesel Fuel COMMON RAIL INJECTOR TEST BENCH
US$ 5,500 - 5,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DONGTAI
Place of Origin:
Shandong, China
Model Number:
CR709, CR709
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CR709L COMMON RAIL INJECTOR TEST BENCH CR709L ( HEUI , STAGE 3 FUNCTION)US$ 4,500 - 5,500MOQ: 1 Set -
CR318s Common Rail Injector Test Bench With Double Oil RoadUS$ 4,800 - 4,800MOQ: 1 Set
-
CR318 Common Rail Test Bench With HEUI FunctionUS$ 7,500 - 7,500MOQ: 1 Set
-
High Quality CR3000 Diesel Fuel Common Rail Pump and Injector Test BenchUS$ 3,800 - 3,800MOQ: 1 Set
-
High Quality CR3000A Diesel Fuel Common Rail Injector and Pump Test BenchUS$ 5,000 - 5,000MOQ: 1 Set
Brand Name
DONGTAI
Place of Origin
Shandong, China
Model Number
CR709, CR709
Power
Electronic
Usage
Auto Testing Machine
Product Description

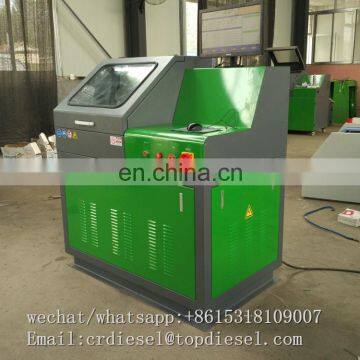

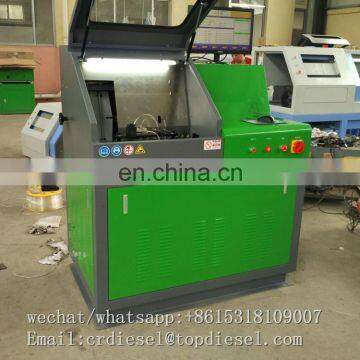

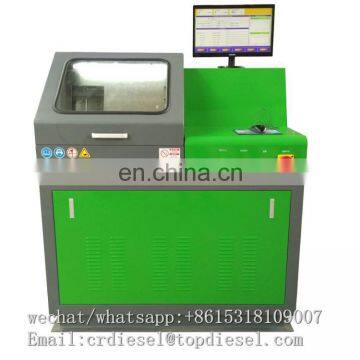

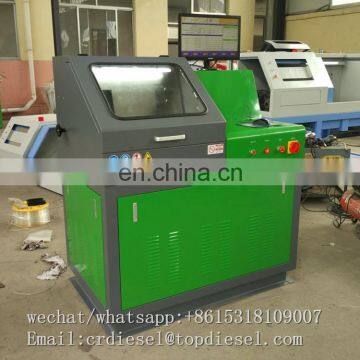

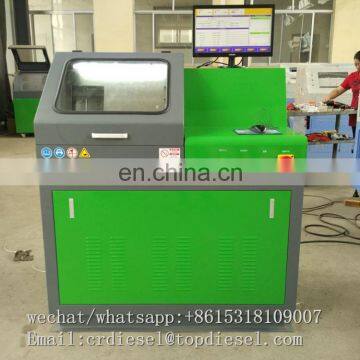

CR709 inside testing data diesel fuel COMMON RAIL INJECTOR TEST BENCH
CR709 common rail injector test bench, use import the flow sensor for the measurement means, it can test common rail injector and common rail pump, it can add HEUI function, can test HEUI
The device uses high-power inverter and motor, heavy plate casting table for different power and torque of the common rail pump test. It can test Bosch, Denso, Delphi, Siemens, CAT and other brands of electronic control fuel injector, oil flow measurement using imported flow sensor. Measurement parameters, rail pressure, speed, temperature, fuel, computer display. The test bench has independent diesel active oil supply system, the pressure size can be adjusted with different adapters, can increase HEUI test
Performance Introduction:
1. Imported flow sensor test flow, reliable quality, good repeatability.
2. Comprehensive testing. Can test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection
3. Use a wide range. Can detect Bosch, Denso, Delphi, Siemens, CAT, such as injector
4. Low noise, the host uses frequency control, low speed and high torque, speed prefabrication, low noise, no impact.
5. Advanced control, a key to select, the whole process of automatic detection
6. Massive data, a total of more than 1,700 kinds of fuel injector data.
7. data management. The user can according to the guidelines , add their own fuel injector technical indicators, especially for the new fuel injector standard fuel calibration
8 With the mechanism and adapter, it can test HEUI(ON REQUEST)
9.With printer It can print the test result
Technical Parameters
Rated output power |
5.5KW |
Electronic power |
3PHASE 380V 50HZ OR 3PHASE 220V 60HZ |
Motor speed |
0-4000RPM |
Pressure adjustment |
0-2200bar |
Fuel temperature |
40 ±2℃ |
.Flow testing range |
0-600ml/1000times |
Flow measurement accuracy |
0.1ml |
Filter accuracy |
less than 5um |
Cooling system |
fan or forced cooling |
Fuel tank capacity |
40L |
Size |
1300MM * 900MM * 1350MM |
Weight |
400kg |
display size |
With 19-inch display |
Mouse |
Adopt interference-free Logitech mouse |
User Interface and Interface
1.Support 10-inch / 15-inch / 17-inch / 19-inch touch-screen operation;
2.Multi-language-friendly interface display, user-friendly operation;
3.Real-time working status feedback, allowing users to make decisions faster;
4.powerful database management features more than 1,600 injectors standard data;
5.can be accessed by a standard keyboard and mouse;
6.equipped with ultra-compact industrial computer, SSD solid state drive for data backup, system software updates and data upgrade;
7.system functions cropping flexibility can be combined into a variety of control systems;
8.precision digital dipstick to ensure test accuracy;
9.Different injector with a different adapter, connects users to a different injector
Details Images
1,Power Switch 2,Heating Switch
3,Oil Supply Motor Switch
4,Emergency Stop Switch
DRV Valve
Flow Sensor
Motor (Mengniu)
