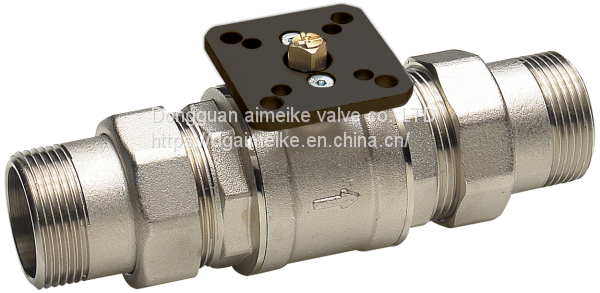

DN50 Internal Thread 325-ENO PN40 Two-way Brass Ball Valve

Two-way brass ball valve

Sizes: DN015-1/2 "to DN050-2"

Threaded end:

● Internal / external thread with connector (ISO228 / 1) maximum size DN≤32

● DN40 and DN50 internal thread / internal thread standard is ISO 228/1

Actuator connection meets ISO5211 (F03 / F05) standard

Multiple connection methods available on request

Gas-tight test standard complies with EN12266-1

Meet the Russian GOST standard

Working environment:

● Medium (water): -15 ° C to 120 ° C

Below 0 ° C only for aqueous media (with antifreeze)

Above 100 ° C is only suitable for aqueous media (with anti-boiling additive)

(Ethylene glycol and propylene glycol mixed, applicable when> 20% or ≤50%)

Product Highlights:

1. High-grade brass precision forging, the valve parts are compact:

2.Kvsu21m3/h is suitable for any size fan tray camp:

3. Straight water flow will never block the slag:

4. Large water circulation capacity, higher than traditional valve 3 or more

5. The valve is closed tightly and there is no internal leakage.

6. The drive will be powered off automatically after the valve is closed/opened. long lasting:

7. The closed structure is subject to gas intrusion. The motor runs reliably:

8. Can be mounted upright or horizontally

9. The failure rate is extremely low.
