This machine consists of the main machine, the transmission device, the gap adjustment device, the safety device, the emergency stop device etc.
Home > Manufacturing & Processing Machinery > Rubber Machinery > Rubber Product Making Machinery > DLFTECH 6 Inch Lab Rubber Two Roll Mixer Xk-160 Open Mixing Mill

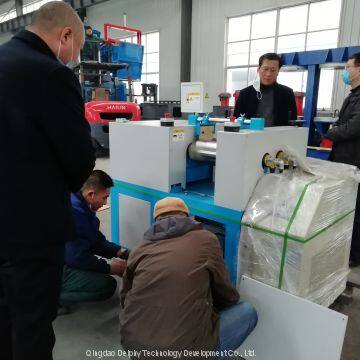

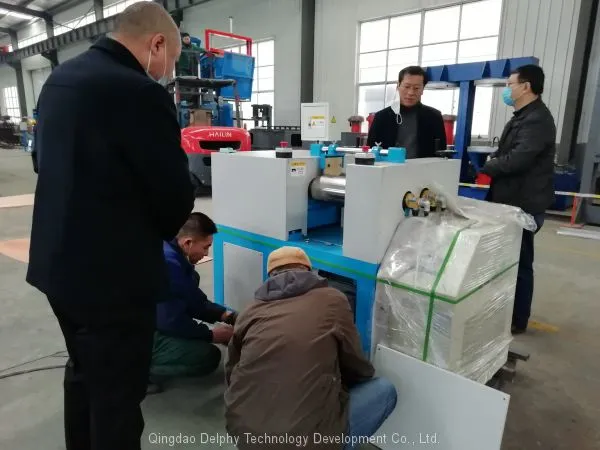

DLFTECH 6 Inch Lab Rubber Two Roll Mixer Xk-160 Open Mixing Mill
US$ 3000 - 13000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
DLFTECH
Place of Origin:
China
Model Number:
DLF-K160
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
60 days
Related Products
-
Open Mixing Mill Rubber Machine Open MillNegotiableMOQ: 1 Set -
DLFTECH 6 Inch to 26 Inch Rubber Two Roll Mixer Xk-160 High Quality Open Roll Mixing Machine/Two Roll Mill Rubber MixerUS$ 3000 - 13000MOQ: 1 Unit
-
Used Tyre Curing PressNegotiableMOQ: 1 Set
-
Used Tube Production LineNegotiableMOQ: 1 Set
-
Second Hand 48 Inch Hydraulic Tyre Curing PressCNY 720000 - 820000MOQ: 1 Set
Brand Name
DLFTECH
Place of Origin
China
Model Number
DLF-K160
Certification
ISP9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
1300
Condition
New
Power(W)
4KW*2
Product Description
XK-160 Open type two roll mixing mill is used for mixing rubber compound & making rubber sheets.
Introduction of open mill:A rubber compounding machine with exposed rollers used in rubber factories to prepare plasticating compounds, compound rubbers, or perform hot-warming and sheeting.The main working parts are two opposite-direction inwardly rotating hollow or drilling rollers. The device is called the front roller on the operator's side. It can be moved horizontally back and forth by manual or electrical action to adjust the roller distance to meet the operating requirements. The rear roller is fixed and cannot be moved back and forth. The two rollers are generally the same size and each rotates at different speeds. The raw rubber or rubber material is rolled into the gap between the two rollers with the rotation of the rollers, and is strongly sheared to achieve the purpose of plasticizing or mixing.
|
Name |
XK-160 Open type two roll mixing mill
|
|
Roller diameter |
160mm |
|
Roller working length |
320mm |
|
Front roller revolutions |
5~24±1rpm(Variable speed) |
|
Rear roller revolutions |
5~34±1rpm(Variable speed) |
|
Ratio of roller |
1:1~1:1.4(adjustable ) |
|
Roller gap |
0.1-6mm |
|
Roller bearing |
Ball bearings |
|
Roller temperature control |
TCU |
Product Highlights
1. Digital display function: Display various data that needs to be adjusted, including roller temperature, rotation speed and
roller spacing, etc. realizing real-time screen display .
2. Adjustable speed ratio: It is driven by two sets of motor reducers, which can adjust the different speed ratios of the two
rollers according to technological requirements.
3. Intelligent temperature control: Working temperature can be rapidly controlled with automatic temperature control system that integrated heating and cooling and precise electronic temperature control units.
4. Safety of operation: 360 degree contact switch, infrared sensor control, and optional safety cover, and using diagonal and emergency stop touch switch to ensure safety.
roller spacing, etc. realizing real-time screen display .
2. Adjustable speed ratio: It is driven by two sets of motor reducers, which can adjust the different speed ratios of the two
rollers according to technological requirements.
3. Intelligent temperature control: Working temperature can be rapidly controlled with automatic temperature control system that integrated heating and cooling and precise electronic temperature control units.
4. Safety of operation: 360 degree contact switch, infrared sensor control, and optional safety cover, and using diagonal and emergency stop touch switch to ensure safety.
Structure introduction
|

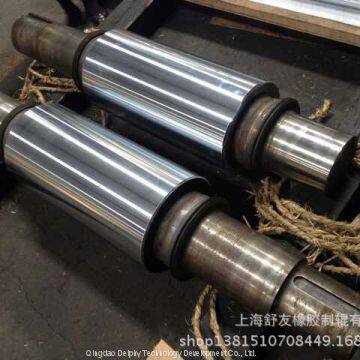

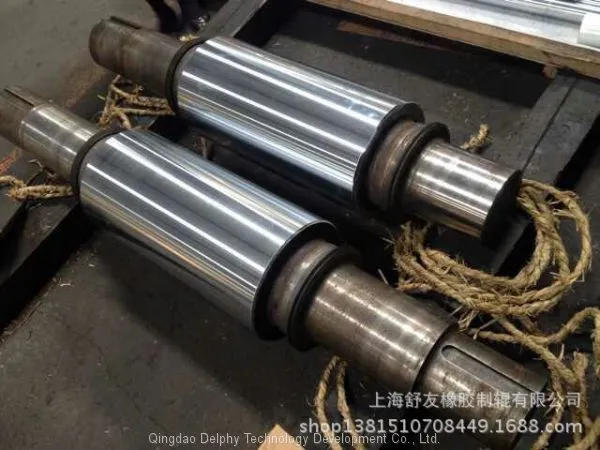

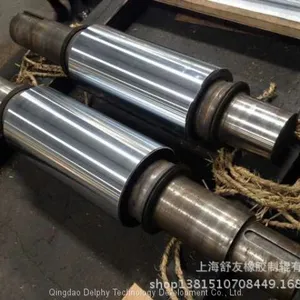

1 |
Roller |
Hollow smooth roller LTG-H Metal alloy cold hard iron casting
Surface hardness: 68~75HISD
|
|
2 |
Base and frame |
The base and frame consists of a integral base, frame, gland, etc., all of which are finished with high-quality steel after welding and aging treatment. |
|
3 |

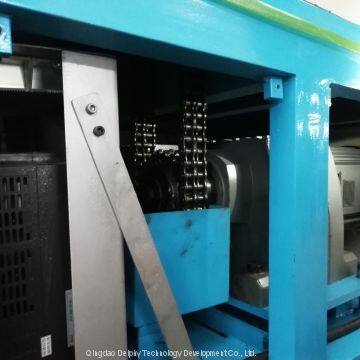

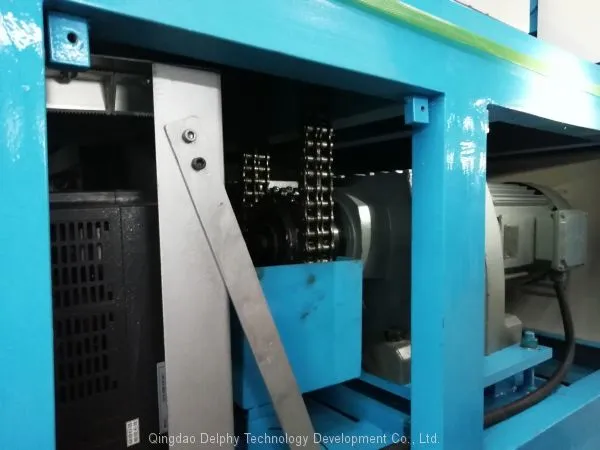

Transmission |

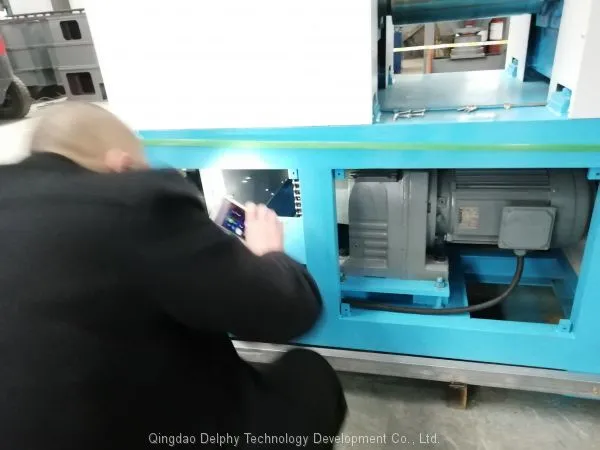

It is driven by variable frequency AC motors and hardened reducer. The rollers are connected to the output shafts respectively with universal couplings, and the speed ratio is generated by speed adjustment of the motors . The motor and reducer are connected by elastic ring couplings. |
|
4 |
Roller bearings |
Rolling bearings are used at both ends of the roller. They are fixed in the bearing housings which are made of gray cast iron with high density and no leakage. Equipped with manual grease pump, lubricated with lithium-based grease, simple structure and convenient maintenance. |
|
5 |
Reducer |
Hardened reducer with twin input&twin output shafts, smooth transmission, good wear resistance, low noise and long service life. |
|
6 |
Gap adjustment |
Manual gap adjustment, range 0.1~6mm. Gap digital display. |
|
7 |
Safety device |
Equipped with safety gasket which will be broken when overload to protect the machine. |
|
8 |
Emergency brake device |
When the emergency stop devices are activated, the motor brakes to stop the roller within 1/4 round. |
|
9 |
Buffle plate |
Adjustable nylon buffle plates， fastened with blind holes. |
|
10 |
Stock pan |
Stainless steel stock pan under the rollers. |
|
11 |
TCU accuracy |
±2℃ |
