Home > Products > tire bead winding system > High-tech vertical type Hexagonal bead winding machine tire bead winder
High-tech vertical type Hexagonal bead winding machine tire bead winder
- 12 Set / Sets per Month
- qingdao
- T/T L/C
- weeding latex balloons molds 10 inches balloons mold round balloons molds
- round shape balloon molds colored balloons glass moulds egg shape balloons molds
- pvc glove printing machine double sides labor gloves dotting machine socks dotting machine
- big water balloon production line automatic macaron balloon making machine wedding balloons production machine
- latex water balloon production line wedding balloons making machine party latex balloons production machine
- Glospect mixing mill
Product Details
Brand Name: | dlftech | Place of Origin: | China | Model Number: | DLF-GCX-6 |
Certification: | ISO CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
Weight: | 4.5T | Dimension(L*W*H): | 12700*2170*1770mm-14000*3000*2600mm | Condition: | New |
Voltage: | 84kw | Power(W): | 380VAC±10%,50Hz±1Hz |
Product Description
Tire bead winding machine for PCR,TBR,OTR tires
Core competitiveness:
High presion winding disc, especially the first segment.
pursuit of the perfect product details.
1, Special designed structure for Let off- Great stress relieving
2.Most temperature control by induction heater-Stable and precise temperature
3. Constant pressure of the extruder head with Gear PUMP
The tire bead winding system is used to produce beads of hexagonal section from one single rubberized wire, and six beads are made at a time through the steps of let off of steel wire, wire pre-heating, wire rubberising, storing with low tension, wire arrangement and winding etc..
1. The design of the winding drum is reasonable and accurate;
2. The winding drum and other parts are formed by CNC machining center once, and the machining precision of parts is high. Furthermore, Excellent heat treatment and processing technology make the parts interchangeability up to 100%, therefore, the finished bead ring has good quality and high precision with outstanding consistency and uniformity. Besides, the device is easy to maintaince.
3. winding disk mechanical precision:
End face runout accuracy: ±0.10mm
Radial runout accuracy: ±0.20mm
Radial diameter repeatability accuracy: ±0.05mm

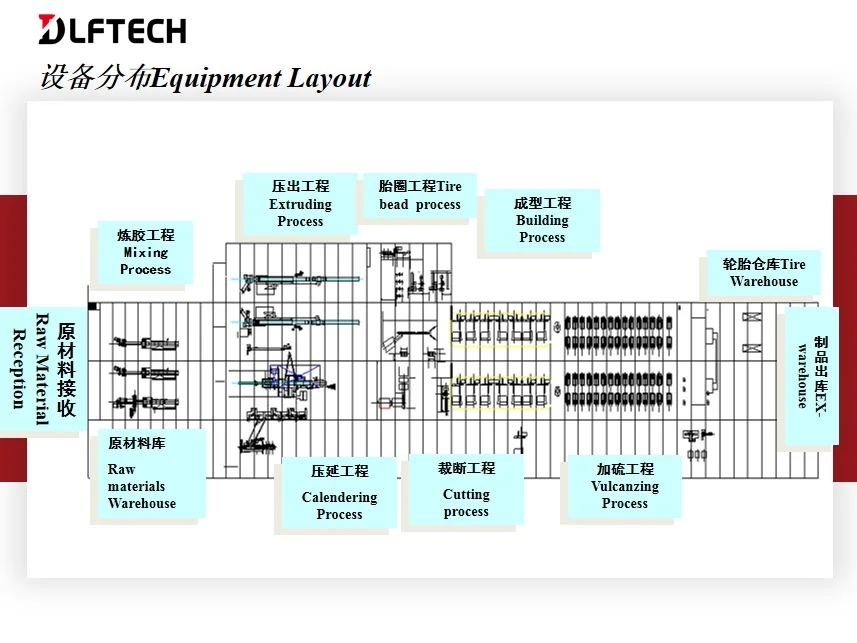

EPC (Engineer, Procurement, and Construction )
TBR, PCR<R, Bias and Radial, OTR,Conveyor belt and so on.
1. Engineering design
Provides engineering design consultation and technical service of rubber product industry in:
Process, planning, construction, structure, water supply and drainage, heating and ventilation, air conditioning, power,electric, communication and automatic-control,logistics and cost budget.
2. Equipment of production according to the processes
3. Equipment of utilities
4.Installation and commissioning
5. Other :
Land
Civil construction of workshop
Freight of equipment
Liquidity(Proqurement of raw materials and wages in the trial production stage )
Pre-project cost (Project examine and approval)
Personnel training(Plant technical personnel, management personnel, operation)
Unforeseen expenses(0.5% of total project construction investment)
Travel and business entertainment expenses
FAQ
Who we are Delphy is a service provider specializing in the professional technology and equipment for the tire and conveyor belt industry. At present, delphy has set up one design center and three manufacturing bases in China,namely Qingdao Rubber Construction Industrial Engineering Co., Ltd., Qingdao West Coast New District Universal Machinery Manufacturing Base, Jiangyin Niche Product Manufacturing Base and Inner Mongolia Extruder Series Product Manufacturing Base.
What we do 1. New material, new technique, new equipment: 2.One-stop solution: Delphy focuses on EPC project for the completion of tire and conveyor belt factory. 3.Transformation and upgrading of equipment.
Our customer The Southern Rubber Industry Joint Stock Company (Vietnam ), RIGID TYRE (Sri Lanka) and Shandong Haohua Tire.Thailand OTANI, DEESTONE tire automatic material conveying line and CENTURY company's whole line equipment upgrade and transformation,etc.
Our Company
Qingdao Delphy Technology Development Co., Ltd.Delphy is a service provider specializing in the professional technology and equipment for the tire and conveyor belt industry. In accordance with the development concept of "integration, innovation, transcendence, and leading", we strive for getting through the whole process of tire and conveyor belt industry in terms of realizing Industry 4.0, aiming for bringing new profit growth and lasting market competitiveness to clients and helping them in creating greater social value.
Delphy benefits from the technical and R&D support of domestic experts in tire and conveyor belt industry and of research institutes and universities, as well from technical exchange and learning with international large-scale academic teams and rubber industry experts, which makes us be able to stand at the forefront of world rubber technology. Furthermore, with strong processing and assembly capabilities, we are committed to providing new material, new technique, new equipment and line upgrading with high quality and sophisticated technology, which are good enough to improve industry standard. At present, delphy has set up one design center and three manufacturing bases in China,namely Qingdao Rubber Construction Industrial Engineering Co., Ltd., Qingdao West Coast New District Universal Machinery Manufacturing Base, Jiangyin Niche Product Manufacturing Base and Inner Mongolia Extruder Series Product Manufacturing Base. Delphy has established comprehensive strategic cooperation with upstream, middle and downstream enterprises in the tire and conveyor belt industry in China and neighboring countries. Company has been making continuous efforts to promote the automation and intelligent development in rubber industry, and is committed to creating an incubator platform including production, training and research of the tire and conveyor belt industries.
