Help CenterFluorine Lining Diaphragm Valve Cast Steel Cast Iron Stainless Steel ANSI 150LB
Related Products
-
NPS2-150Lb Fluorine PFA Lined Straight Diaphragm ValveUS$ 200 - 5000MOQ: 1 Piece -
Pneumatic Operation Wafer Type Fluorine Lining Butterfly Valve DN80 150LbsUS$ 100 - 5000MOQ: 1 Piece
-
DN40~300 Pneumatic Wafer Butterfly Valve Fluorine Lining Butterfly ValveUS$ 100 - 5000MOQ: 1 Piece
-
Dn40~300 Pneumatic Actuator Full PTFE Lined Wafer Butterfly Valve for PipelinesUS$ 100 - 5000MOQ: 1 Piece
-
Dn40~300 Pneumatic Actuator Full PTFE Lined Wafer Lug Type Butterfly Valve for PipelinesUS$ 100 - 5000MOQ: 1 Piece

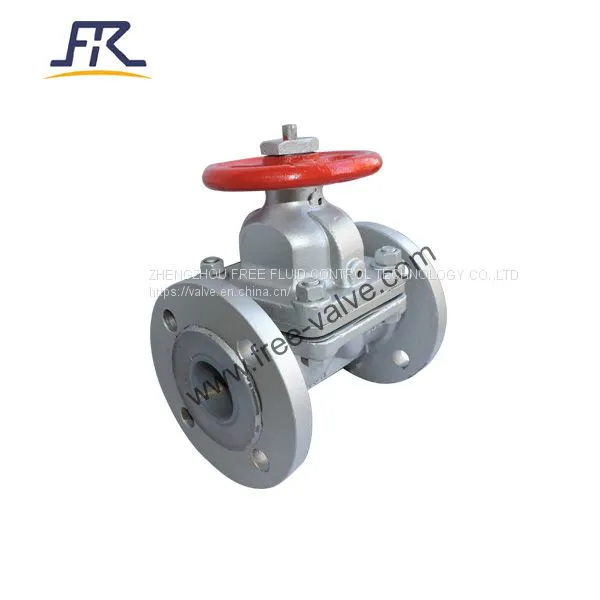

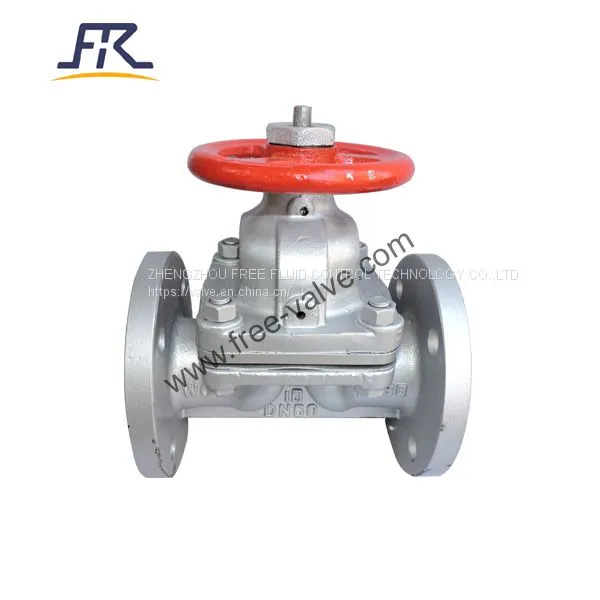

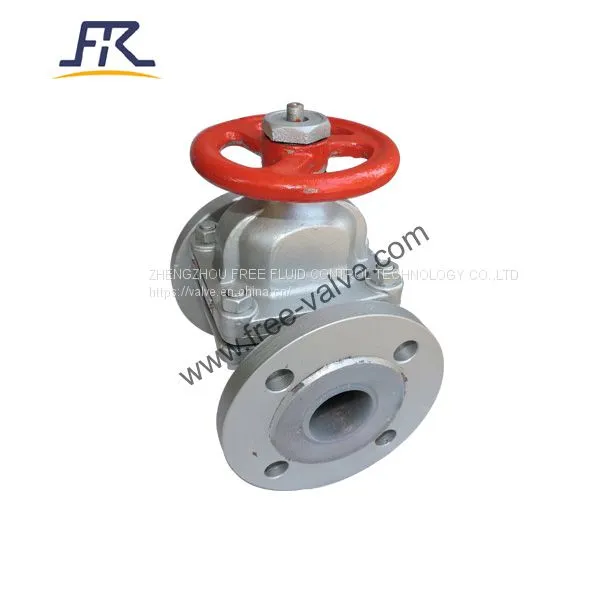

FREE-VALVE’s Fluorine PFA Lined Straight Diaphragm Valve is a special form of on-off valve, disc is a diaphragm made of corrosion-resistant soft material,the diaphragm separates the bottom body cavity from the top bonnet cavity, so that the stem, metal disc and other parts above the diaphragm are not subject to media corrosion,so fluorine lined diaphragm valve eliminate the packing seal structure, and will not produce media leakage.
Features:
1. The diaphragm of using FEP/FPA and rubber composite, suitable for variety of corrosive media.
2. 100% gas seal can be achieved to ensure no leakage in downstream.
3. No direct contact between metal parts and slurry.
4. Bi-directional and full flowing path can reduce pressure drop, weaken abrasion and prolong the service life.
Technical Specification
1) Size Range: DN25~DN400
2) Pressure Range: Class 150 /PN10 /PN16
3) Connection Type: Flange
4) Lining Material:PTFE , PFA , FEP
5) Body material:WCB, CF8 ,CF8M
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, ASME B16.10
8) Operating Mode: Manual,pneumatic,electric
Application
FREE-VALVE’s Fluorine Lining Diaphragm Valve Cast Steel Cast Iron Stainless Steel are widely used in chemical industry, medicine and other industrial sectors to achieve the cutting of acid, alkali and other corrosive media in the production process
Model：G41F46
Price:100-5000USD/set
Payment terms:TT,LC
Price terms:FOB,CIF,FCA,.CFR
Delivery time:30days
Origin:China
Brand:FREE-VALVE
Wechat ID:FreeValve
Email:sales@free-valve.com
