Home > Construction & Decoration > Construction Equipment & Tools > Formwork > Tie Rod Wing Nut D15/17mm Tie Rod Formwork Accessories Scaffolding
Tie Rod Wing Nut D15/17mm Tie Rod Formwork Accessories Scaffolding
US$ 1 - 2
MOQ: 1 Meter
Key Specifications
Get Latest Price
Brand Name:
YD
Place of Origin:
China
Model Number:
YD-01
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
3 days
Related Products
-
Screw Thread Steel Bar D15/17mm Tie Rod Formwork Accessories ScaffoldingUS$ 1 - 2MOQ: 1 Meter -
Formwork Accessaries Adjustable Ringlock Tie Rod Anchor Nut15/17mmUS$ 1 - 2MOQ: 1 Meter
-
High Strength Formwork Tie Rod 17mmUS$ 1 - 2MOQ: 1 Meter
-
Form Tie Cone for Formwork SystemUS$ 1 - 2MOQ: 1 Meter
-
Snap Tie Bar and Hot Rolled ZbarUS$ 1 - 2MOQ: 1 Meter
Brand Name
YD
Place of Origin
China
Model Number
YD-01
tie rod construction formwork D15/17mm scaffolding accessories

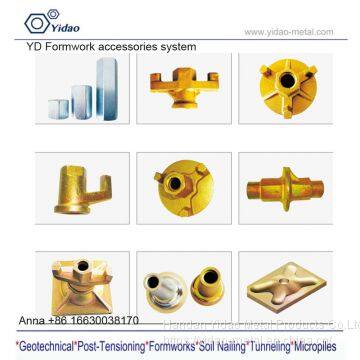

1 Basic description
| Part Name | Specification | Weight (kg) | Remark |
Tie-rod | D15/17 | 1.4 kg/m | L=6m;Special length available upon request. |
Wing nut | D15 | 0.35 | For tie-rod D15 17 |
Super plate | D15 | 1.28 | Used in case of tie-rod and formwork panels are not vertical. |
3-lug wing nut | D15 | 0.97 | For tie-rod D15; |
Waling plate | 120 x 120 x 6, Φ19 120 x 120 x 8, Φ19 | 0.65 0.85 | For tie-rod and nut D15; galvanized |

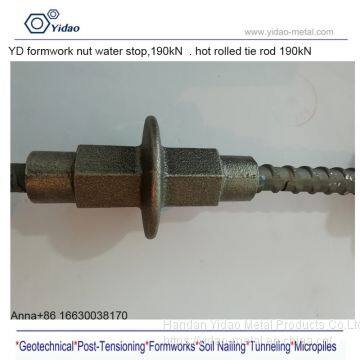

Water stopper | D15 | 0.55 | Used in water resistant wall;With tie-rod D15/17 |
Anchor plate | D20 | 0.95 | Embedded in concrete as lost part |

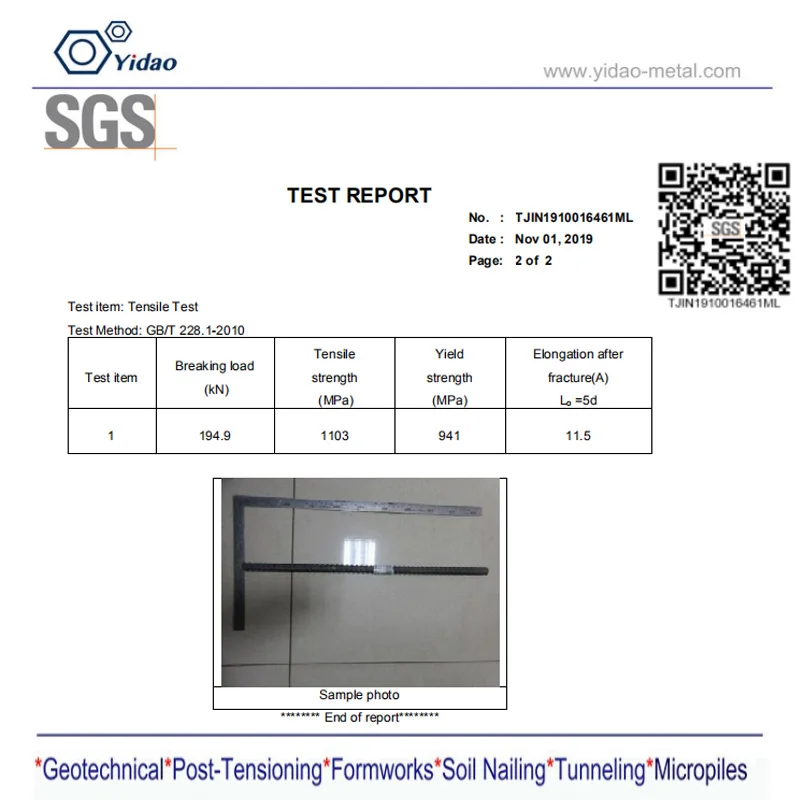

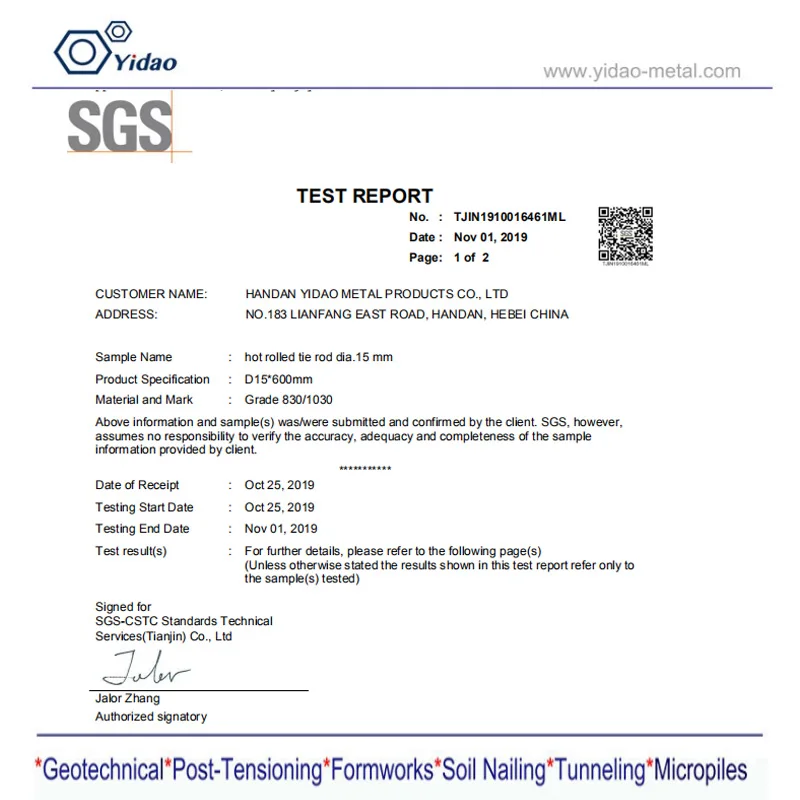

SGS test report for tie rod. load force over 190kN

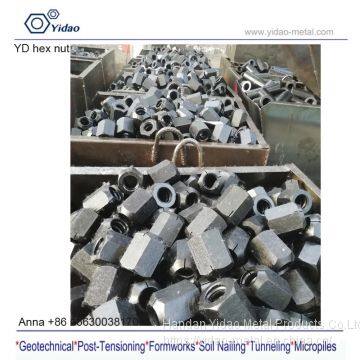

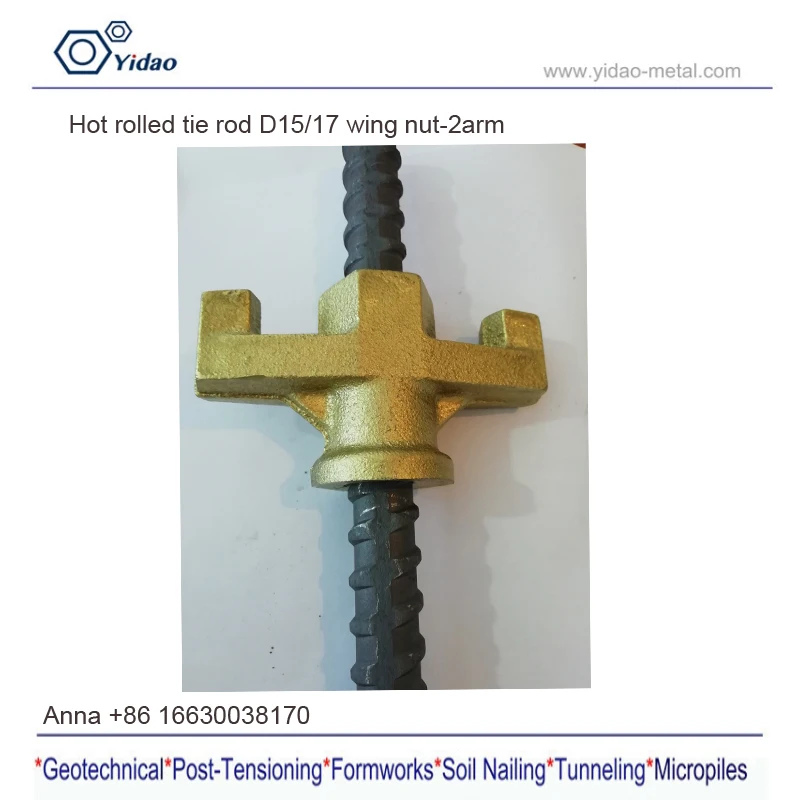

2 YD wing nut
in Cast Iron is made by high strength steel grade material.
It can be in different types and shape customized as your demand
Load force over 190kN.
in Cast Iron is made by high strength steel grade material.
It can be in different types and shape customized as your demand
Load force over 190kN.
2 YD Wing nut. It can be in different types and shape customized as your demand
Load force over 190kN.
Load force over 190kN.
3 Package
Formwork accessory anchor nuts are packed in bags, wooden box, or pallets as your request.
Cutting length as your demand
