- Handan Yidao Metal Products Co.,Ltd
- Main products: Formwork tie rods D15/17mm, formwork and scaffolding accessories, tie rod construction formwork, screw thread steel bar, wing nut , water stopper for tie rod, mushroom nut , domed nut, coupler, anchor plate, hot rolled thread steel bar, post-tensioning bar, nut
Home > Products > Formwork tie rod and scaffolding accessories > screw thread steel bar D15/17mm tie rod formwork accessories scaffolding
screw thread steel bar D15/17mm tie rod formwork accessories scaffolding
USD $1 - $2
/ Meter
1 Meter(Min.Order)
- 50000 Long Ton / Long Tons per Month
- tianjin
- T/T
- 3 days
You May Like
-
M15-M50 carbon steel couplers, anchor nut etc
-
anchor nut/anchor steel plate Q235 used soil nailing, rock bolts, anchoring, micropiles and tie rods
-
PSB930 1080 post tensioning bar high strength thread steel bar D15-50
-
M15-50 forged domed achor nut for hot rolled threaded steel bar
-
High strength full thread steel bar/ post tensioning bar
-
Formwork accessaries Adjustable ringlock tie rod anchor nut15/17mm
Product Details
| Brand Name | YD | Place of Origin | China | |
| Model Number | YD-01 |
Product Description

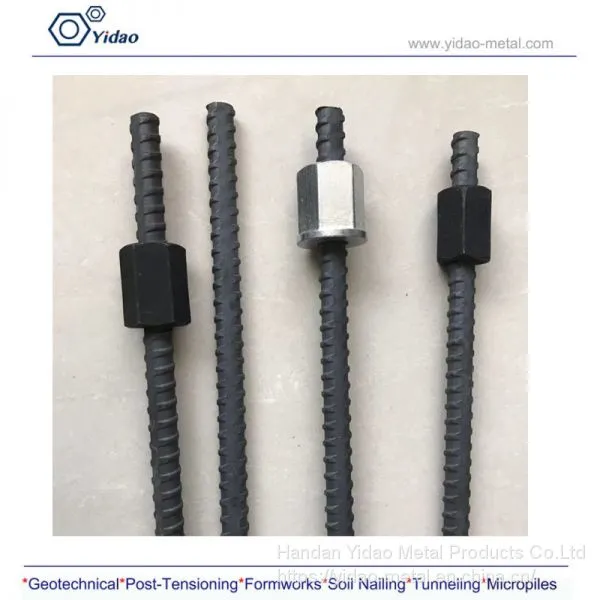

tie rod construction formwork D15/17mm scaffolding accessories

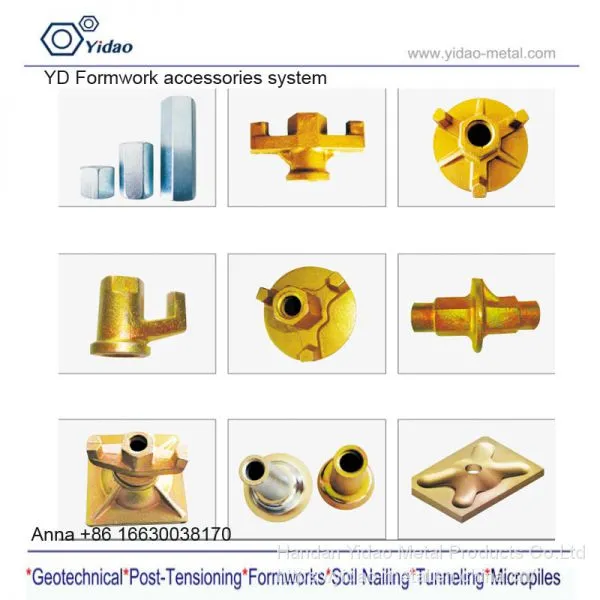

1 Basic description
| Part Name | Specification | Weight (kg) | Remark |
Tie-rod | D15/17 | 1.4 kg/m | L=6m;Special length available upon request. |
Wing nut | D15 | 0.35 | For tie-rod D15 17 |
Super plate | D15 | 1.28 | Used in case of tie-rod and formwork panels are not vertical. |
3-lug wing nut | D15 | 0.97 | For tie-rod D15; |
Waling plate | 120 x 120 x 6, Φ19 120 x 120 x 8, Φ19 | 0.65 0.85 | For tie-rod and nut D15; galvanized |
Water stopper | D15 | 0.55 | Used in water resistant wall;With tie-rod D15/17 |
Anchor plate | D20 | 0.95 | Embedded in concrete as lost part |
SGS test report for tie rod. load force over 190kN

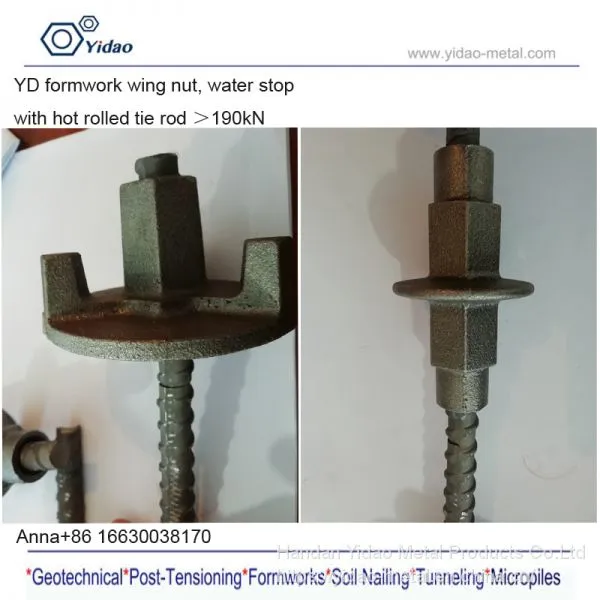

2 YD wing nut
in Cast Iron is made by high strength steel grade material.
It can be in different types and shape customized as your demand
Load force over 190kN.
in Cast Iron is made by high strength steel grade material.
It can be in different types and shape customized as your demand
Load force over 190kN.
2 YD Wing nut. It can be in different types and shape customized as your demand
Load force over 190kN.
Load force over 190kN.
3 Package
Formwork accessory anchor nuts are packed in bags, wooden box, or pallets as your request.
Cutting length as your demand
