Application industry:
Chemical industry
Oil gas industry
Power/sea water industry
Specification
Size Range:3/8" to 2"
Pressure Range :Class150~Class600,1.6MPa~4.0MPa
Body Material : Bronze
Connect Method :NPT, NPTF, NPSM, UNSF, BSP, BSPT for selecting
Work Temperature:-20 to 120° C
Design standard:ASME B16.34,API6D
Test and Inspect:API598
Face to Face:ASME B16.10
Medium :Water ,oil ,gas ,water,sea water
Driving method : Handle
Benefits
1.Valve is friendly, quick and easy to install.
2.Manufactured with full bore or necking structure, the one-piece floating ball valve, two-piece floating ball valve and three-piece floating ball valve are all available from us.The two-piece valve is recommended for many applications.
3.The lever handle provides convenient quarter-turn operation and bubble-tight shutoff
Introduction：

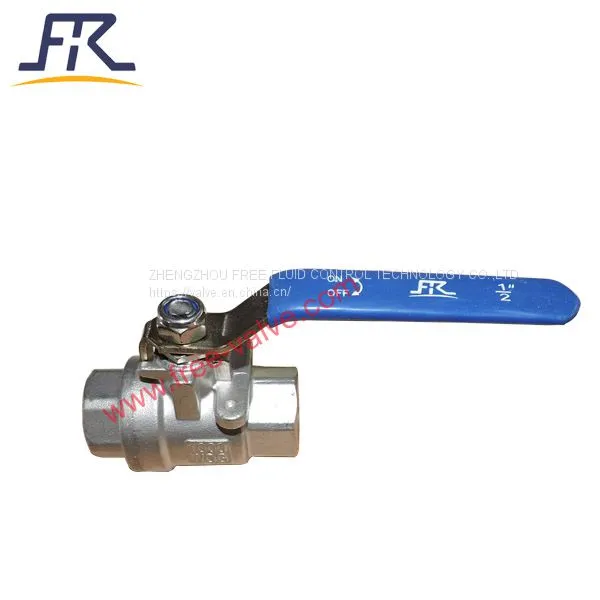

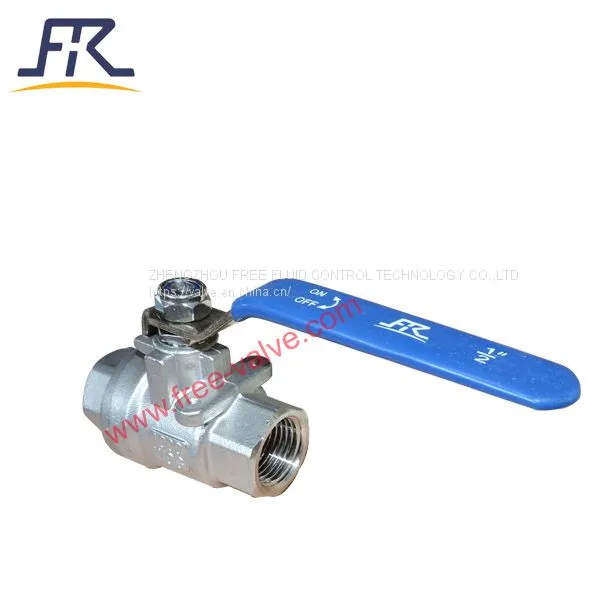

FREE-VALVE’s full port bronze floating ball valve body is manufactured from aluminum bronze.The valve with a bronze or stainless steel blow out-proof stem. With the full port design and brass ball, the ball valve allows maximum flow and minimum pressure drop or turbulence with unobstructed bi-directional flow,so FREE-VALVE’s bronze ball valve is a better choice for any bronze valve needs.
