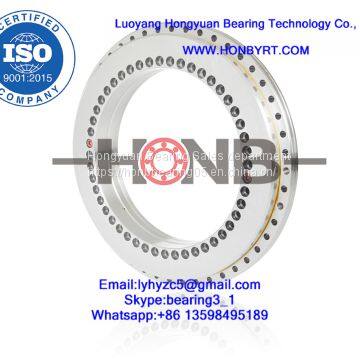

Help CenterYRT460 YRT High Precision Axial and Radial Bearings Manufacturers
Related Products
-
Turnable Slewing Bearing YRT850 850*1095*124mmEUR 1 - 10000MOQ: 1 Piece -
High Quality Big Size Precision YRT1200 Roller Bearings 1200*1490*164mmEUR 1 - 10000MOQ: 1 Piece
-
YRTS200 Higher Speed Axial and Radial BearingsEUR 1 - 10000MOQ: 1 Piece
-
ZKLDF100 Axial and Radial Angular Contact Ball Bearings100*185*38mmEUR 1 - 10000MOQ: 1 Piece
-
ZKLDF Series Turntable Bearings in Stock ZKLDF150EUR 1 - 10000MOQ: 1 Piece
YRT basic rotary table Bearings are designed with a radial full roller, two groups of axial needle Roller, cage assembly, an out ring, a L-section Inner ring and the second ring. the out ring and inner ring have fixing holes. Added preload after fitting simplified the unit construction,Shorten the work of fixing, Lowered the high on fixing. so this kind of bearing is particularly suitable for the situatin of High precision, high stiffness and the Union loads with low speed such as index tables and revolving milling heads.See Fig
*this kind of Bearing have axial and radial running precision for your chosen.(HONBbearing05)
Contact person: Anna Feng
Fax:+86 379 63086177
Whatspp: +86 13598495189
Skype: bearing3_01
Website:
Model:YRT460
ID(Inner diameter):460mm
OD(Outer diameter):600mm
Thickness(Height):70mm
Axial dynamic load rating(Ca):355KN
Axial static load rating(Coa):2800KN
Raial dynamic load rating(Cr):200KN
Raial static load rating(Cor):765KN
Limiting speed:120r/min
Bearing friction torque:70Nm
Mass(Weight):45KG
| Type | size | fixing hole | |||||||||||||
| d | D | H | H1 | H2 | C | d1 | dn | dm | inner ring | outer ring | |||||
| unit：mm | do | ds | Ts | QTY 4) | dL | QTY 4) | |||||||||
| mm | mm | ||||||||||||||
| YRT460 | 460 | 600 | 70 | 46 | 24 | 22 | 560 | 482 | 580 | 10 | 15 | 8.2 | 46 | 10 | 45 |
| Type | Screw connection QTY | Connect screws holes | Pitch1）t | Tightening torque of screw | Basic load rating | Limited speed5） | Friction Moment3） | weight | ||||
| Axial | Radial | |||||||||||
| Dynamic | Static | Dynamic | Static | |||||||||
| MA2） | Ca | Coa | Cr | Cor | Grease | |||||||
| G | QTY | QTYXt | N m | KN | r/min | Nm | ≈Kg | |||||
| YRT460 | 2 | M12 | 3 | 48*7.5° | 34 | 355 | 2800 | 200 | 765 | 120 | 70 | 45 |
